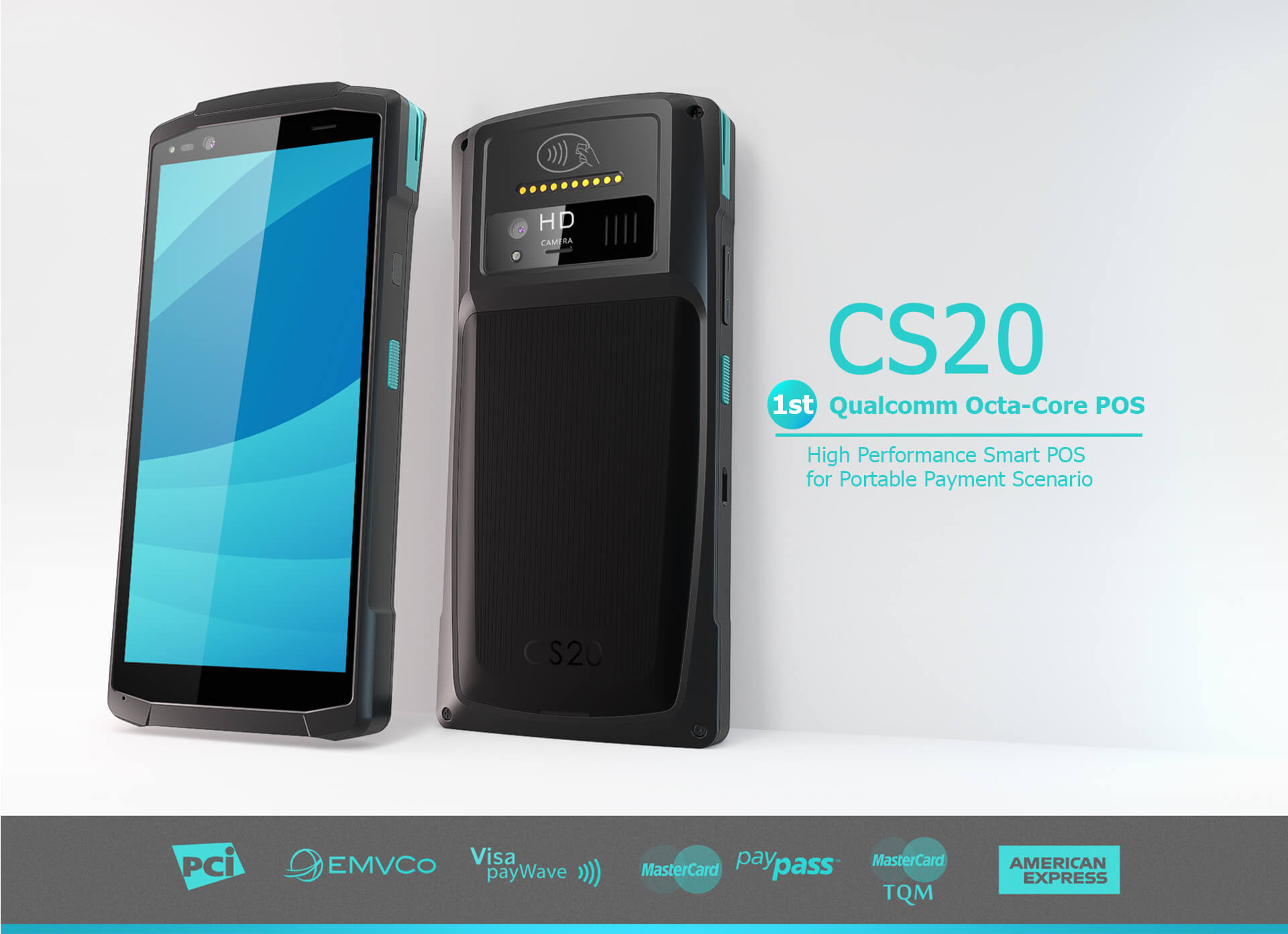

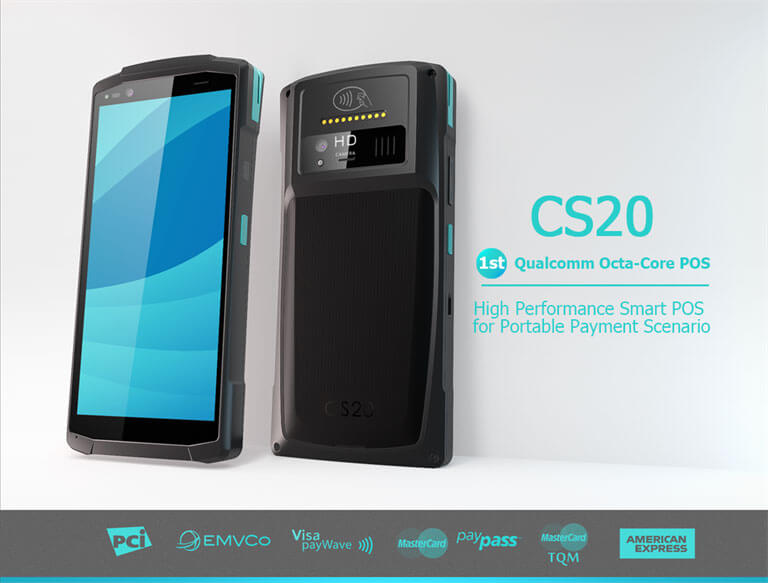

CS20 Smart POS Machine

Powerful Performance for Accelerating Business

High-performance hardware specifications for professional use

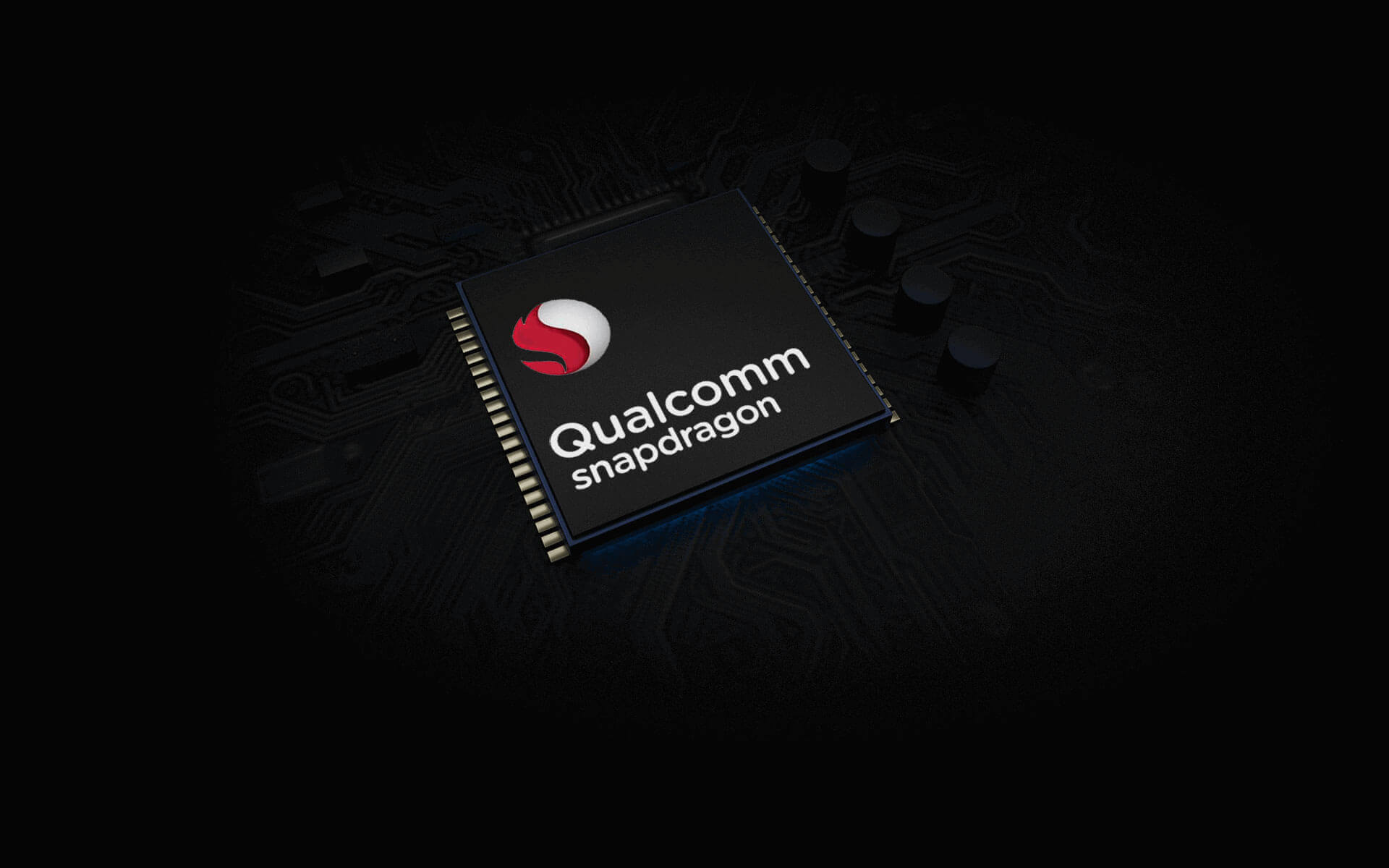

Qualcomm Processor

Qualcomm Processor

Qualcomm
Octa-Core ARM
Cortex-A53 1.8GHz

Security OS

Security OS

Security OS 10.0
based on Android 10.0

Memory Specifications

Memory Specifications

2G RAM + 16G ROM

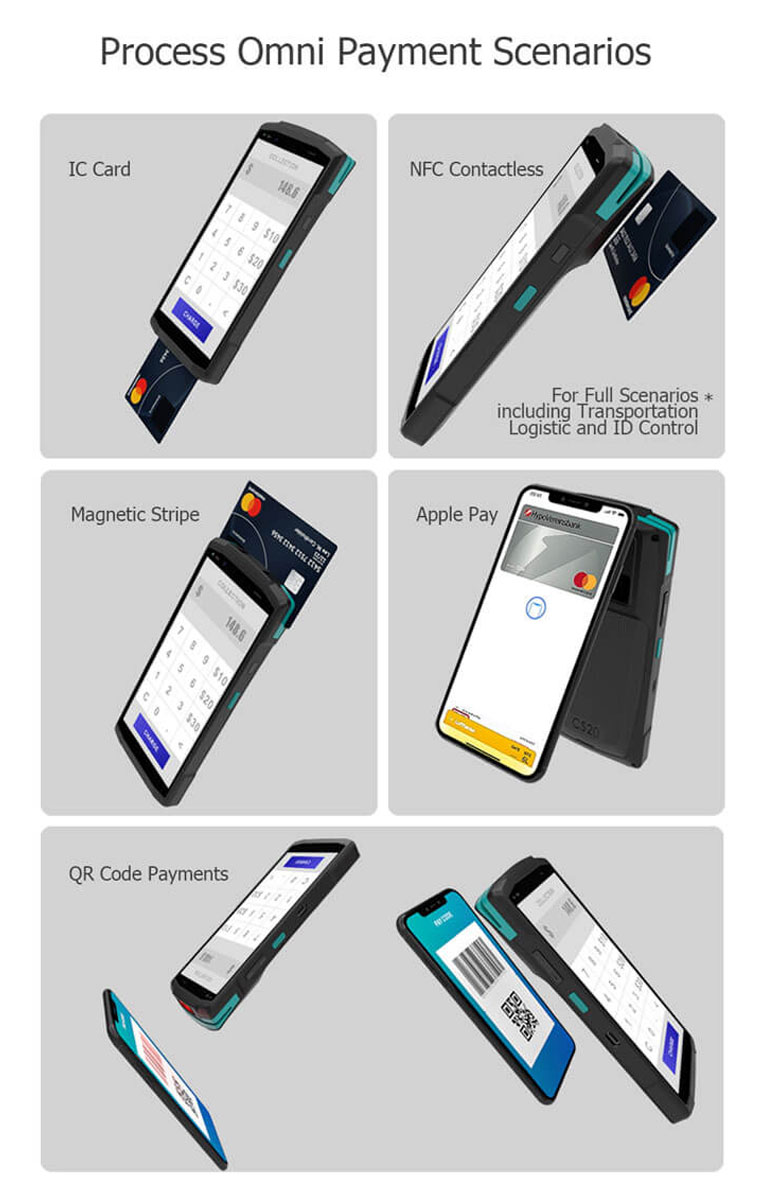

Process Omni Payment Scenarios

Support all major payment methods for comprehensive transaction processing

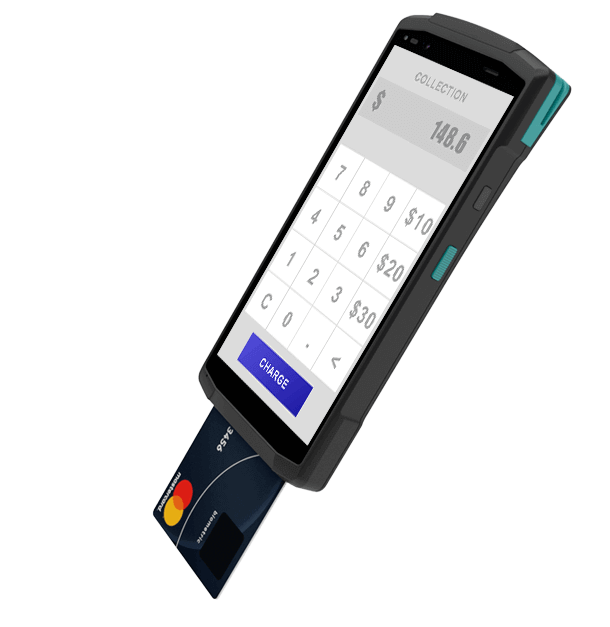

IC Card Payment

IC Card

Secure chip card processing

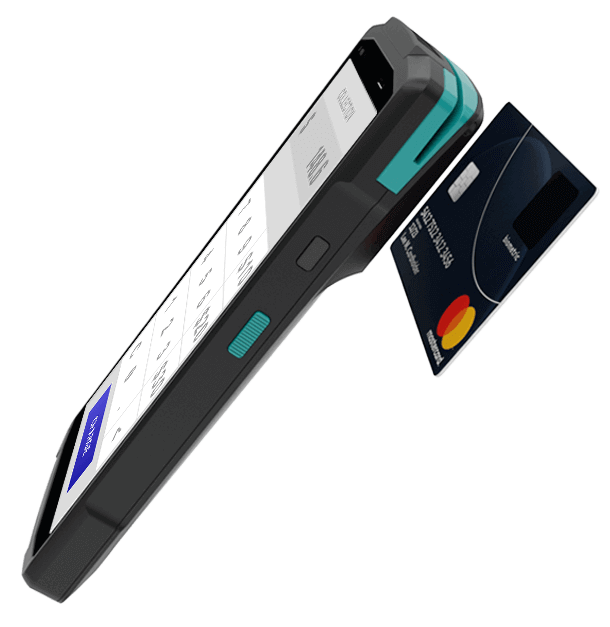

NFC Contactless Payment

NFC Contactless

For full scenarios including Transportation, Logistics and ID Control

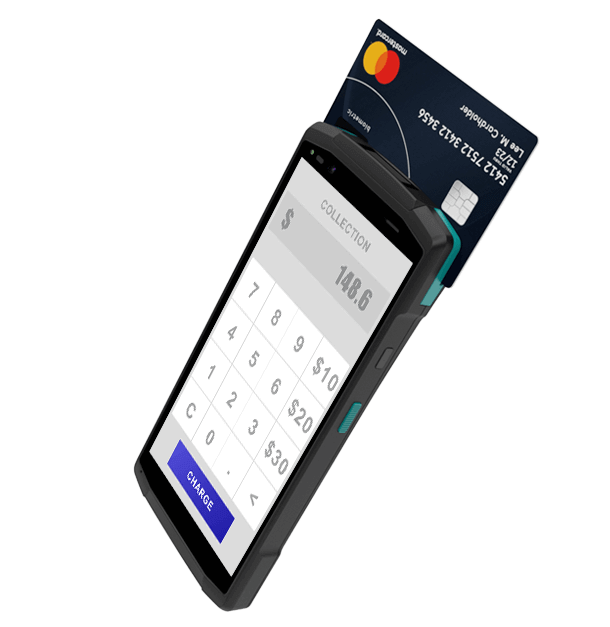

Magnetic Stripe Card

Magnetic Stripe

Traditional swipe card support

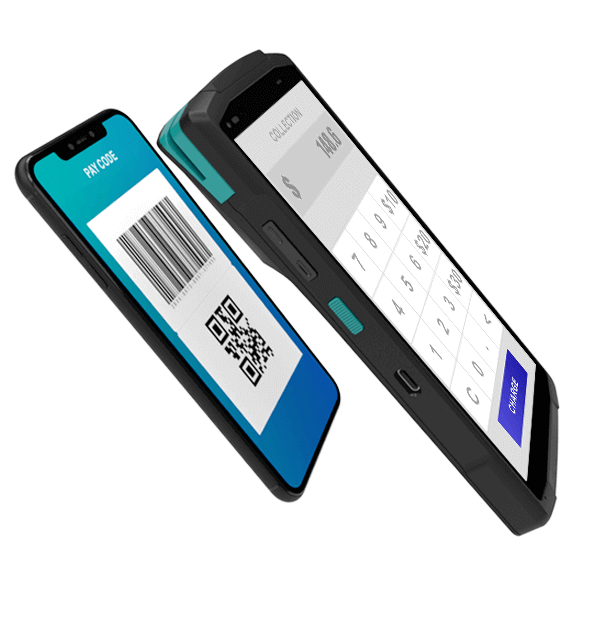

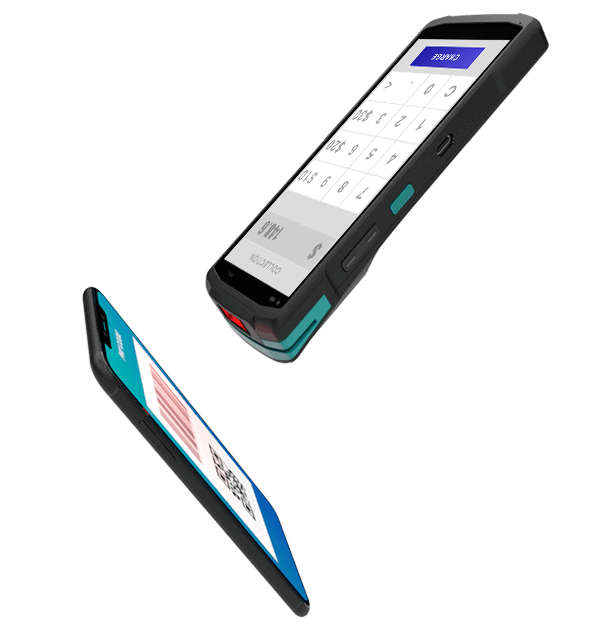

QR Code Payment 1 QR Code Payment 2

QR Code Payments

Mobile payment solutions

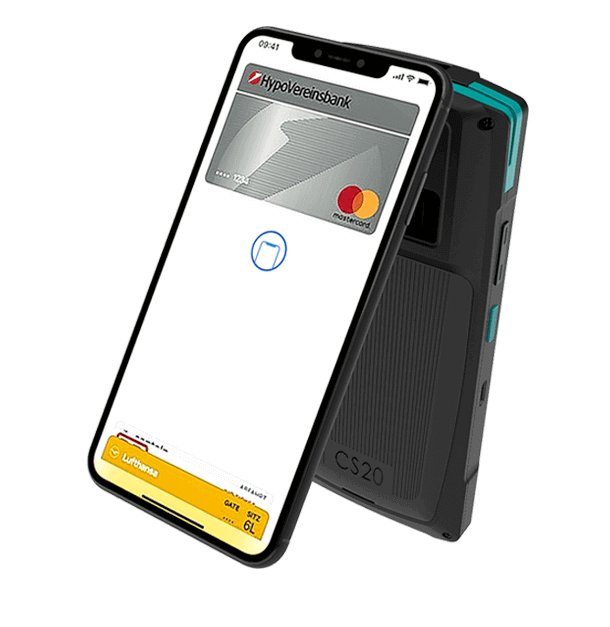

Apple Pay

Apple Pay

Contactless mobile payments

Full Communication Capabilities

Comprehensive connectivity options for seamless business operations

Wi-Fi

Wi-Fi

2.4GHz / 5GHz

Mobile Communications

Communications

4G / 3G / 2G

Bluetooth

Bluetooth

Bluetooth 4.2

Type C Port

Type C×1

PSAM Slot

PSAM×2

SIM Card Slot

SIM Card Slot×1

E-SIM

E-SIM (optional)

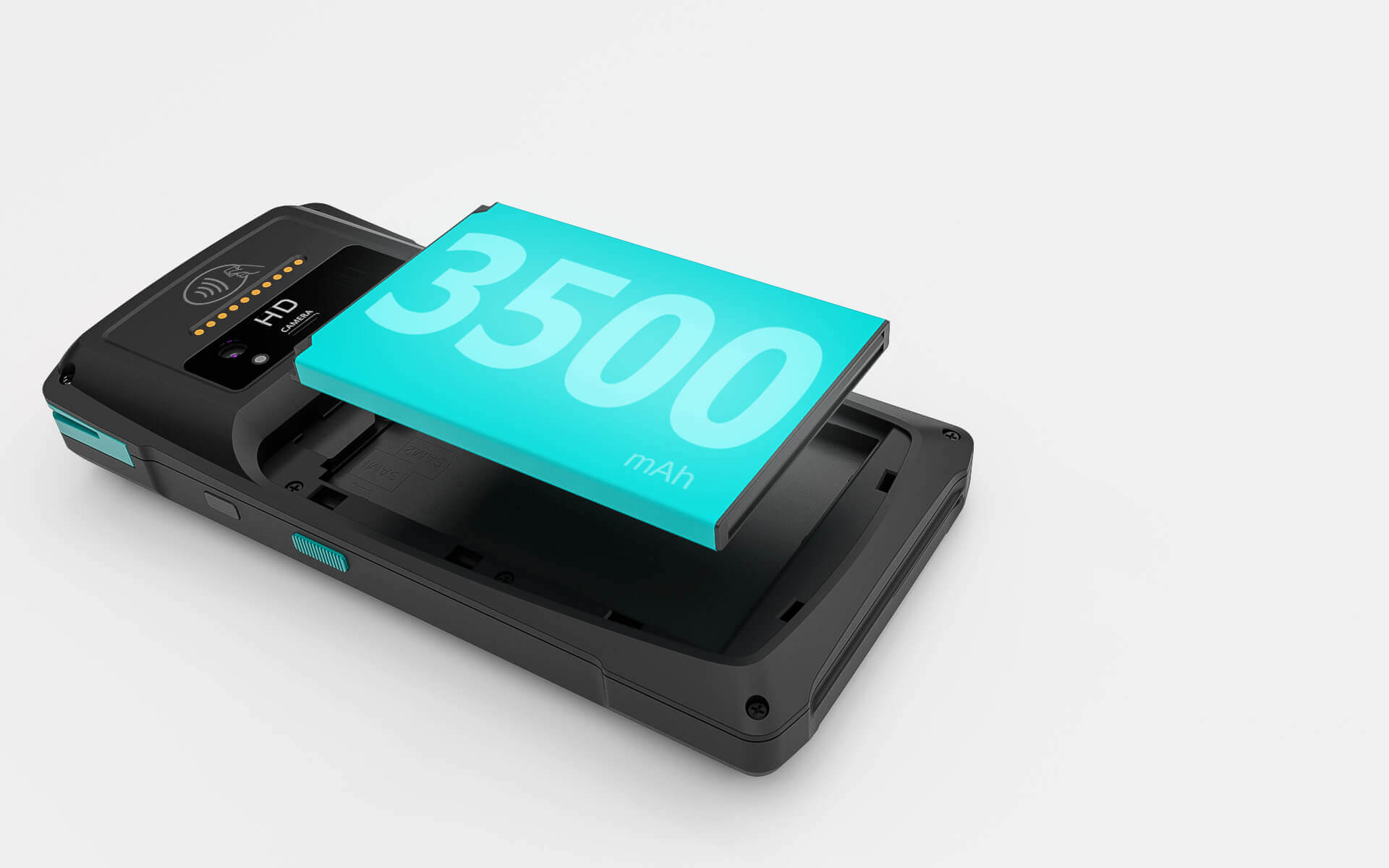

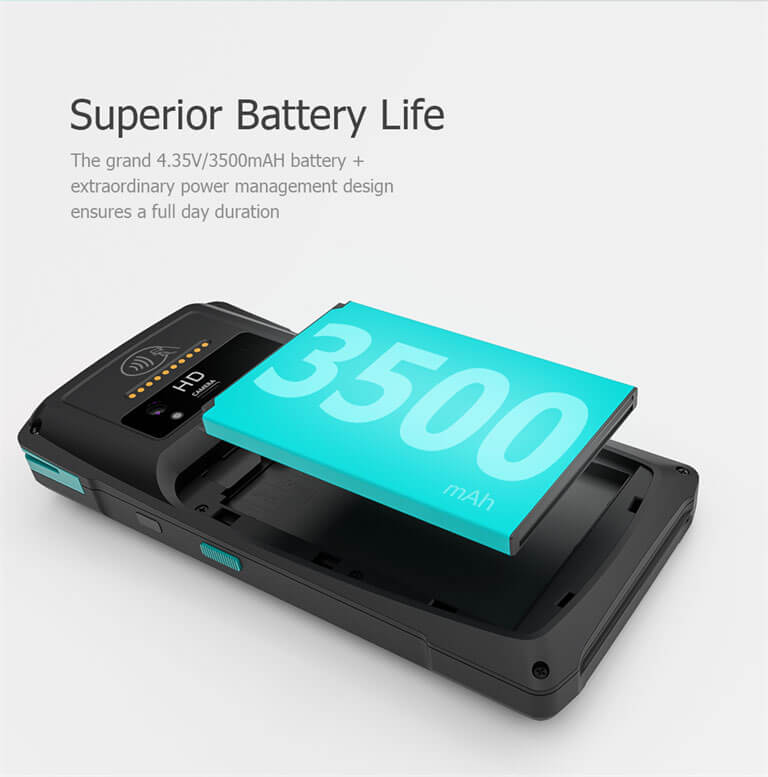

Superior Battery Life

Superior Battery Life

The grand 4.35V/3500mAH battery + extraordinary power management design ensures a full day duration

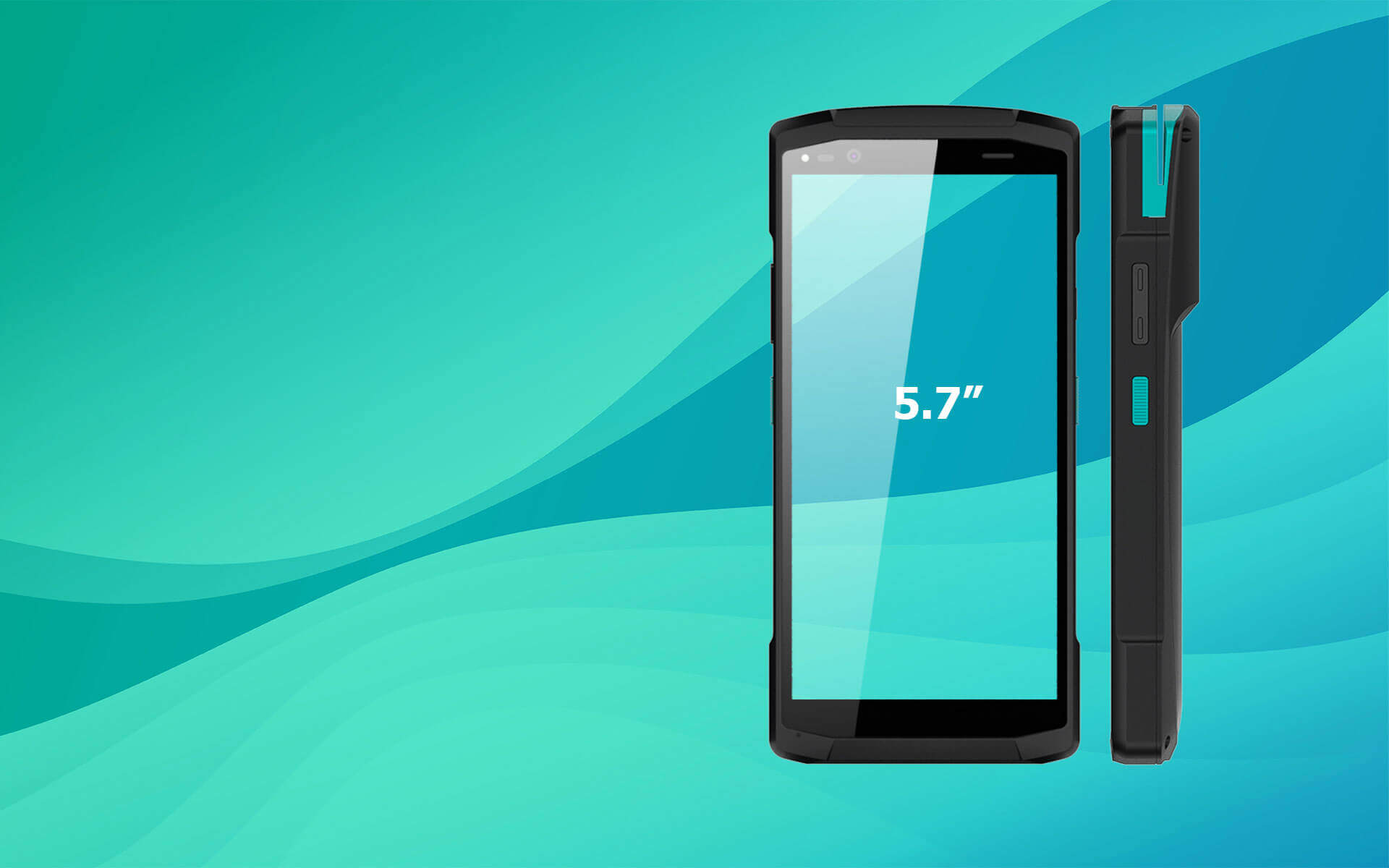

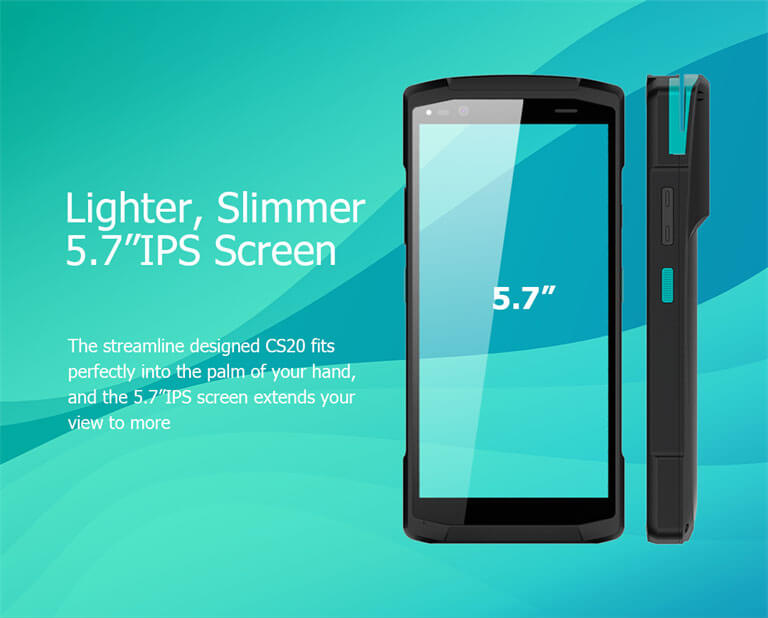

Large Screen Display

Lighter, Slimmer
5.7" IPS Screen

The streamline designed CS20 fits perfectly into the palm of your hand, and the 5.7" IPS screen extends your view to more.

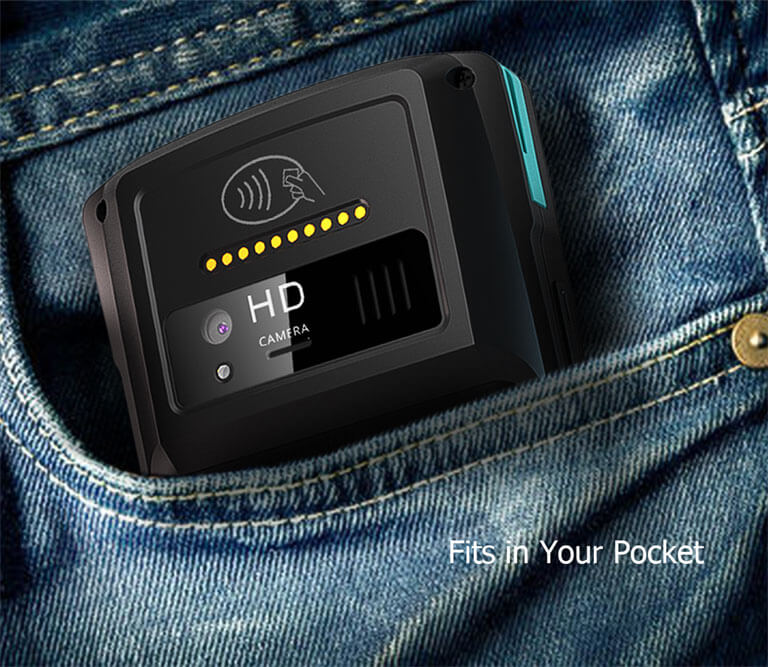

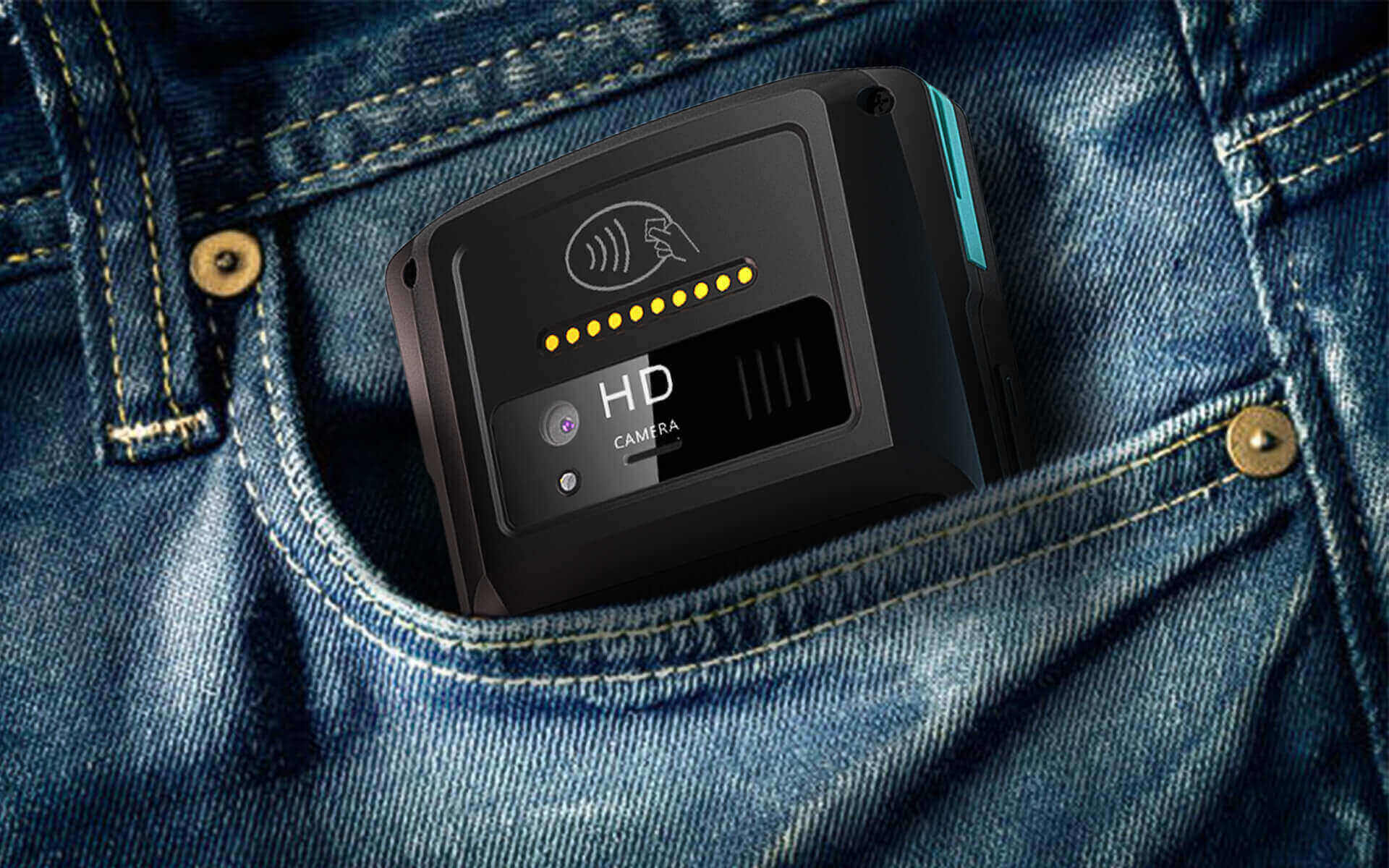

Portable POS Design

Fits in Your Pocket

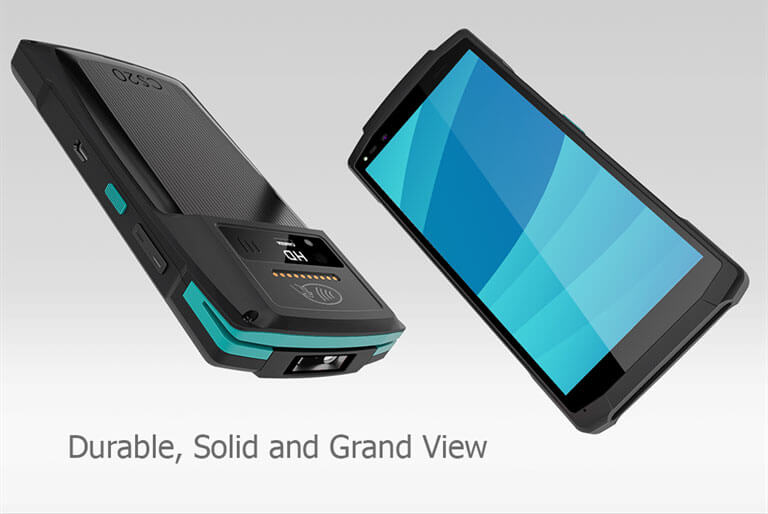

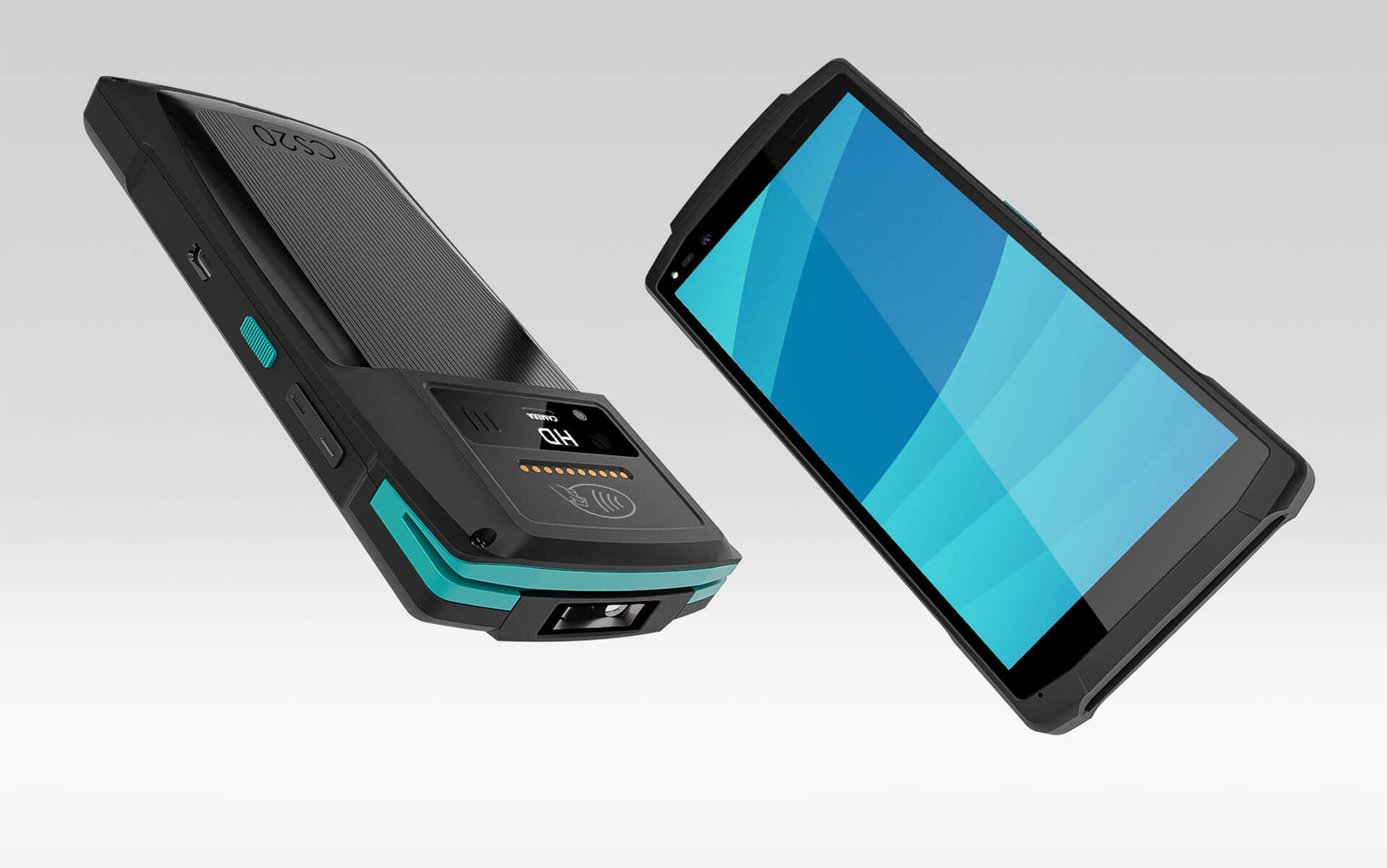

Durable Smart POS

Durable, Solid and Grand View

Technical Specifications

Comprehensive technical details for the CS20 Smart POS system

IC Card
IC Card
Magnetic Card
Magnetic Card
Contactless Card
Contactless Card
Operating System

Operating System

Android 10.0

CPU

CPU

Qualcomm OCTA-Core
ARM Cortex-A53
1.8GHz

Memory

Memory

2GB RAM + 16GB ROM

Wi-Fi

Wi-Fi

2.4GHz/5GHz
IEEE 802.11 a/b/g/n/ac

Communications

Communications

4G/3G/2G

Bluetooth

Bluetooth

Bluetooth 2.1/3.0/4.2

Interface

Interface

Type C×1
PSAM×2
SIM Card Slot×1
Micro SD×1 (up to 128G)

Battery

Battery

4.35V/3500mAH

GPS

GPS

GPS Inside

Display

Display

5.7" IPS LCD
1440×720 Resolution

Camera

Camera (Rear)

5 Megapixel AF + Flash

Charger

Charger

Input: AC 100~240V
Output: 5V/2A

Optional Configurations

Customize your CS20 with additional features and accessories

Front Camera

Camera (Front)

2 Megapixel FF

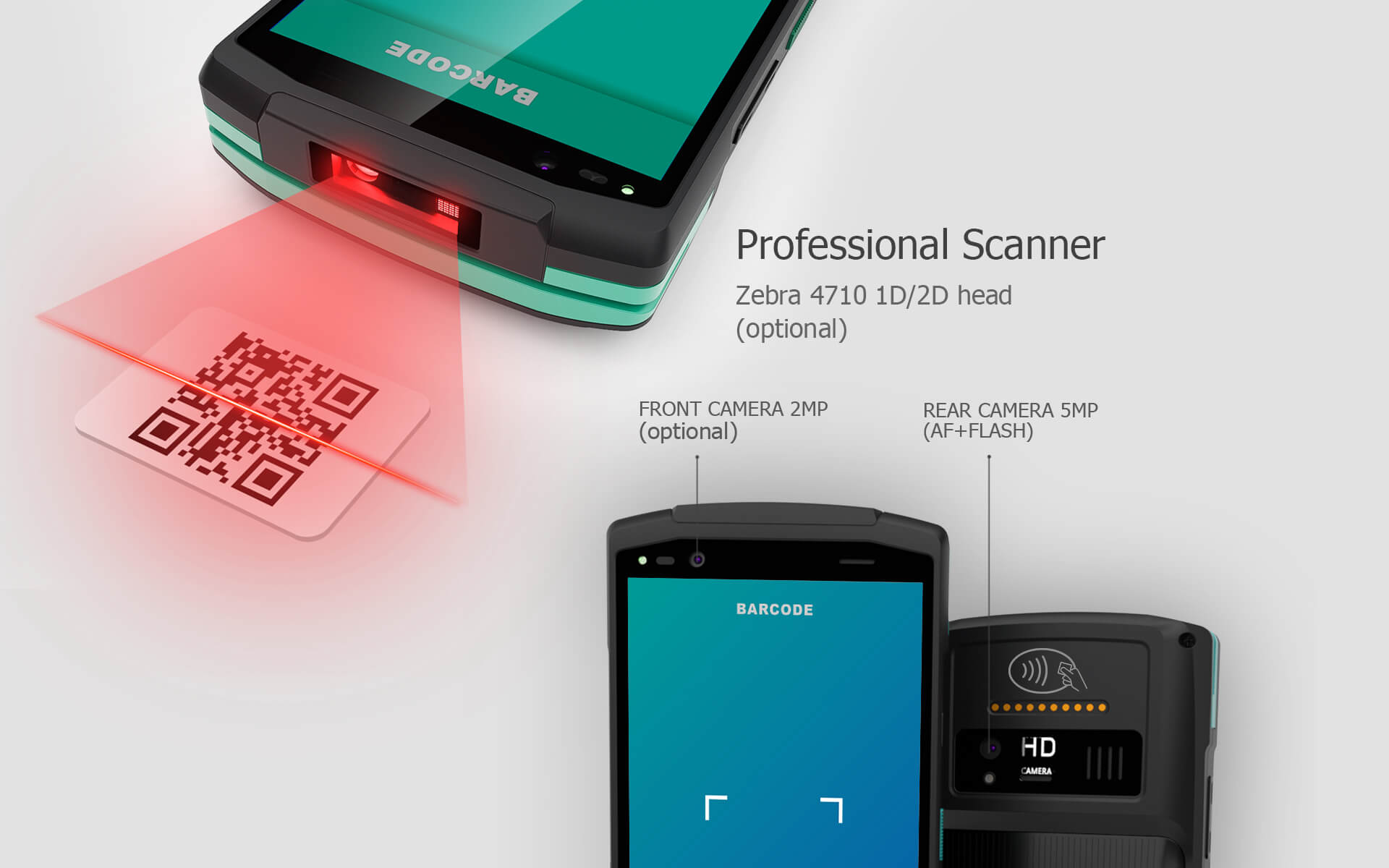

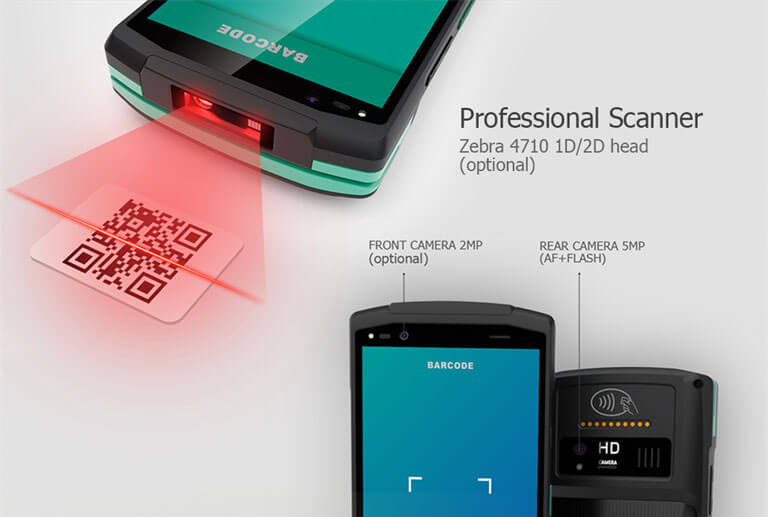

Barcode Scanner

Scanner

Professional
Zebra Scanner

Charging Cradle

Cradle

Support Fingerprint
and Printer

E-SIM Option

E-SIM

Embedded SIM solution

Application Gallery

CS20 Application 1 CS20 Application 2 CS20 Application 3 CS20 Application 4 CS20 Application 5 CS20 Application 6 CS20 Application 7 CS20 Application 8 CS20 Application 9
Inquiry

FAQ

Q1

Where has CS20 smart POS been sold?

As a portable Payment POS, it's welcomed by mobile using scenarios. CS20 has reached distributors in markets like Europe, Asia, Africa. We look forward to professional local partners worldwide!

Q2

Can I use it as a PDA?

Yes, It offers professional barcode scanner engine from Zebra, with portable design, it suits PDA applications well.

Q3

Do you have non-certified version of CS20 smart POS?

We have another version of CS20 as SoftPOS, with no payment certifications. Please contact our sales for more information.
