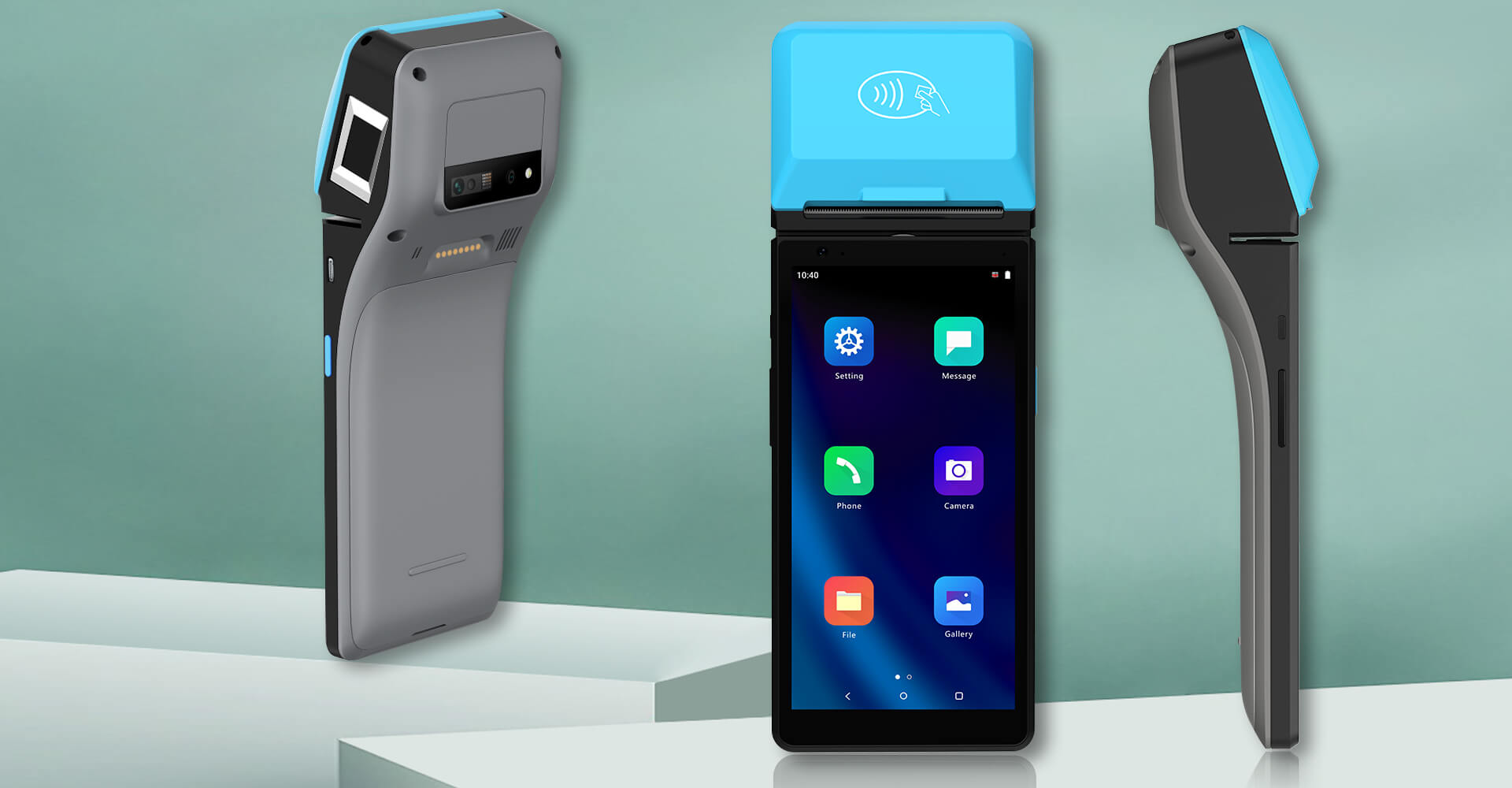

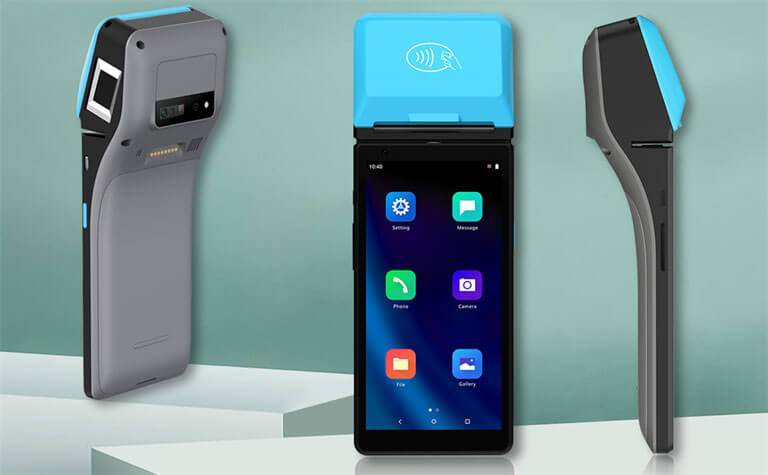

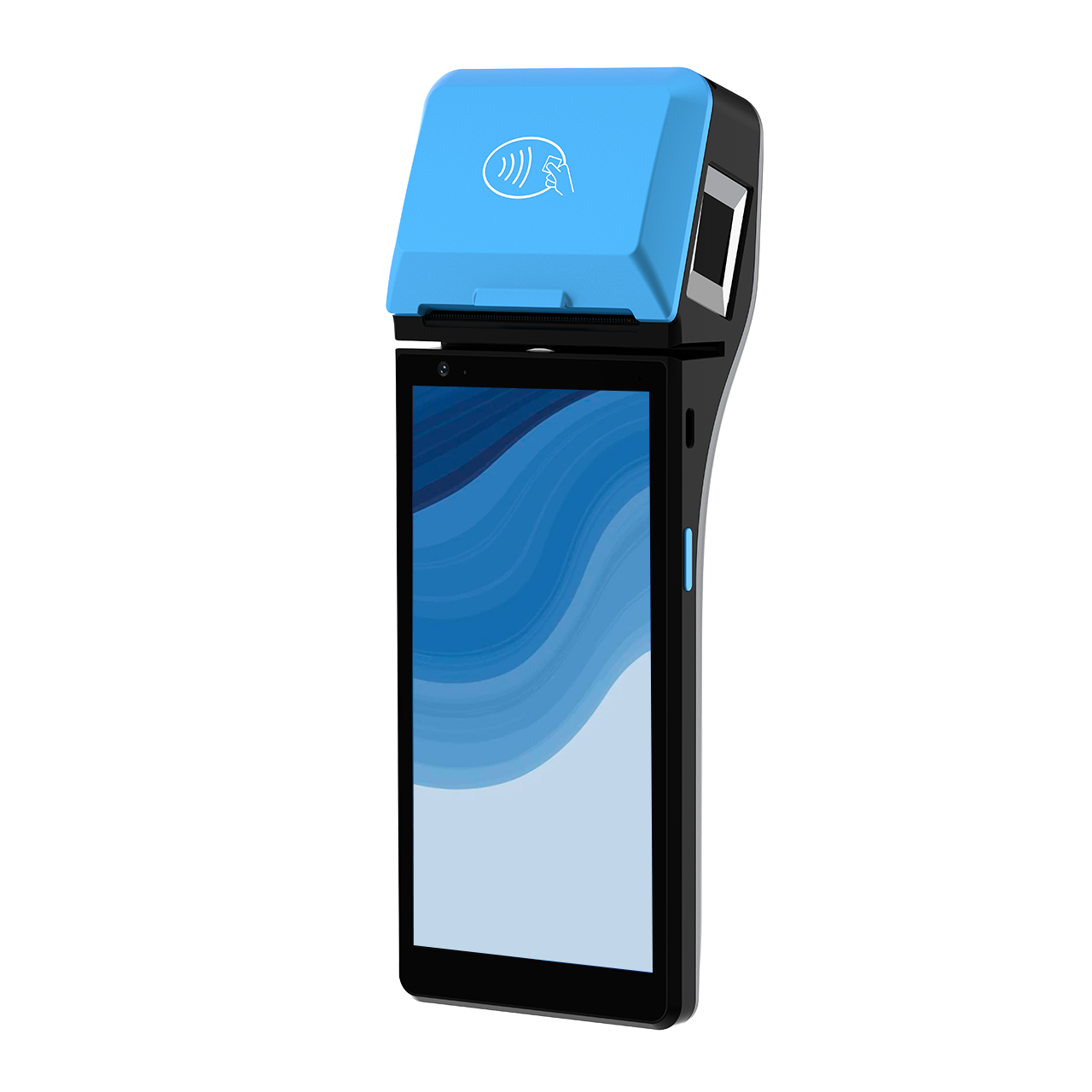

Ciontek CS50

Payment POS with Customer Display

GMS Certified Android 14 Based Safe OS

背景图

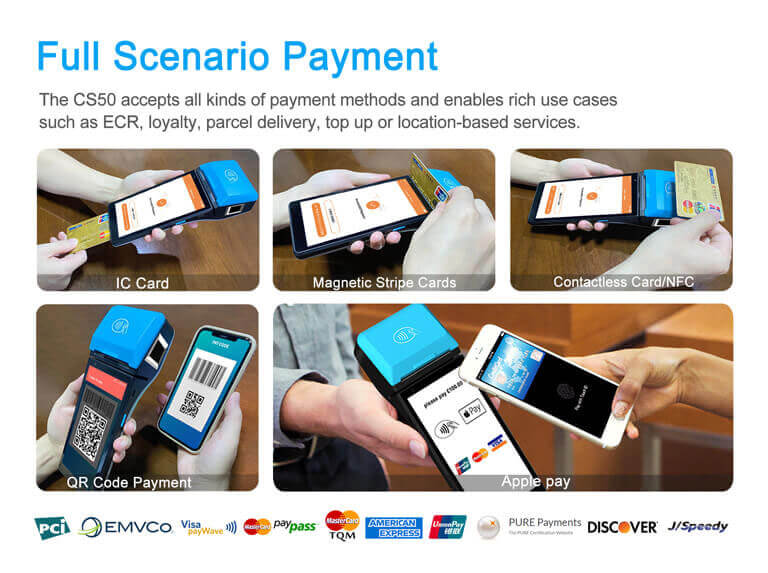

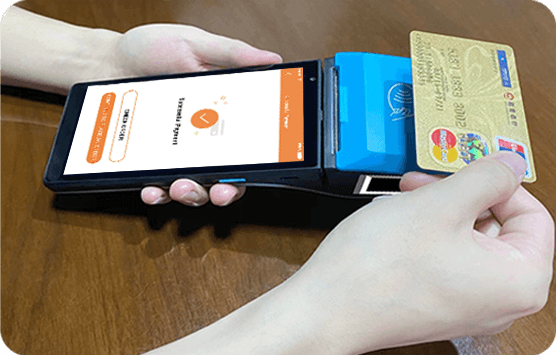

Full Scenario Payment
The CS50 smart POS accepts all kinds of payment methods and enables rich use cases such as ECR, loyalty, parcel delivery, top up or location-based services.

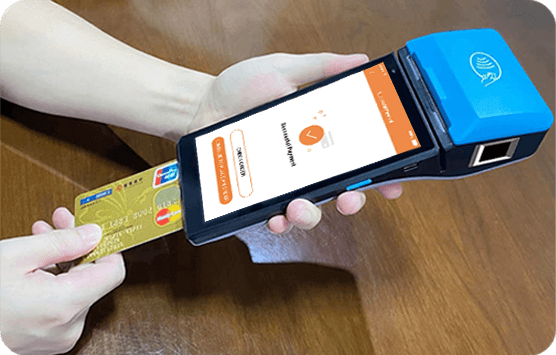

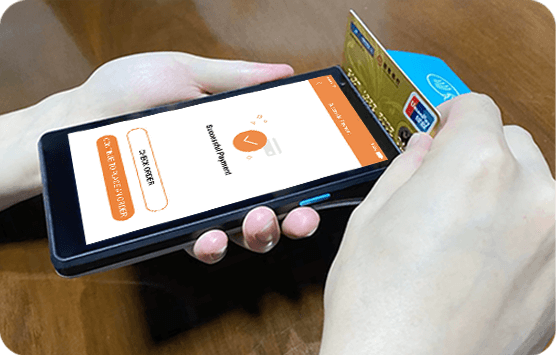

IC Card
IC Card
Magnetic Stripe Cards
Magnetic Stripe Cards
Contactless Card/NFC
Contactless Card/NFC

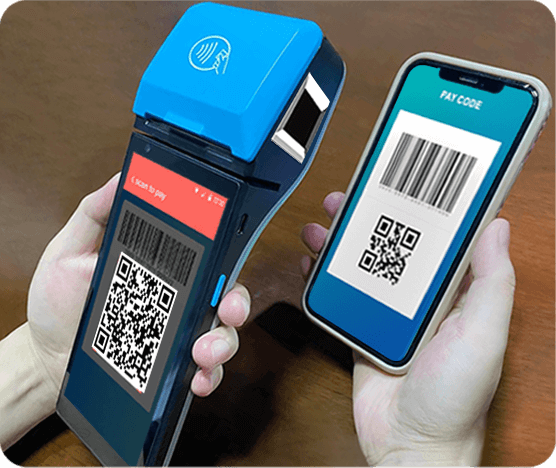

QR Code Payment
QR Code Payment

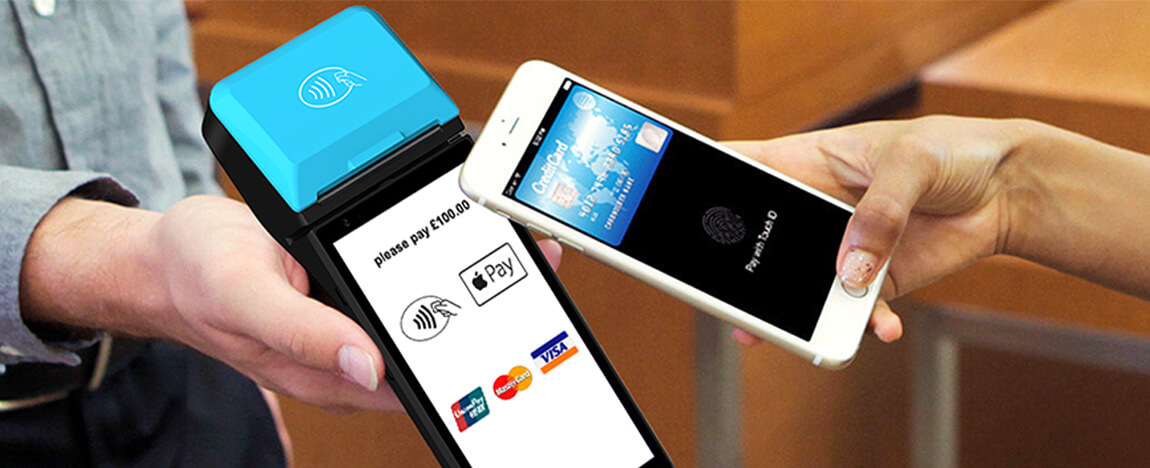

Apple Pay
Apple Pay
Extra Image
背景图

Android 14

15% higher speed Tighter user data security and privacy
Safer transition experience of Google Pay/Apple Pay/
Samsung Pay by GMS certification.

icon1 Quad-Core 2.0 GHz
icon2 2GB RAM + 16GB ROM
icon3 4G/BT/WIFI
背景图

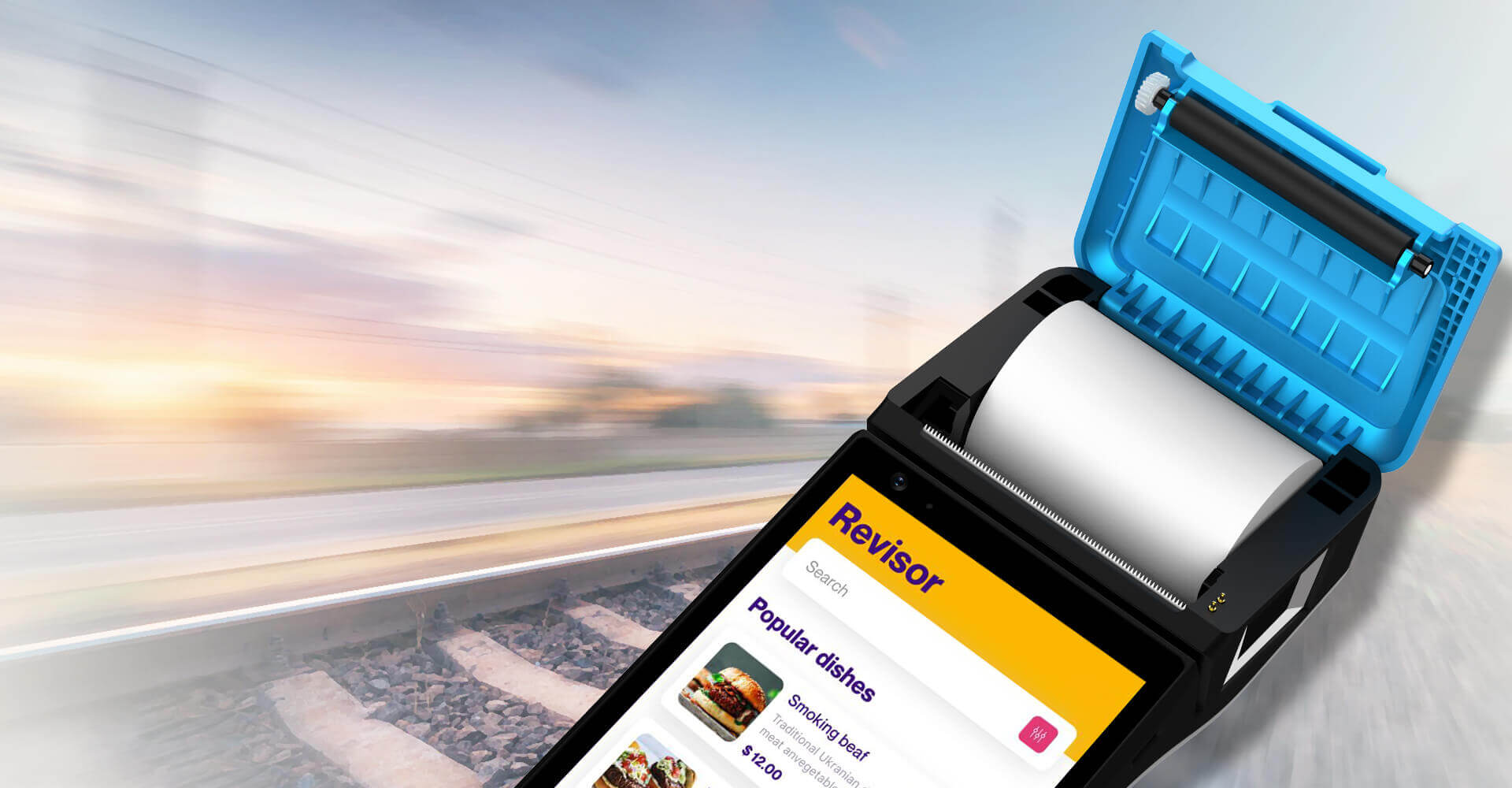

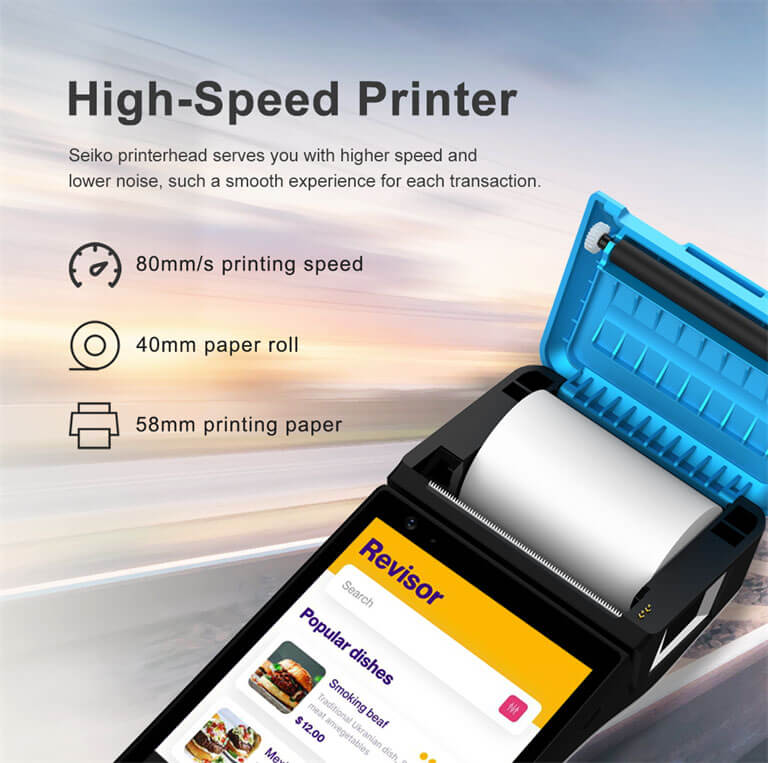

High-Speed Printer

Seiko printerhead serves you with higher speed and
lower noise, such a smooth experience for each transaction.

icon1 80mm/s printing speed
icon2 40mm paper roll
icon3 58mm printing paper
背景图

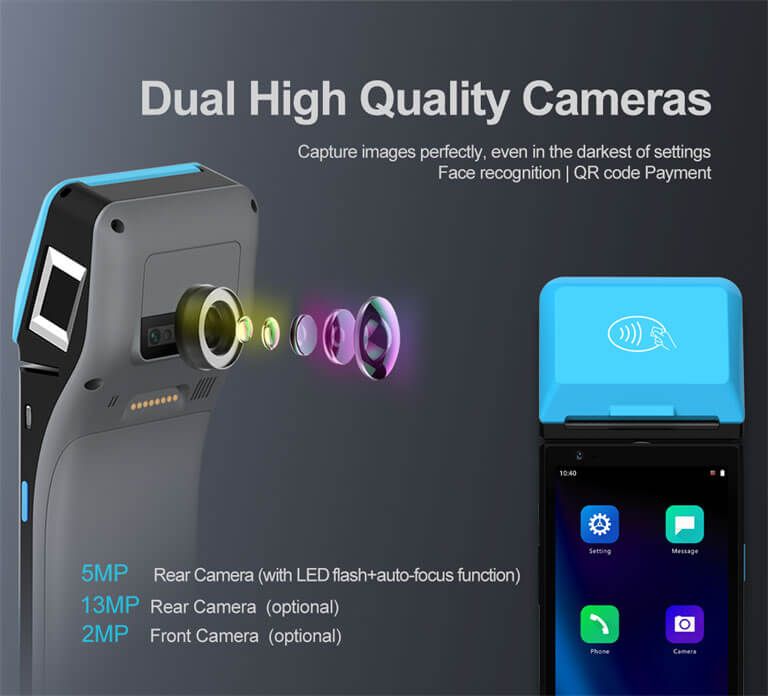

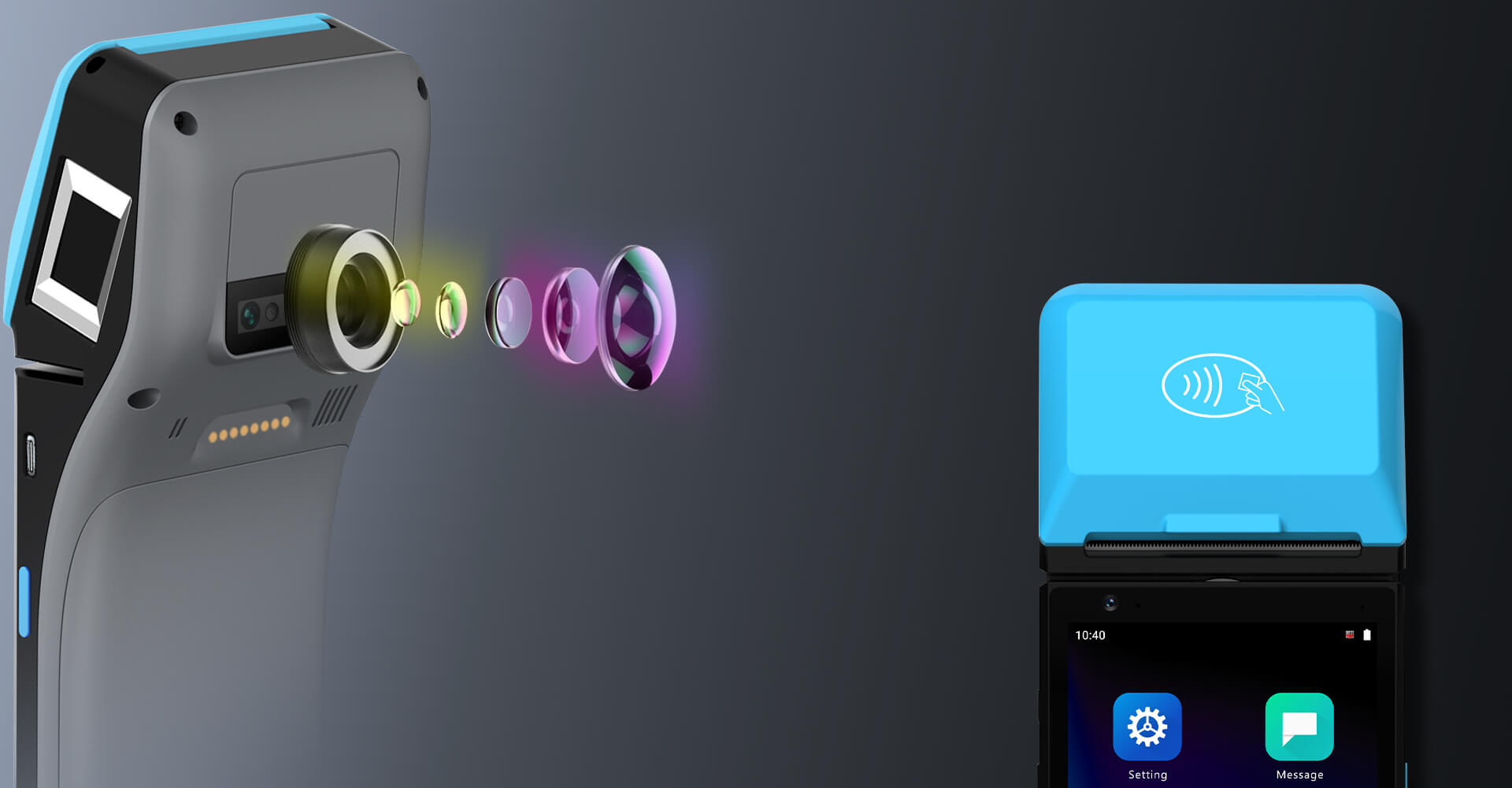

Dual High Quality Cameras

Capture images perfectly, even in the darkest of settings
Face recognition 丨QR code Payment

5MP Rear Camera (with LED flash+auto-focus function)
13MP Rear Camera (optional)
2MP Front Camera (optional)
背景图

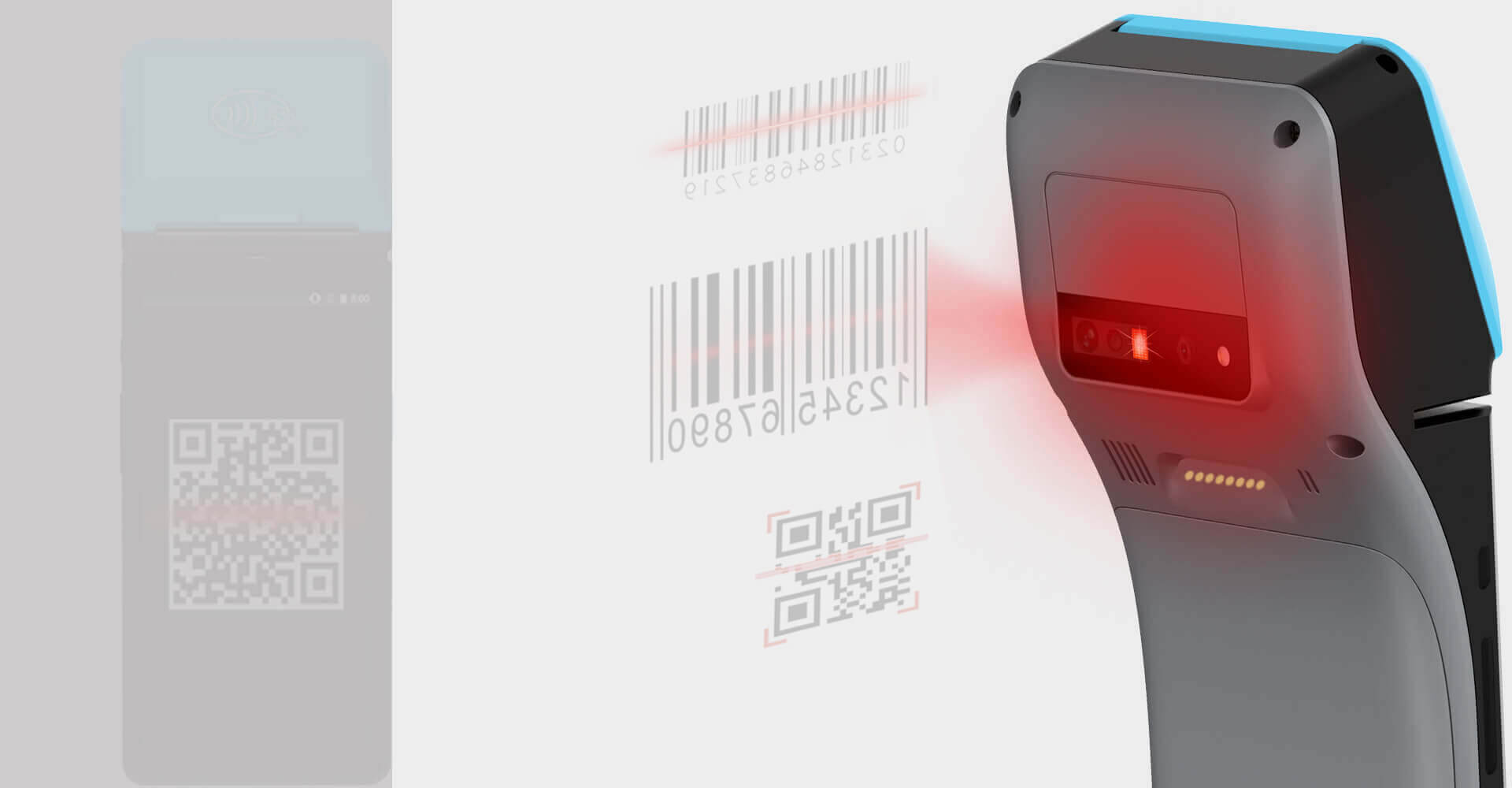

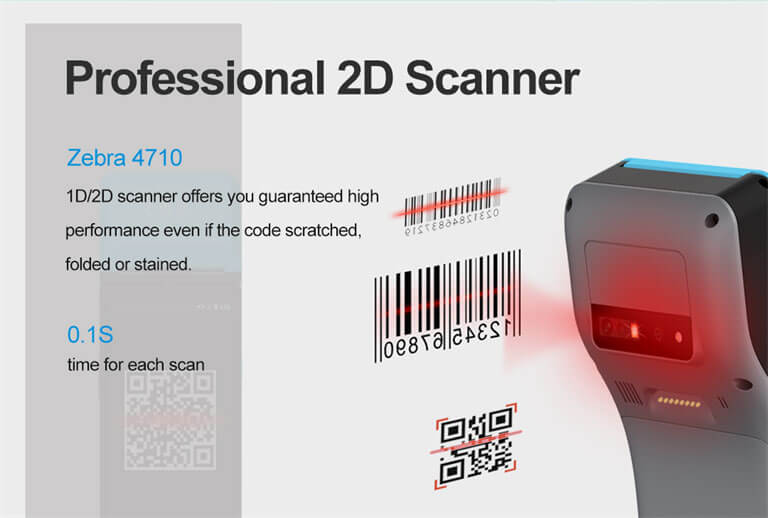

Professional 2D Scanner

Zebra 4710

1D/2D scanner offers you guaranteed
high performance even if
the code scratched, folded or stained.

0.1S

time for each scan

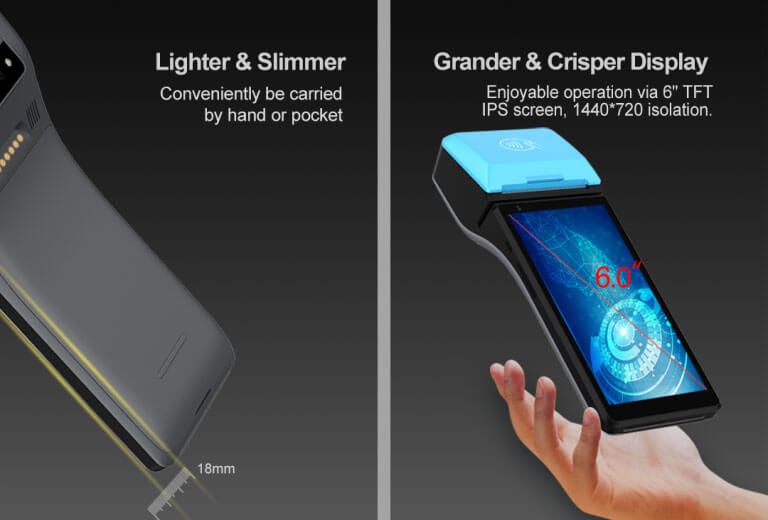

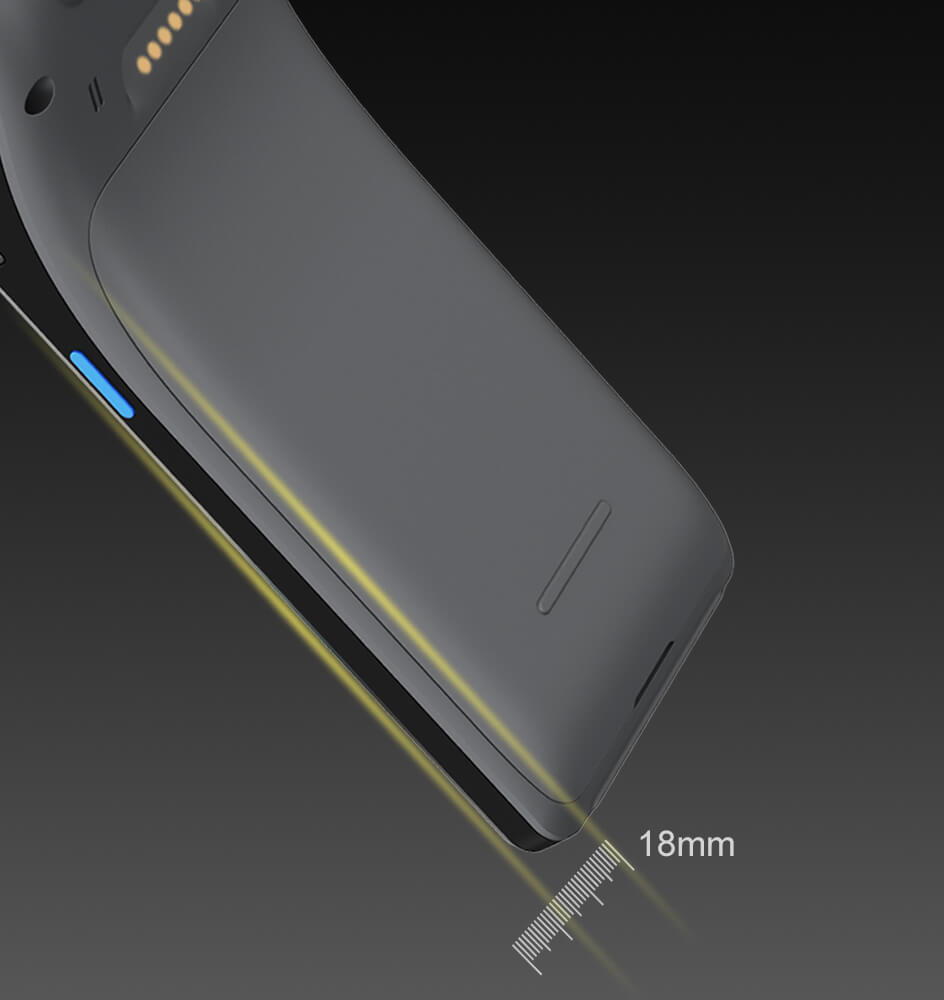

Lighter & Slimmer

Lighter & Slimmer

Conveniently be carried by hand or pocket

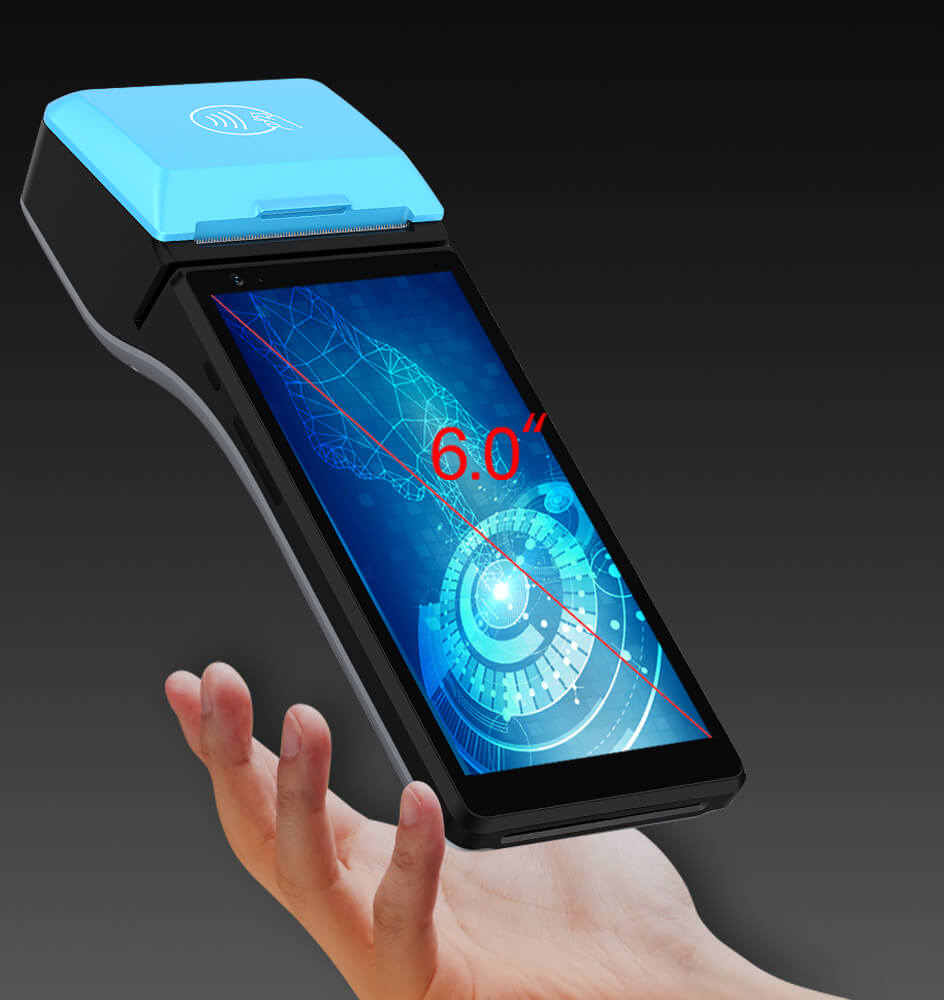

Grander & Crisper Display

Grander & Crisper Display

Enjoyable operation with a 6" TFT IPS screen, 1440×720 resolution.

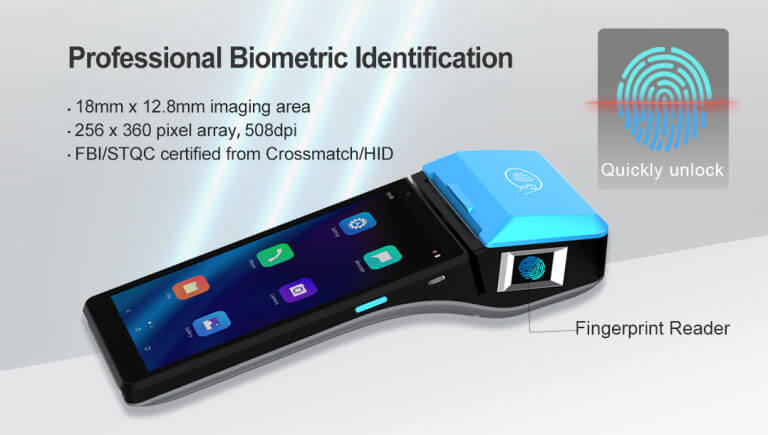

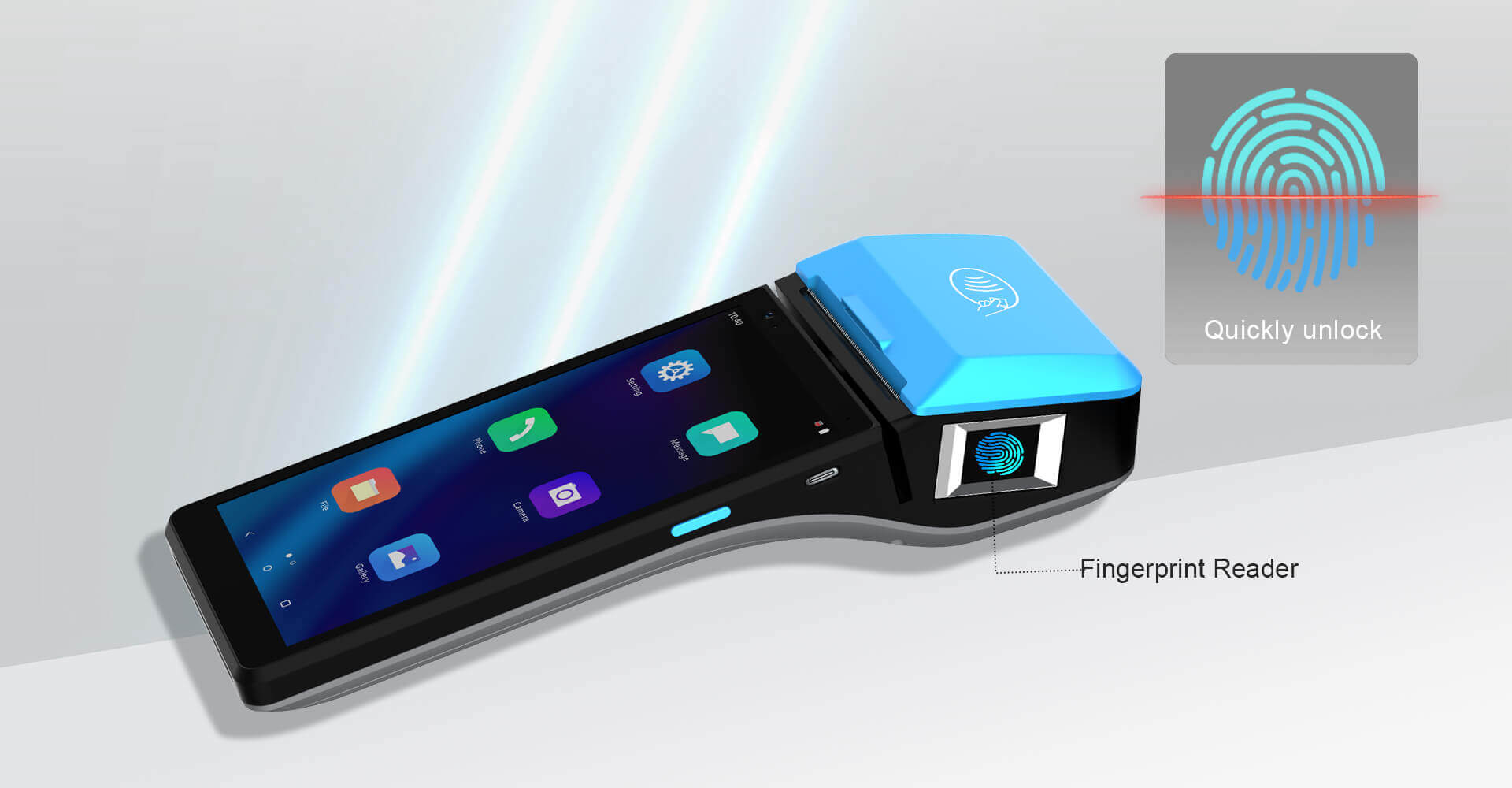

Professional Biometric Identification

Professional Biometric Identification

more-options

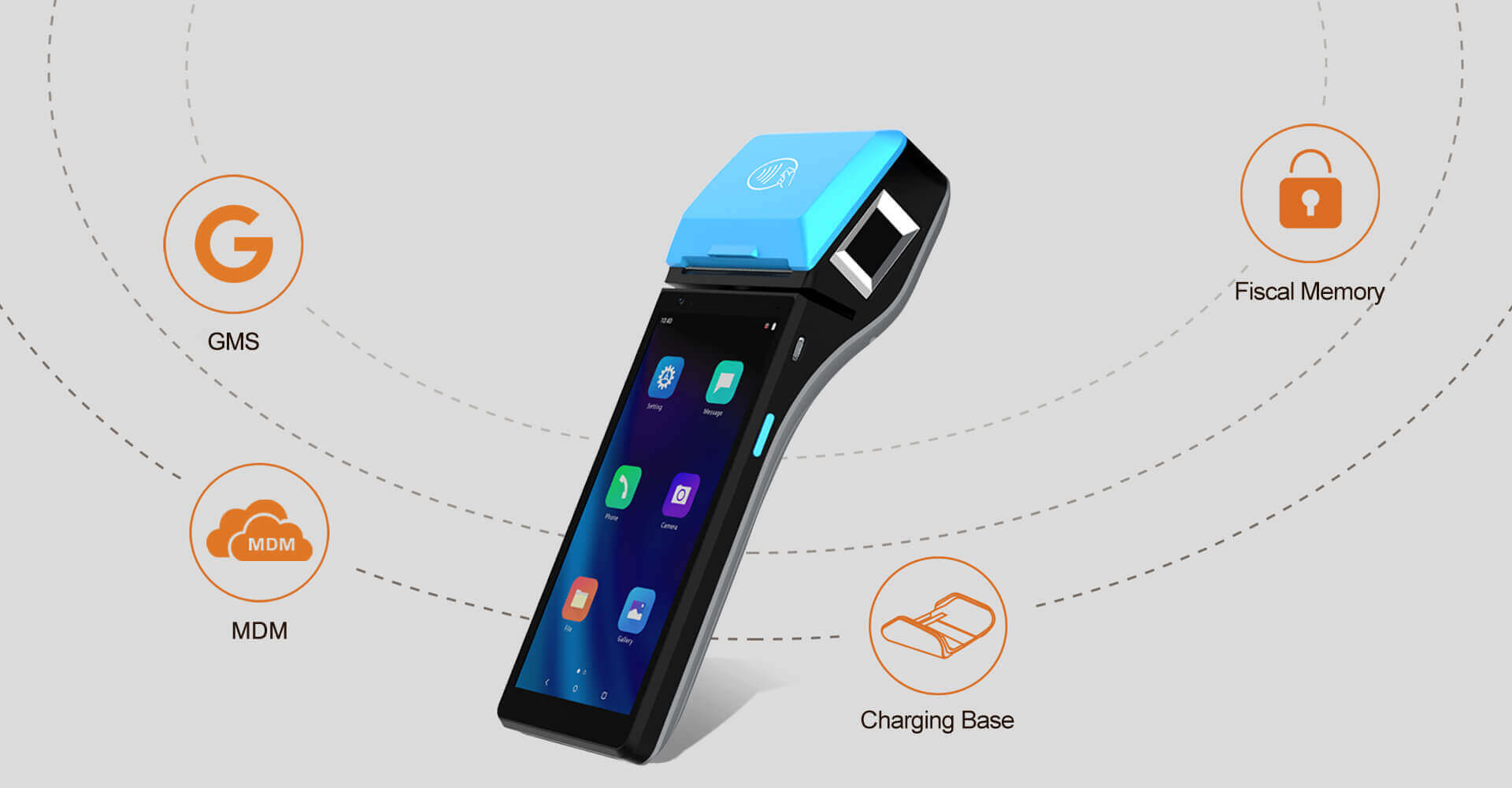

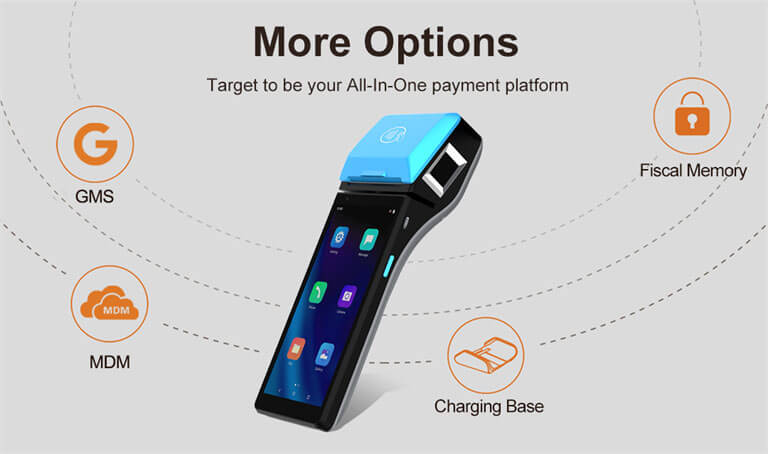

More Options

Target to be your All-In-One payment platform

Technical Specifications

Ciontek CS50

OS

Android 14.0

CPU

Quad-Core ARM Cortex-A53 2.0GHz

Memory

2GB RAM + 32GB ROM

Display

6-inch TFT IPS LCD, 1440x720 resolution

GMS

Support

Card Reader

NFC Contactless
Chip & PIN
Magnetic Stripe

Camera

2MP Front Camera
5MP Rear Camera

Printer

58mm High-speed Thermal Printer, Ø40mm roll

Battery

Li-ion 7.4V / 2600mAh (3300mAh optional)

Communication

Wi-Fi IEEE 802.11 a/b/g/n (2.4GHz & 5GHz)
2G / 3G / 4G
Bluetooth

Card Slot

1× Micro SD slot
1× Micro SIM slot
2× PSAM slots

Charging Port

USB Type-C, 5V/2A

Keys

1× Reset Key, 1× Service Key

Navigation

GPS (A-GPS), BeiDou, Glonass, Galileo

Interface

1× USB 2.0 Type-C

Regulatory Certifications

CE, RoHS, FCC

Payment Certifications

PCI PTS 6.x, EMV L1 & L2, EMV Contactless L1, PayPass, PayWave, Amex, TQM, CUP QuickPass, D-PAS, J/Speedy, Pure, Common.SECC

Environmental Conditions

Operating Temperature: -10°C to 50°C
Storage Temperature: -20°C to 70°C
Humidity: 5% to 95% (non-condensing)

Optional Features

Fingerprint

FBI-certified, 508dpi

Barcode Scanner

Symbol 4710 2D scanner

Fiscal Module

Support

Customer Display

Resolution 128x36

USB HUB

2× USB + RJ45

FAQ

Q1

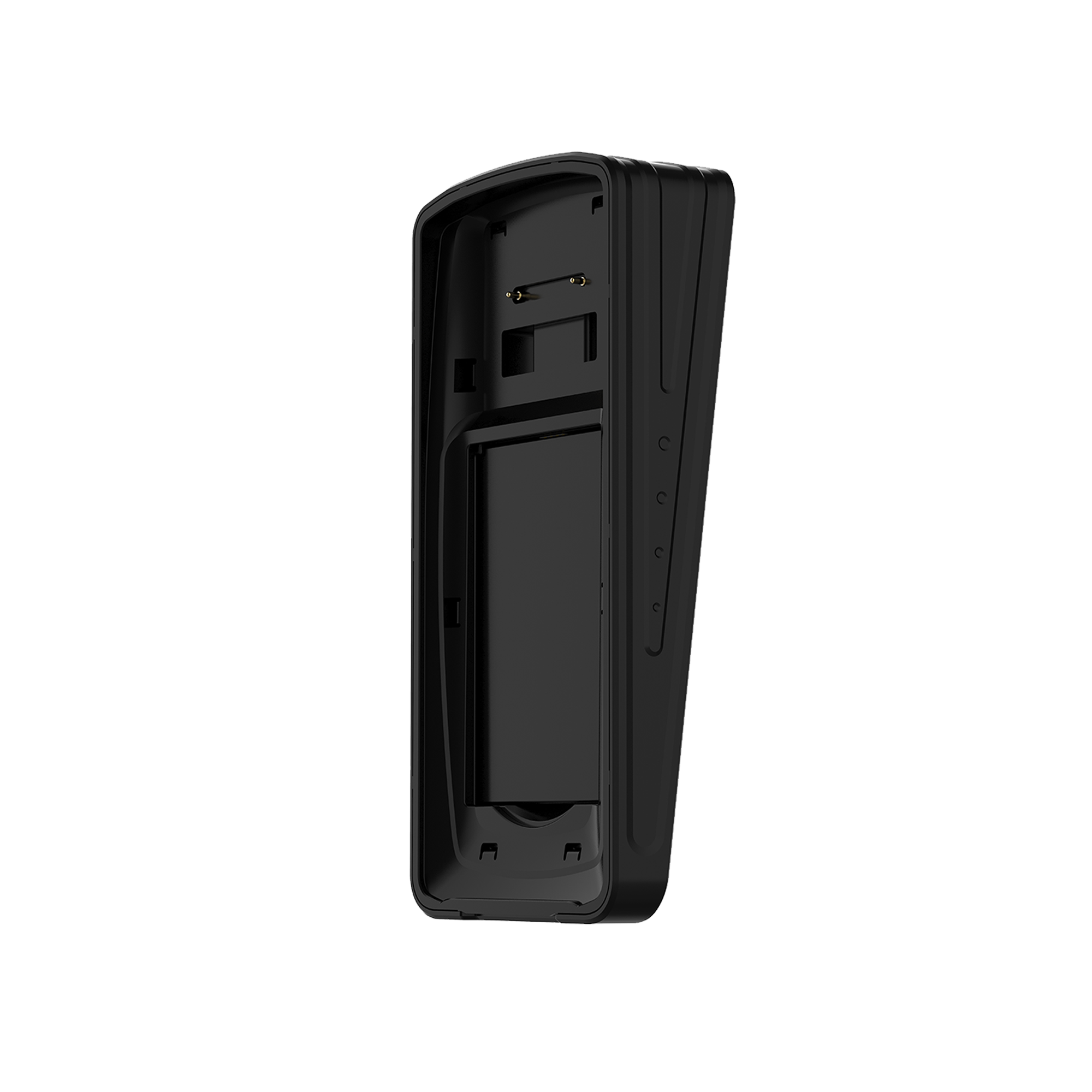

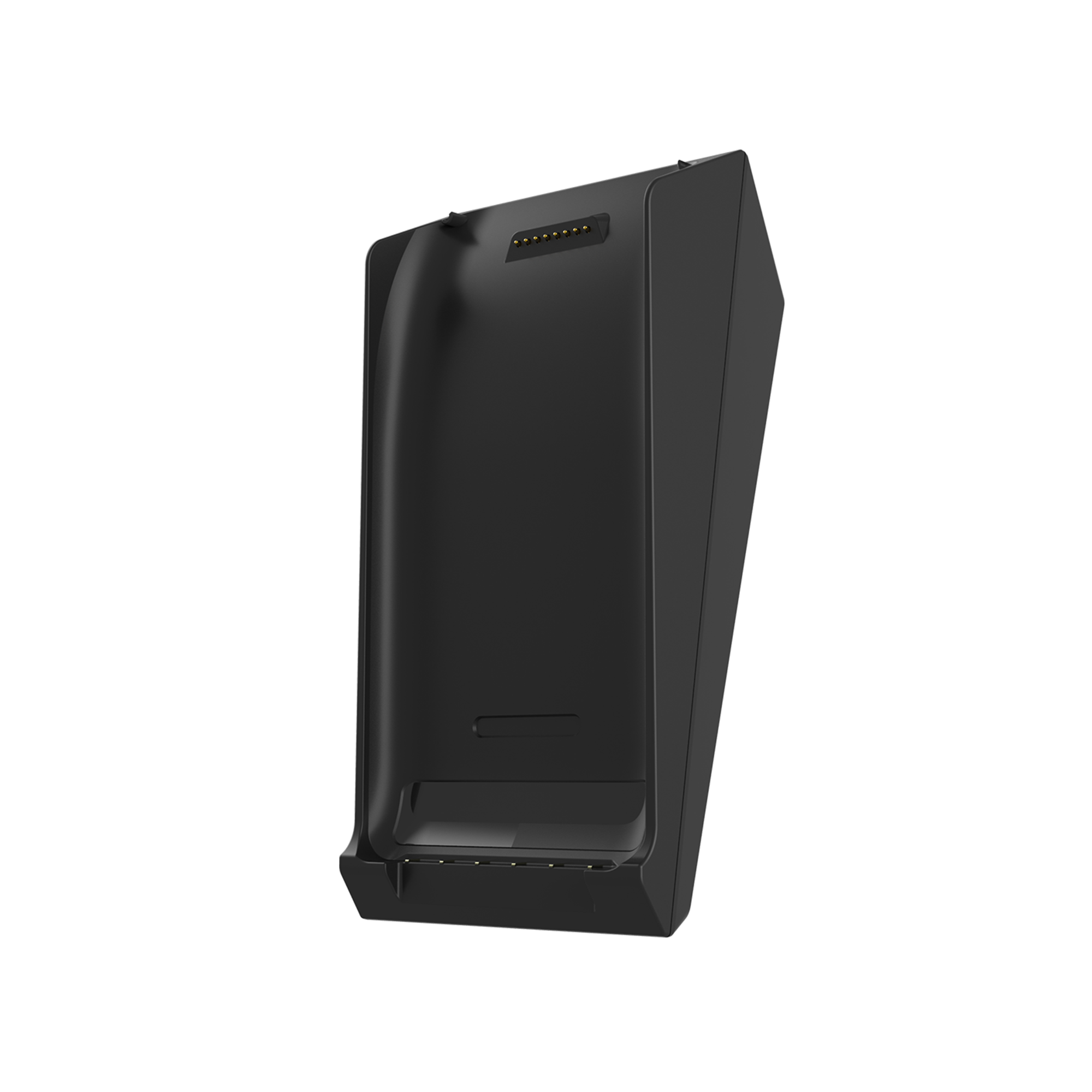

I don't see Peripherals for CS50 smart POS, do you have cradle for it?

Yes, CS50 is a newly launched model. It has 8 Pogo Pins which allows for a cradle with charging and communication functions.

Q2

What's the using scenario for CS50 smart POS model?

CS50 is a payment-certified model. It applies to all scenarios involving bank/credit card payments. With optional fingerprint and barcode scanner, it supports access control, inventory management, and more.

Q3

What if I don't need CS50's payment certifications?

We have a non-payment version of CS50 as SoftPOS. Please contact our sales for more information.
