Installs in minutes.
Fits almost anywhere.
Simple, quick setup with universal mounting — rapid deployment and minimal downtime.
Built for the Road. Ready for Every Passenger.
CM30V is a rugged Android 14 UPT terminal engineered for self-service kiosks and public transportation. A quad-core Cortex-A53 processor, a 5.0-inch HD touchscreen and IP65 / IK09 protection keep fares flowing in buses, trams, coaches, parking lots and toll booths — while contactless and QR code payments make every boarding effortless.
5.0inch
HD IPS · 1280×720
IP65
Dust & water jets
IK09
High impact & vandal-proof
RAM2GROM32G
2+32GB
LPDDR RAM + eMMC ROM
Android 14
Safedroid OS
SAFE
CPU
Quad-Core
Cortex-A53
ARM · 2.0 GHz
Tap or scan.
Every boarding covered.
ISO 14443A/B contactless · 5MP front camera for QR codes.
Full Connectivity
Includes 2G, 3G, 4G, BT, Wi-Fi, Ethernet, GPS tracking.
Every way to pay.
One reader.
Bank cards, transit cards, phones and wallets — just tap. Or hold up a QR code to the 5MP front camera. CM30V takes them all on the same device, so every passenger boards without waiting.
Optional
Professional scan module
Optional add-on: a dedicated QR code and barcode scan module for faster, more reliable reading. It mounts on the same pole, right below the terminal.
Contactless tap
Tap a transit card, bank card, phone or wallet — ISO 14443A/B supported.
QR code & barcode
Present a QR code to the 5MP front camera — scanned on the device, ticket validated.

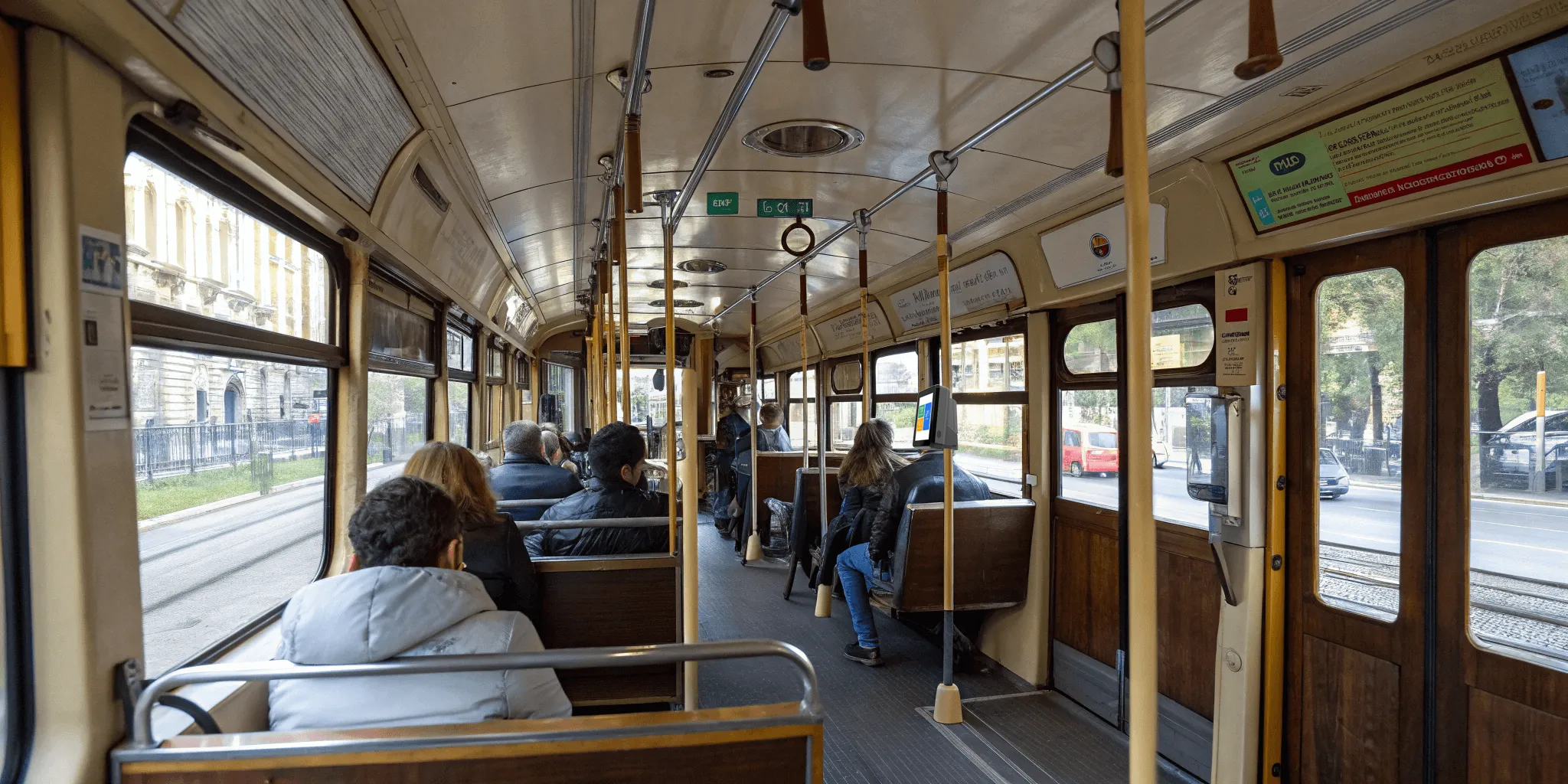

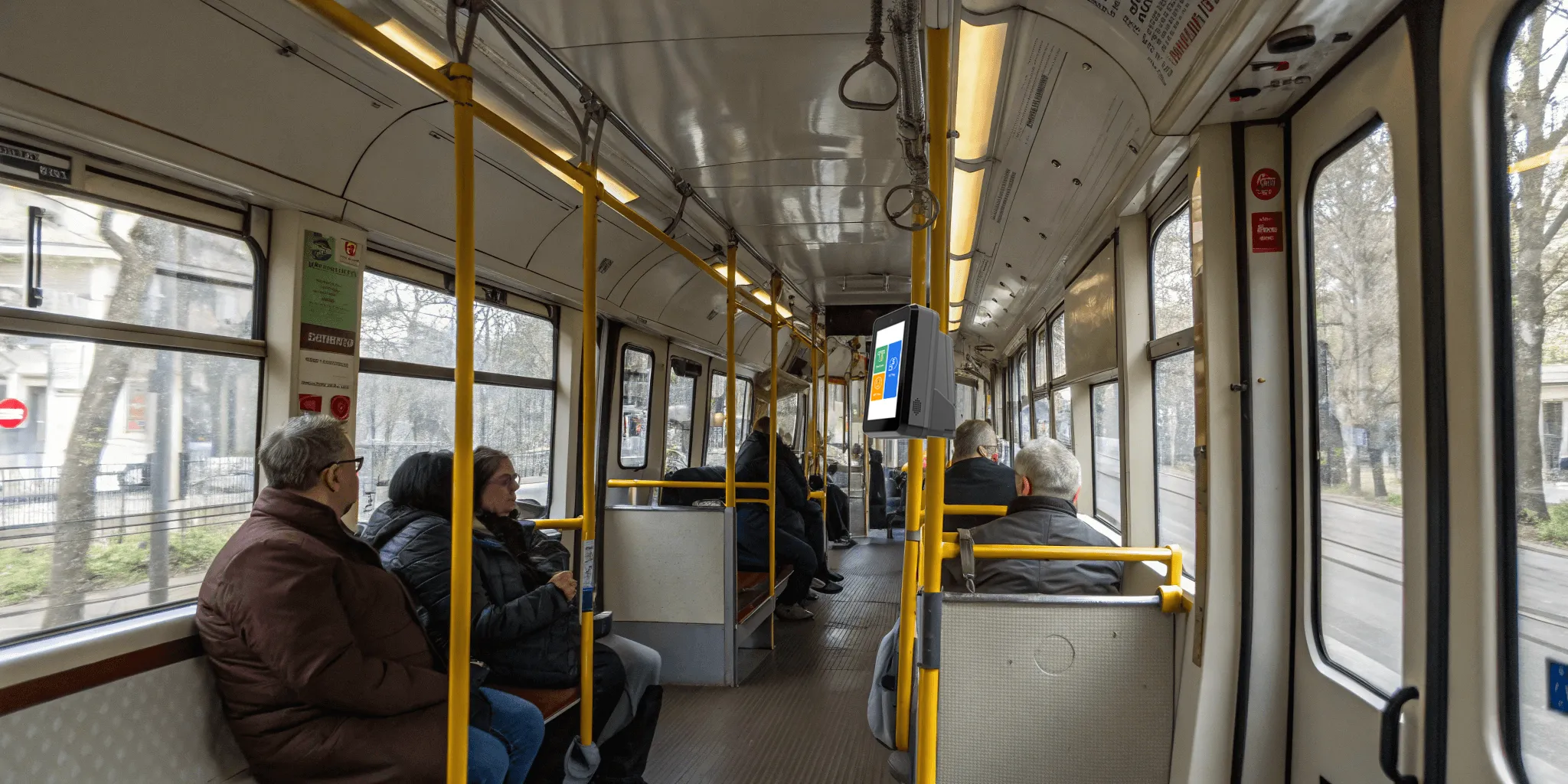

Seamless travel,
made simple.
One terminal for every vehicle — from city buses to trams and long-distance coaches.
01 / 03

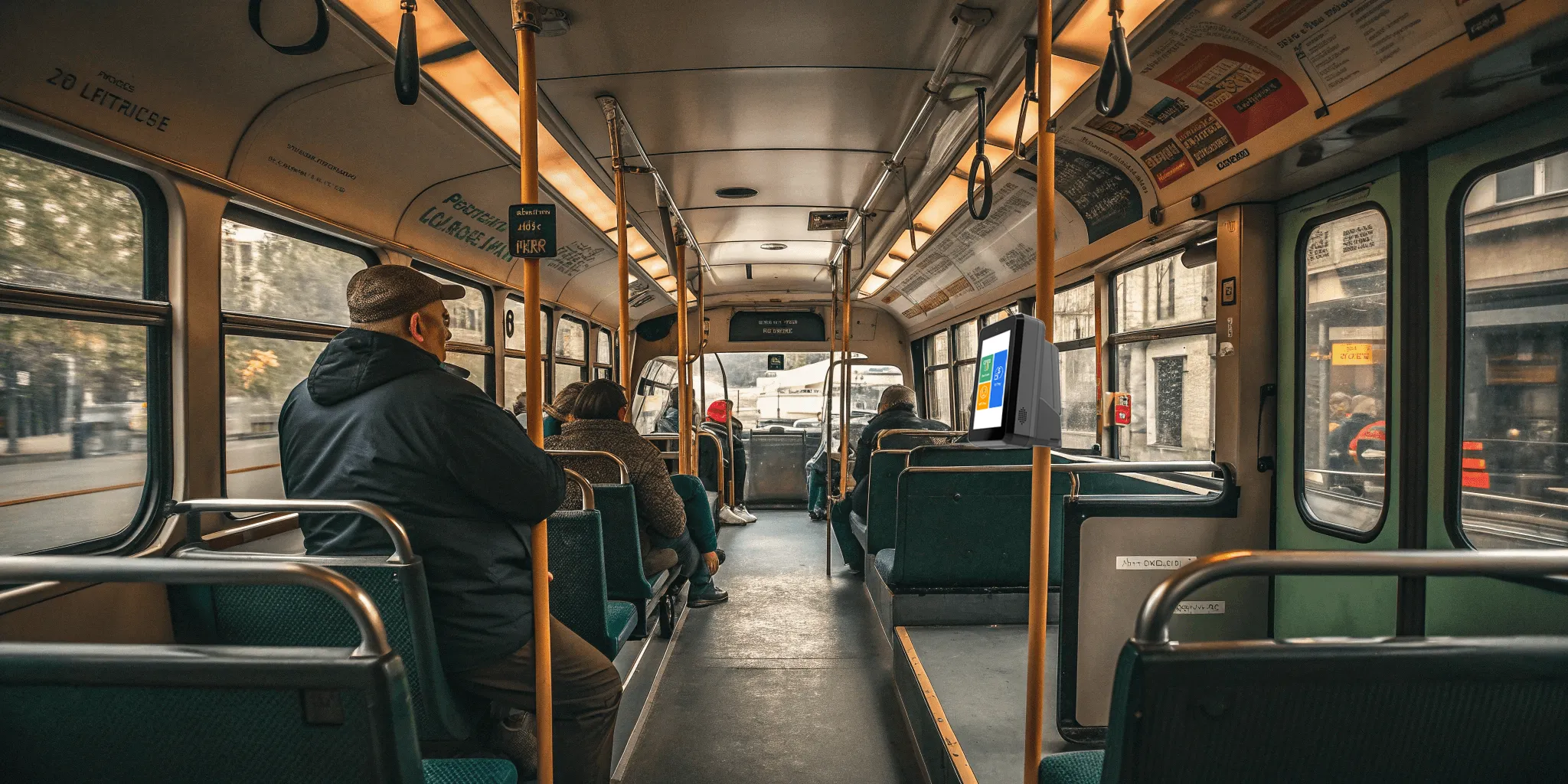

Tap in. Hop on.
City trams,
Long routes.
Tap in. Hop on.
Every bus, every stop.
Fast validation at the door keeps boarding moving.
City trams,
zero queue.
Compact, vibration-ready and always online.
Long routes.
Reliable all the way.
Industrial-grade protection for every kilometre.

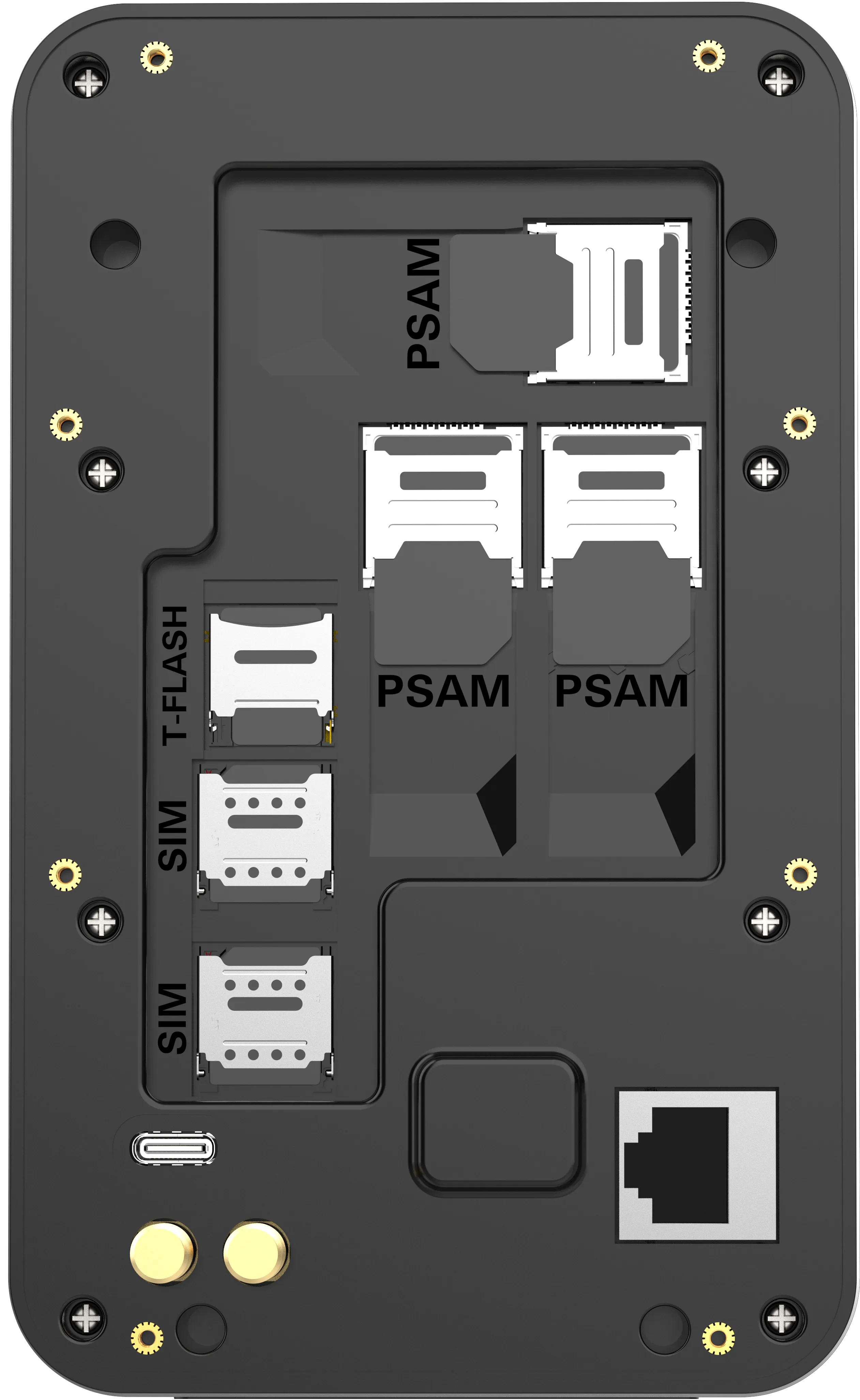

Rich Interfaces.
Ready to Integrate.
USB, LAN with PoE, antenna, PSAM, SIM and Micro SD — everything you need sits behind one service cover.

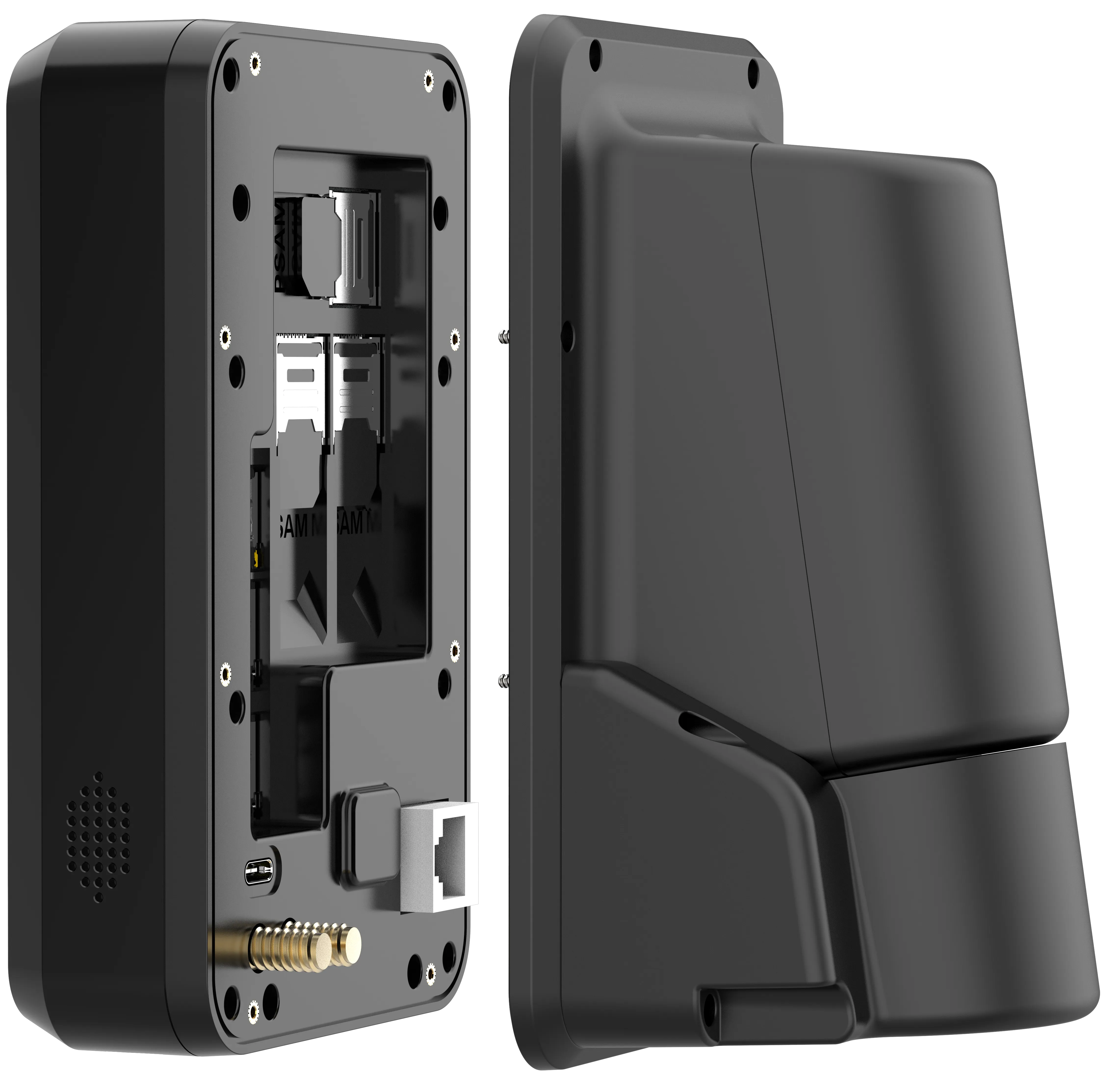

Installs in minutes.

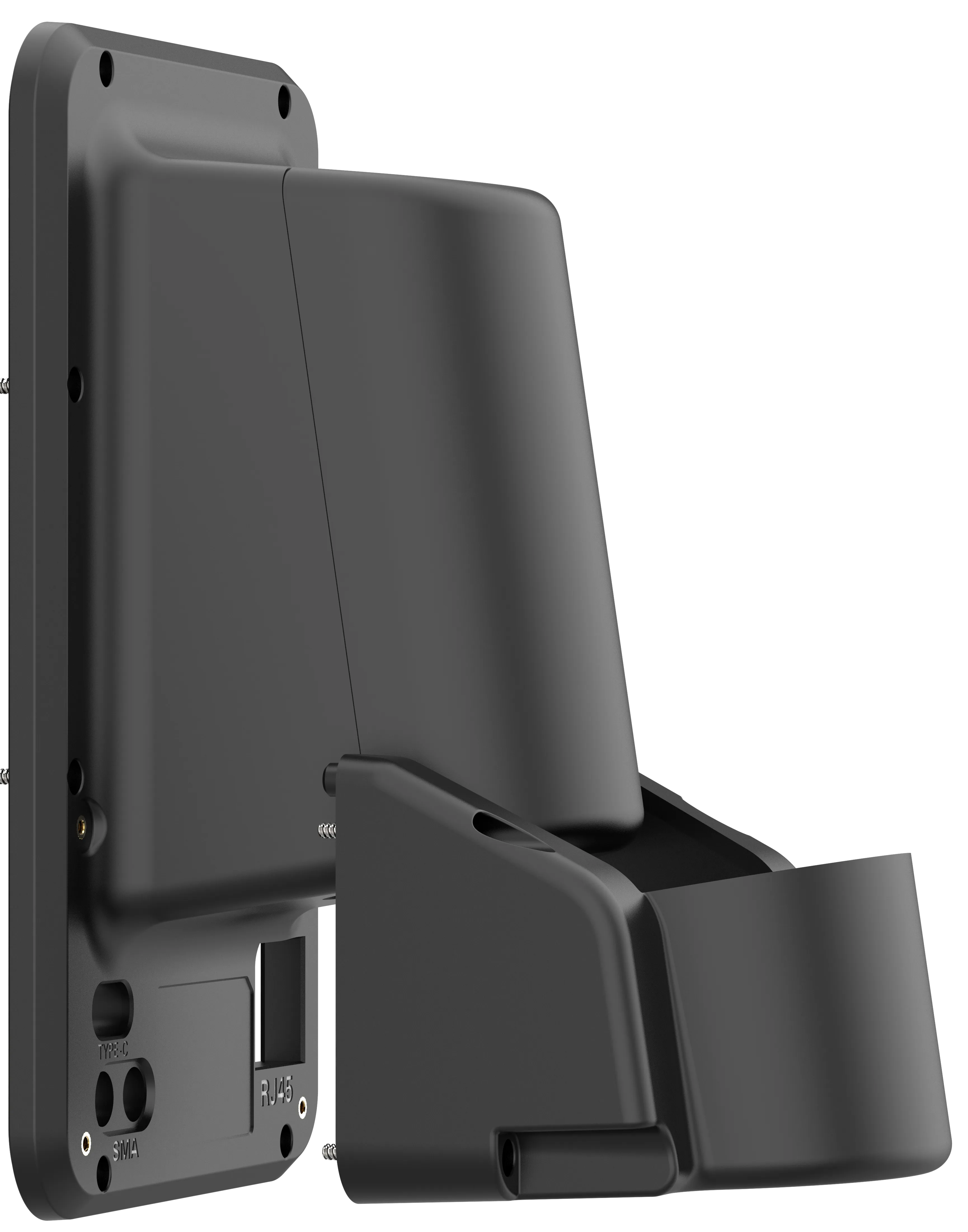

Sealed tight.
Wired to last.
Protected cable routing keeps water out and connections firmly in place, in any environment.
Always Connected.
Always On Route.
Cellular, Wi-Fi, Bluetooth and Ethernet — multiple communication options keep every vehicle online, wherever the route goes.
Bluetooth
Wi-Fi
4G
GPS
Ethernet
Payment-Grade.
Industry-Certified.
CM30V meets the payment, safety and regulatory standards your deployment demands.
CM30V Dimensions
Height
152mm
Width
93mm
30 ~ 34 mm
Pole Diameter
30 ~ 34mm
CM30V Specifications
OS
Safedroid OS (based on Android 14.0)
CPU
Quad-Core ARM Cortex-A53 2.0GHz
Memory
2G RAM LPDDR + 32GB ROM EMMC
Display
5.0 inch TFT IPS LCD, resolution 1280×720
Touch Panel
Ultra sensitive capacitive touch screen, can work with gloves and wet fingers
Dimensions
152×93×41mm
Contactless Card Reader
Supports 14443A/14443B
Front Camera
5MP
Communication
WIFI: IEEE 802.11 a/b/g/n/ac, support 2.4GHz and 5GHz
Bluetooth: BT 5.0 and earlier
Satellite Positioning
Support GPS(A-GPS)/Bei-Dou/Glonass
SIM / Storage
SIM Card Slot: 2 Pcs Micro SIM
Micro SD Card Slot: 1 Pcs
PSAM
6 Pcs Conforms to ISO7816 standard
Interfaces
1×LAN, 100Mbps, Non-Standard POE+12V/+24V
1×USB Type C, USB2.0
2×SMA, External antenna
Audio
Speaker, Mic, Buzzer
Power
12V-48V DC
Protection
IP65, IK09
Environment
Operating Temperature: -20°C to 60°C
Storage Temperature: -30°C to 70°C
Humidity: 5% to 95% Relative Humidity, Non-Condensing
Certifications
CE, RoHS, FCC, ATEX, GMS(optional)
FAQ
Where can CM30V be deployed?
CM30V is designed for unmanned environments like public transportation, parking lots, toll booths, self-service kiosks, and vending machines, with reliable operation in harsh outdoor conditions.
What is the IP rating of CM30V?
CM30V has IP65 dust and water protection with IK09 impact resistance, making it suitable for industrial and public environments where durability is essential.
What are the power requirements for CM30V?
CM30V supports 12V-48V DC input and features PoE capability through its LAN port for flexible power options in transportation applications.
What connectivity does CM30V support?
CM30V supports dual-band Wi-Fi (802.11 a/b/g/n/ac), Bluetooth 5.0, 4G/3G/2G cellular with two Micro SIM slots, GPS/BeiDou/Glonass positioning and a 100Mbps LAN port. Two SMA ports allow external antennas for better signal in metal enclosures.
