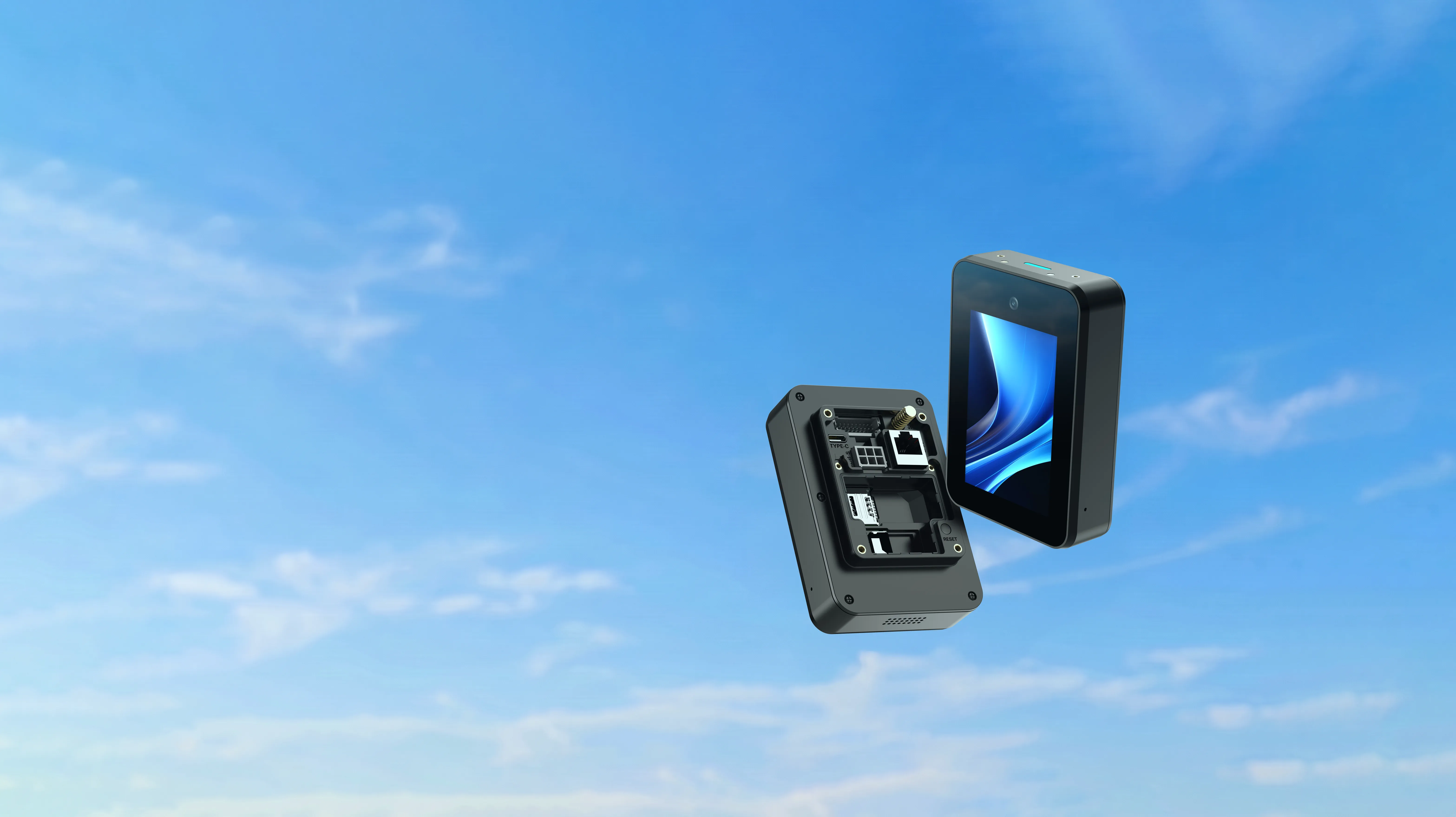

CM25 redefines unattended payment with an ultra-compact footprint engineered for effortless chassis integration. Powered by an octa-core ARM Cortex-A75 processor running Android 16 Safedroid OS, it seamlessly combines on-screen NFC, a vibrant 3.5-inch touch display, and IP65/IK09 rugged protection within a slim 32 mm profile. Designed for flexible SoftPOS integration, it provides a versatile hardware platform for payment providers to deploy customized Android-based contactless payment solutions across a wide range of self-service applications.
On-Screen NFC
ISO 14443A/B · Digital wallets
SoftPOS ready
Android 16
Safedroid OS · GMS Certified
SAFE
LED Status
Blue LED strip · At-a-glance visual feedback on device status
IP65
Dust & water jets
IK09
High impact & vandal-proof

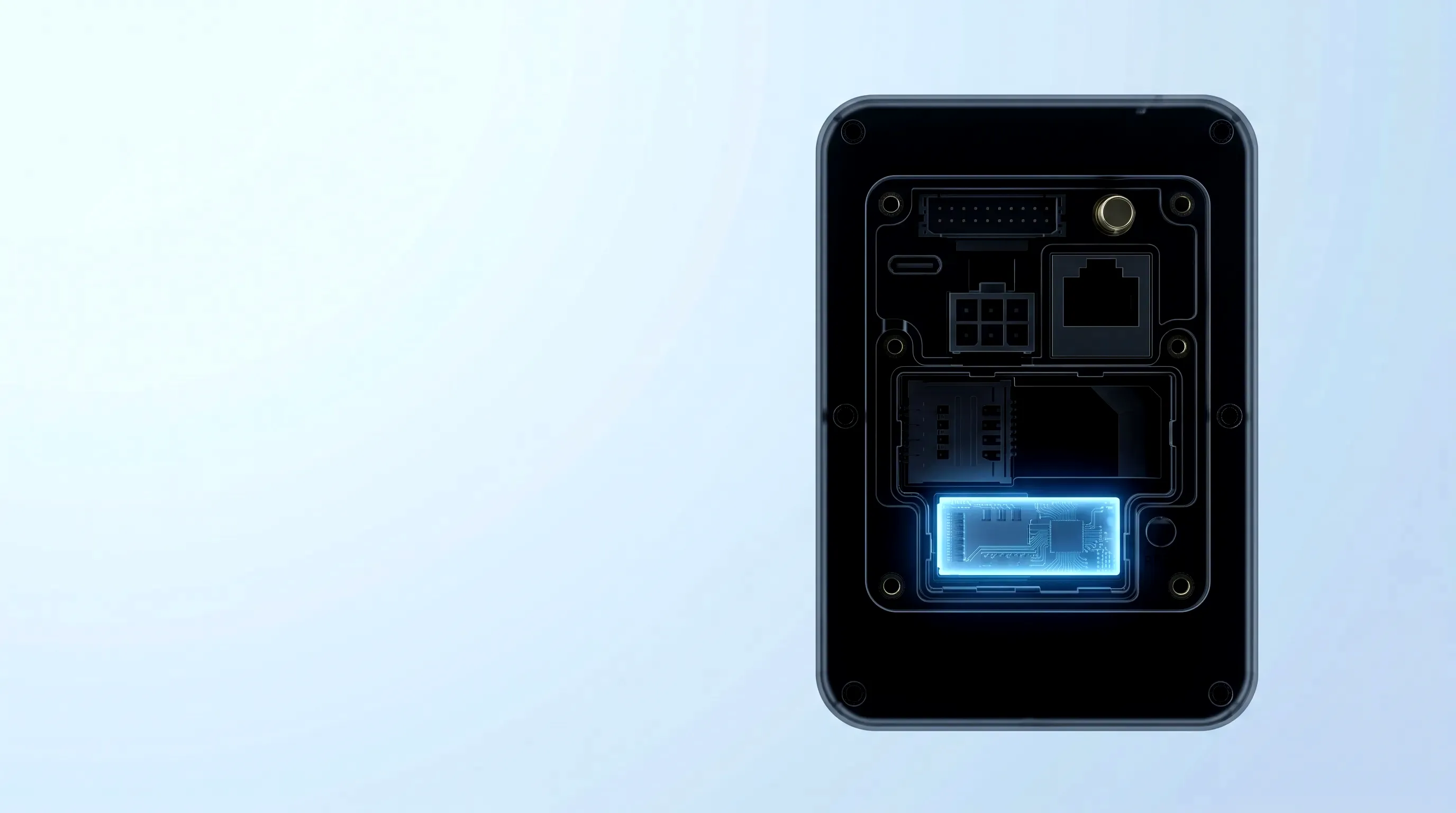

Memory
3+32GB
RAM + ROM
Up to 4 GB + 64 GB
Processor
Octa-Core
Cortex-A75
2.0 GHz · 8 Cores · 64-bit
Google Mobile Services
Certified for enterprise deployment, Google Play store, and seamless app ecosystem.

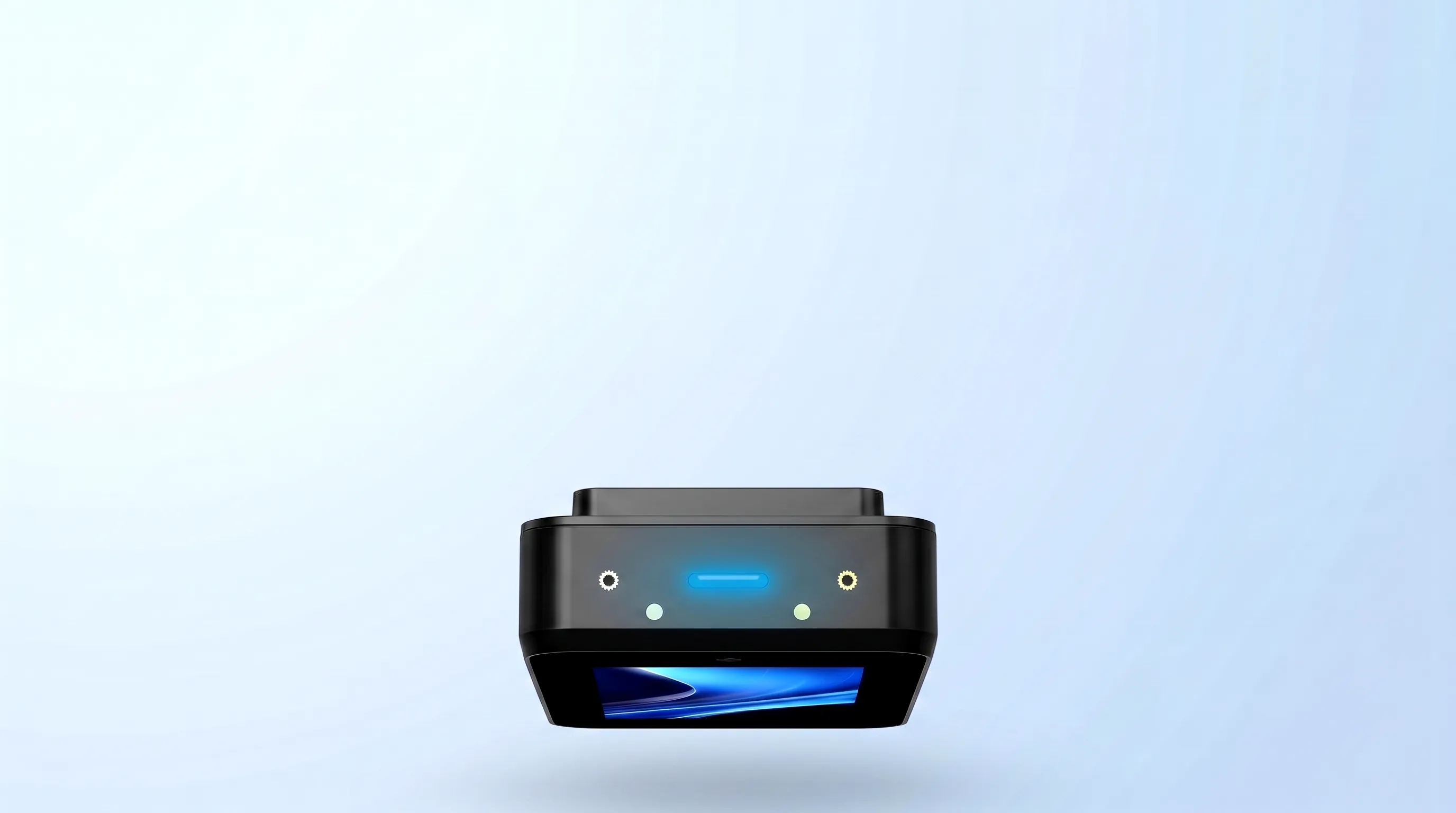

A blue LED strip on top of CM25 gives instant visual feedback — lit or off, no screen reading required.
On
Blue light on. The LED strip lights up to signal an active status.

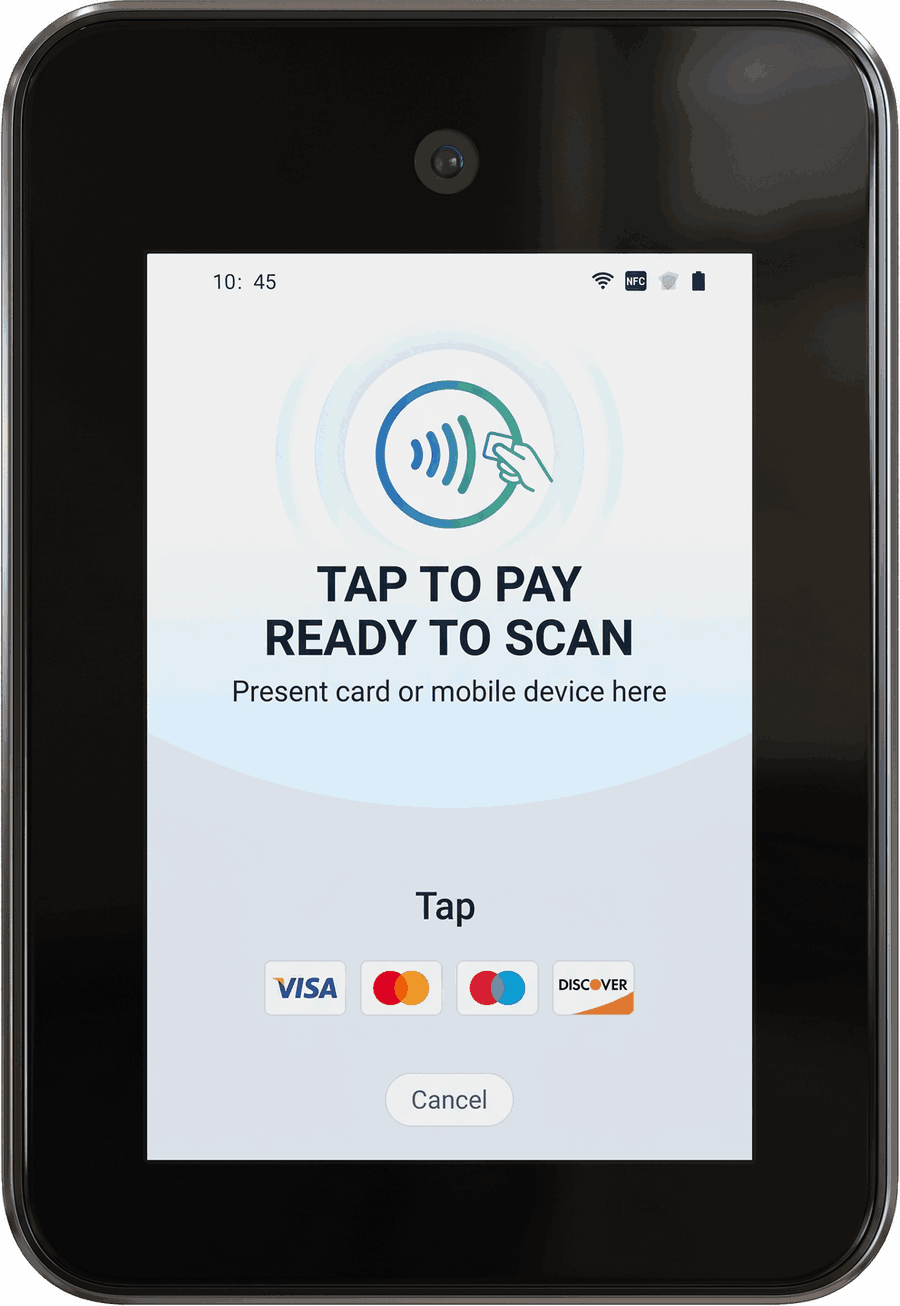

CM25 accepts contactless payments on its on-screen NFC area and QR code payments through the 2 MP front camera.

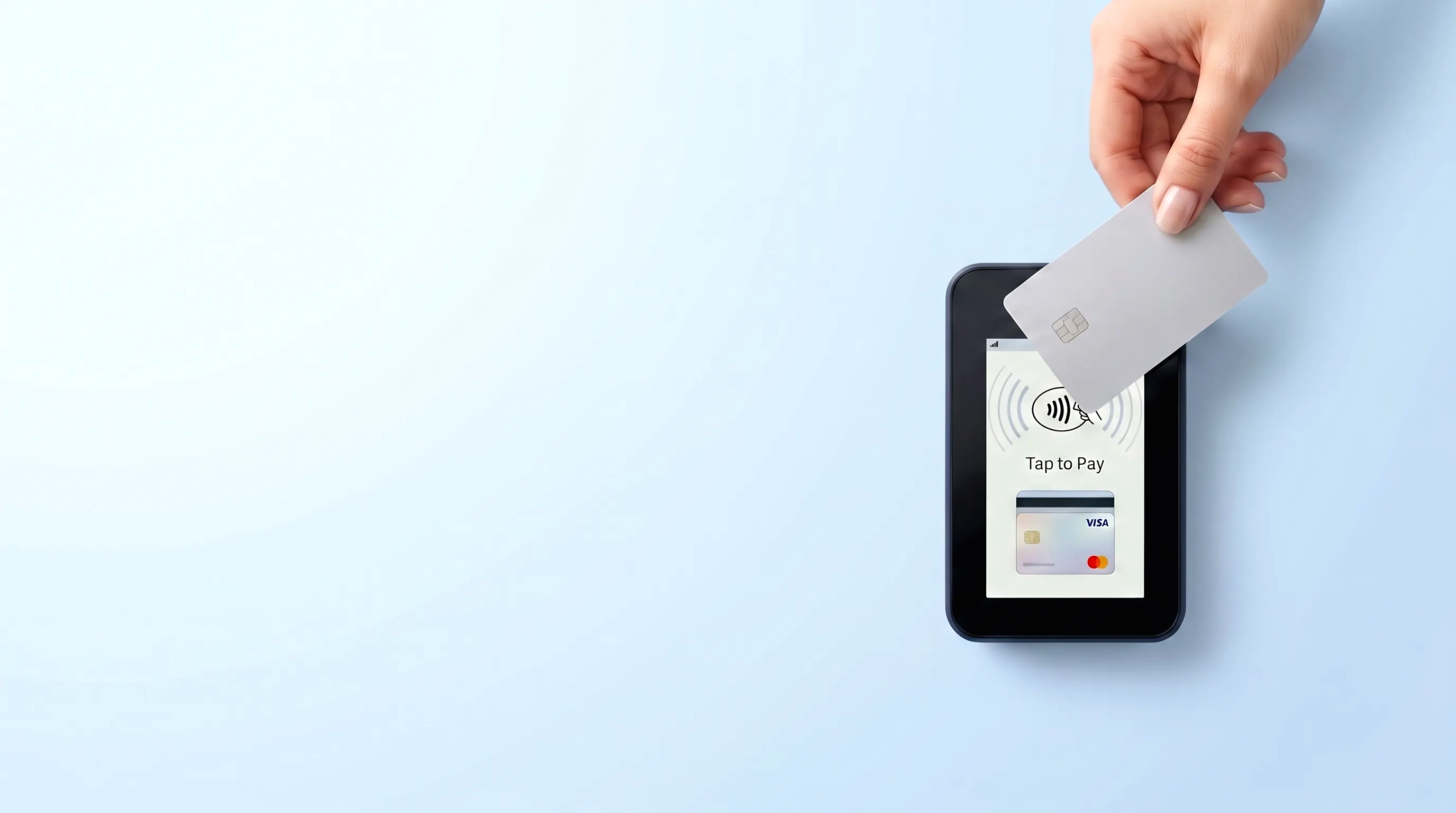

Tap a contactless card, phone, or digital wallet right on the screen.

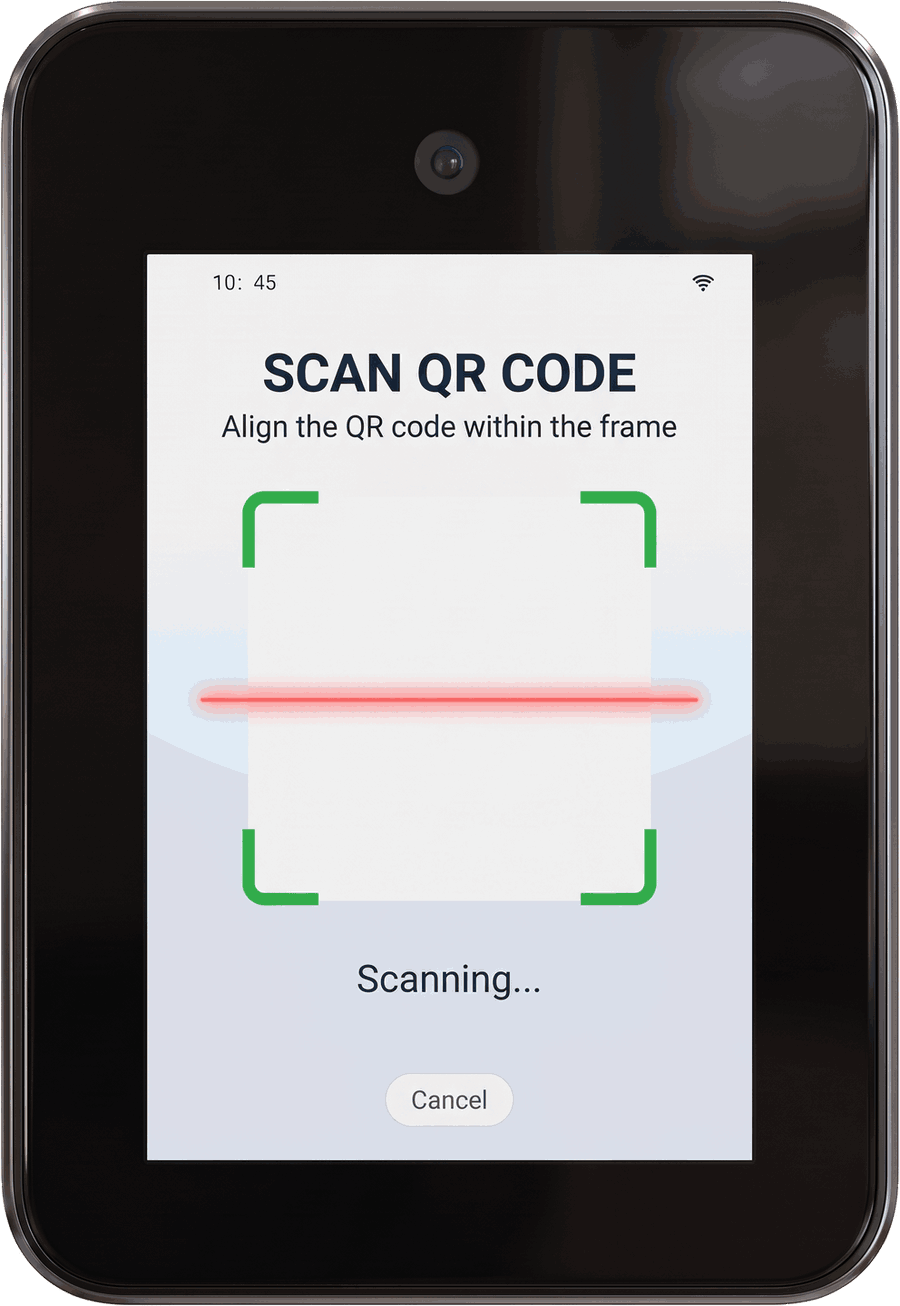

Present a QR code to the 2MP front camera — scanned on the device, ready to pay.

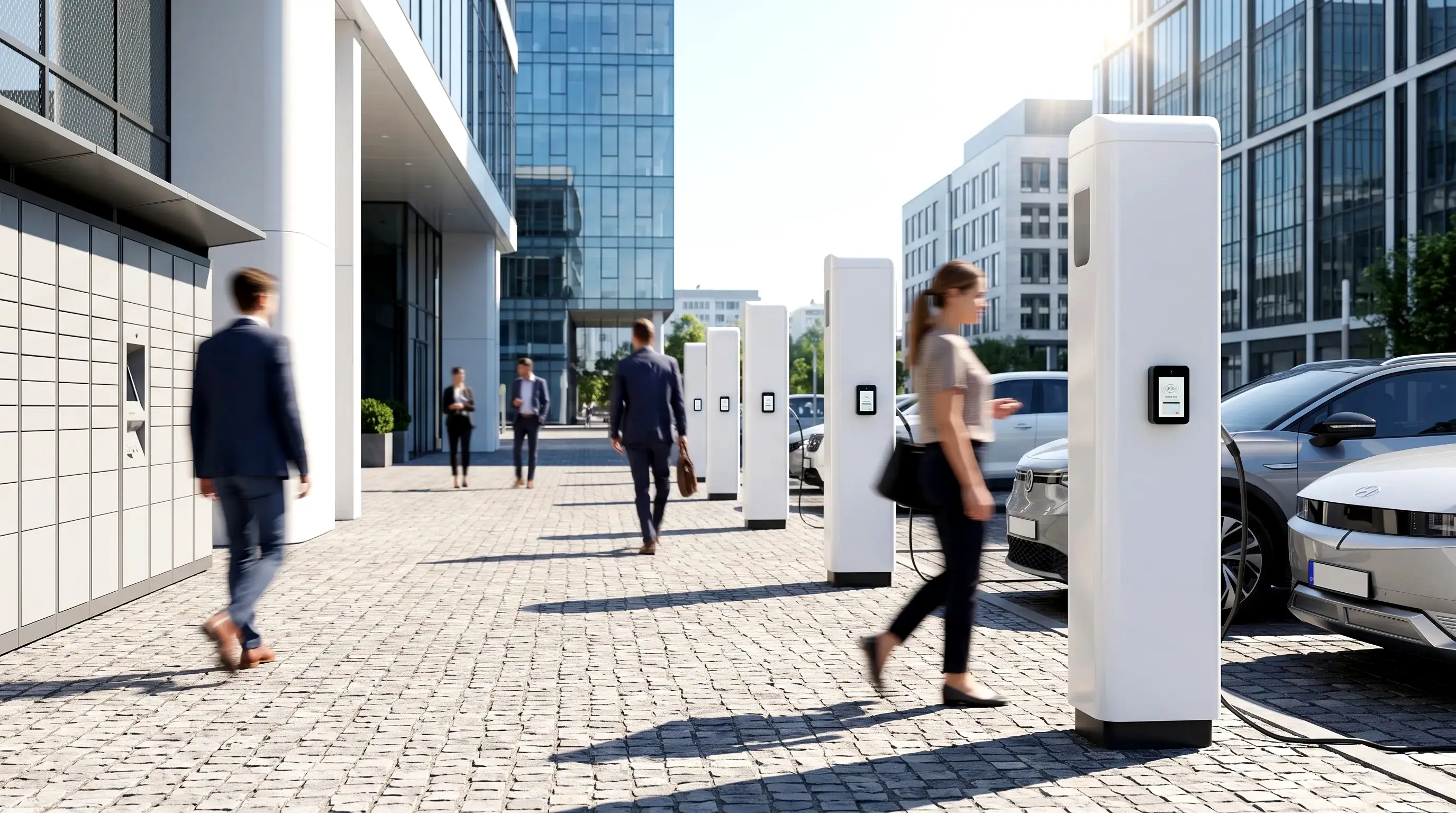

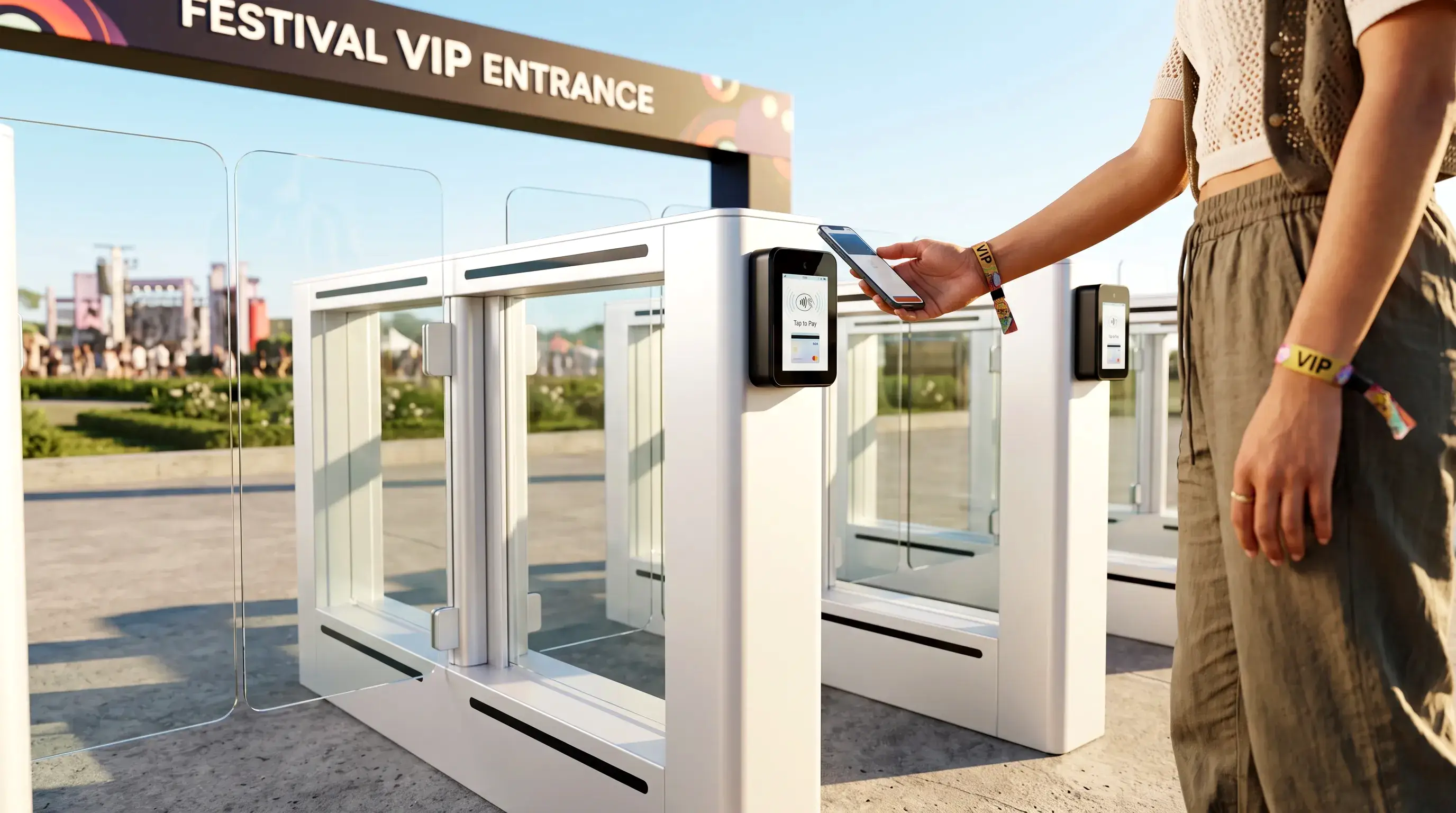

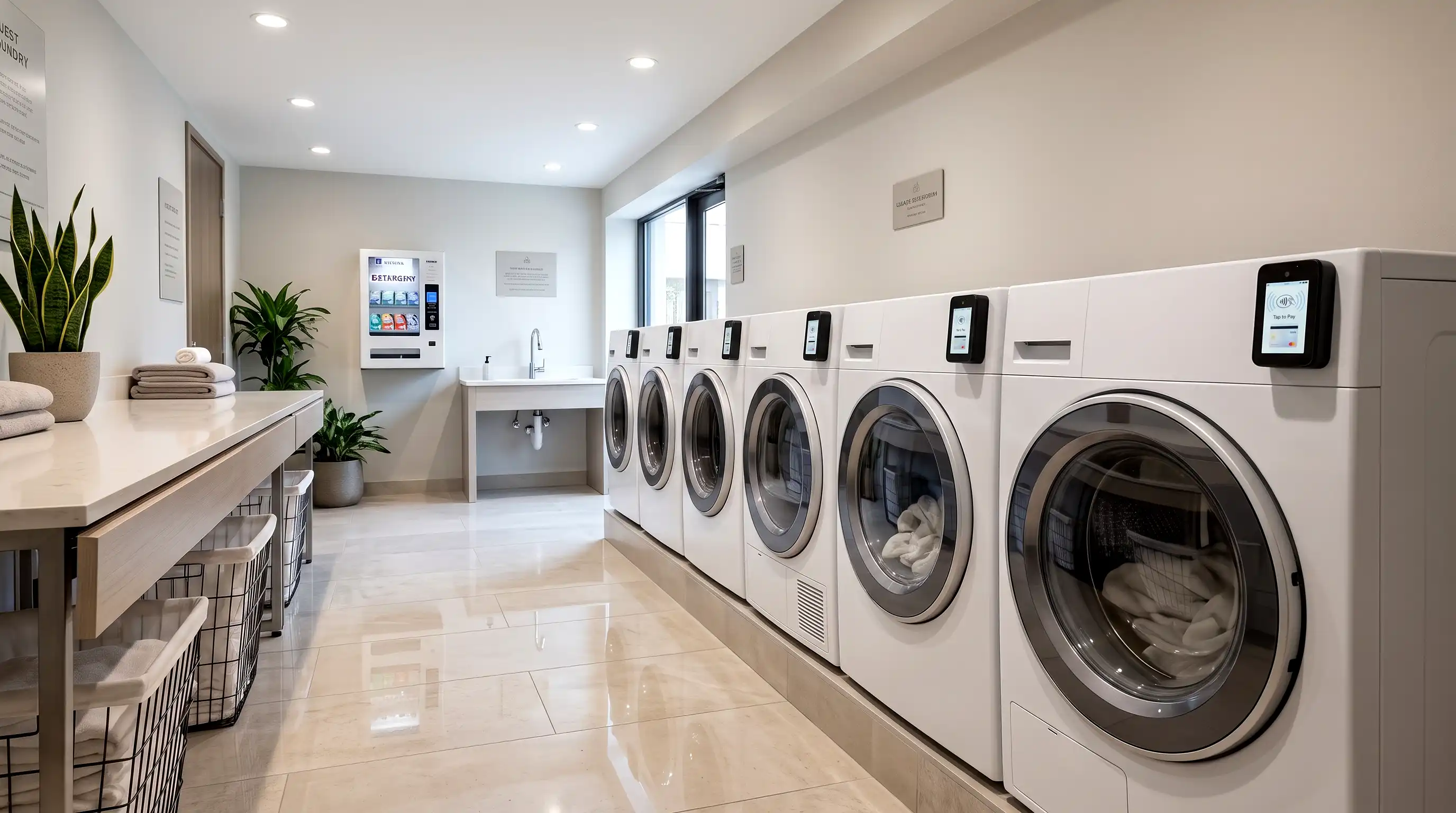

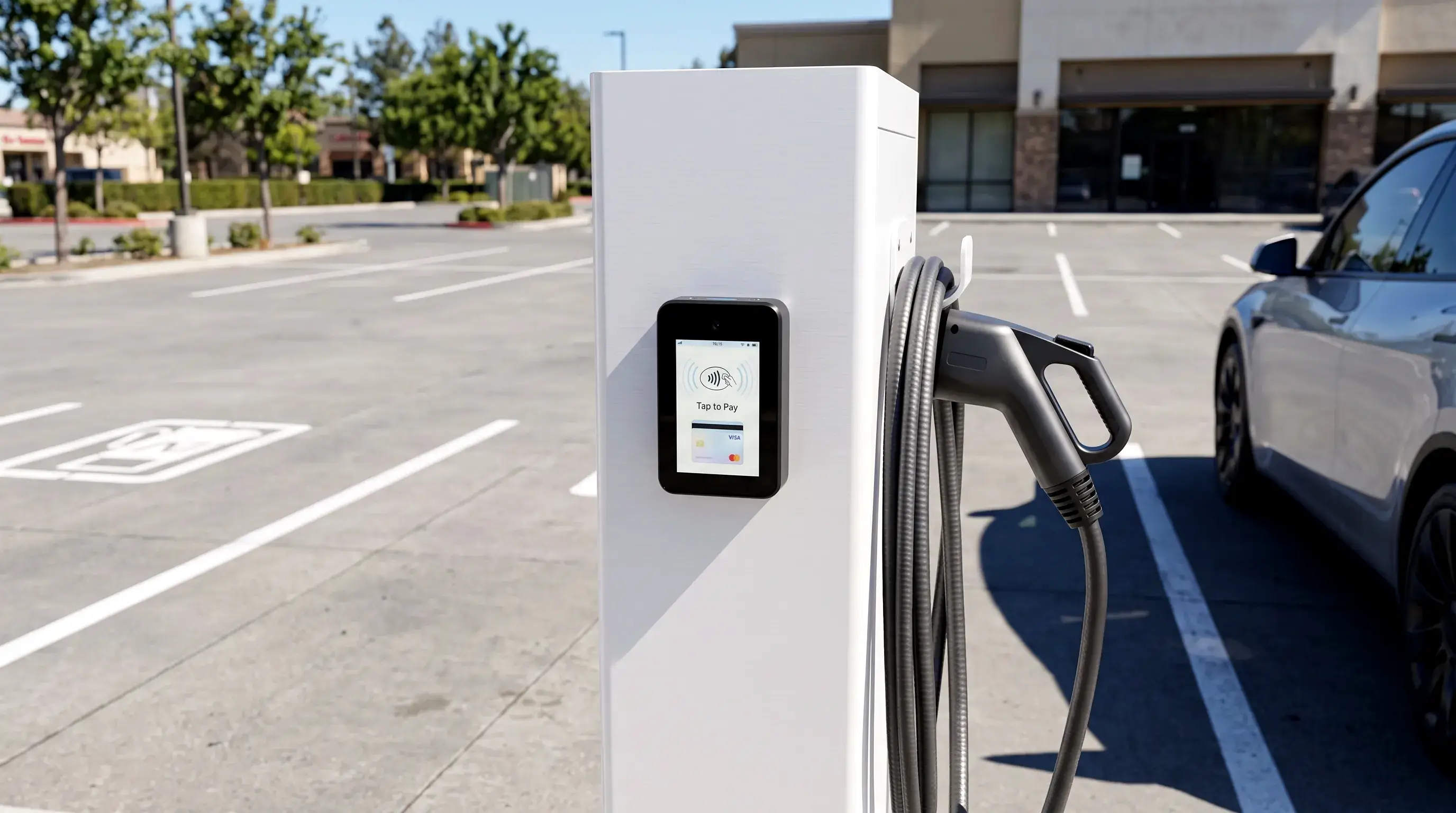

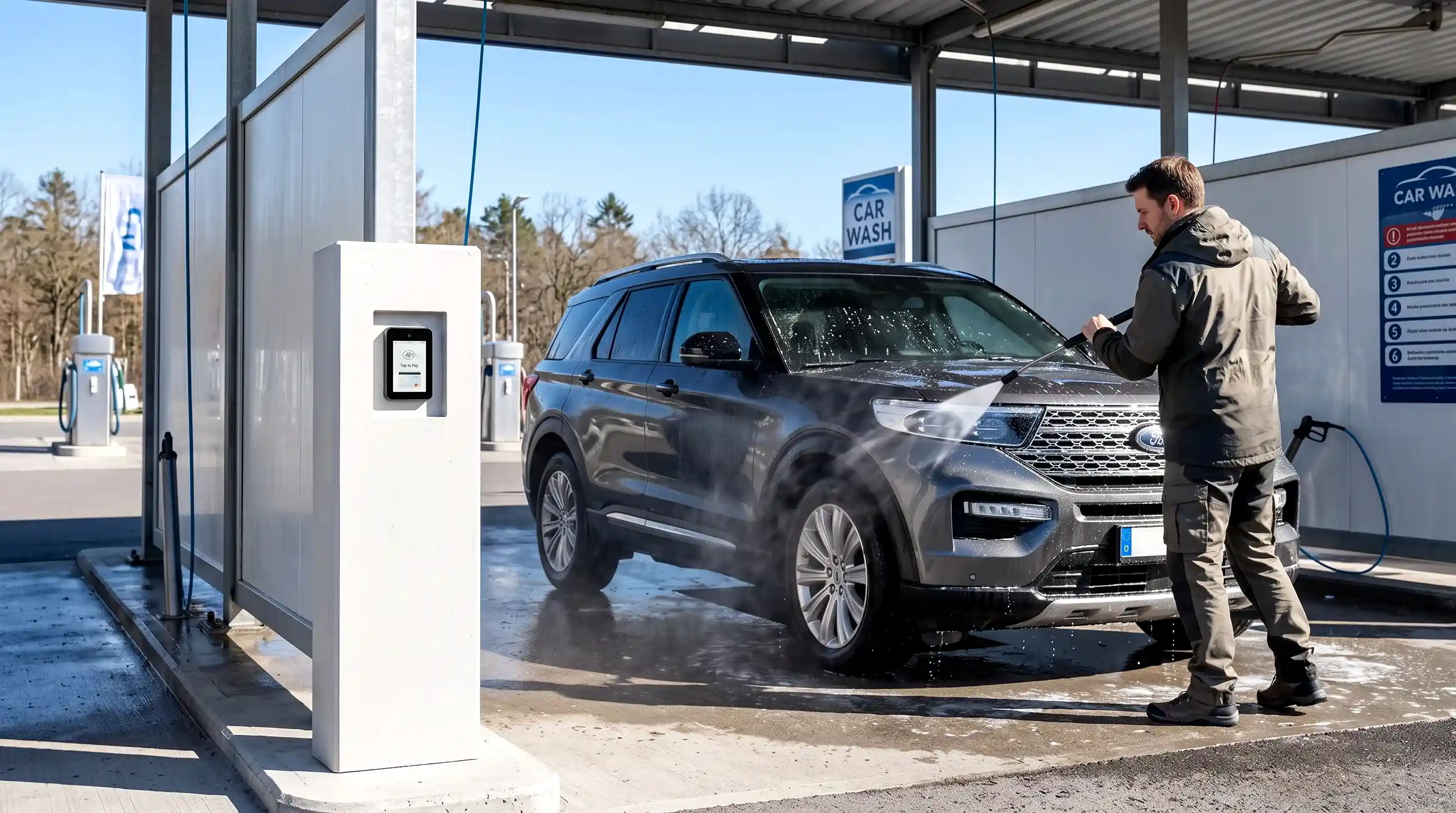

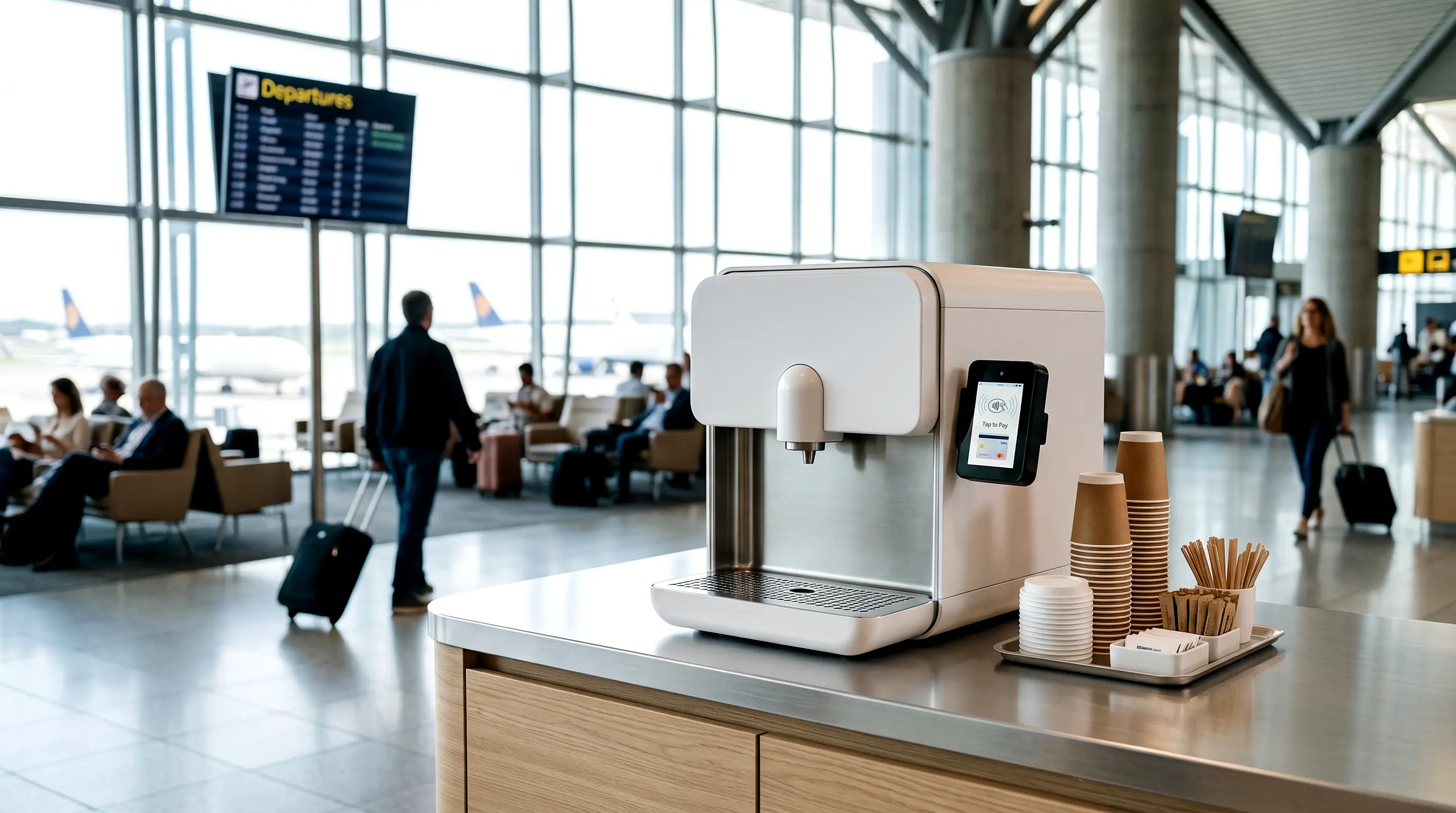

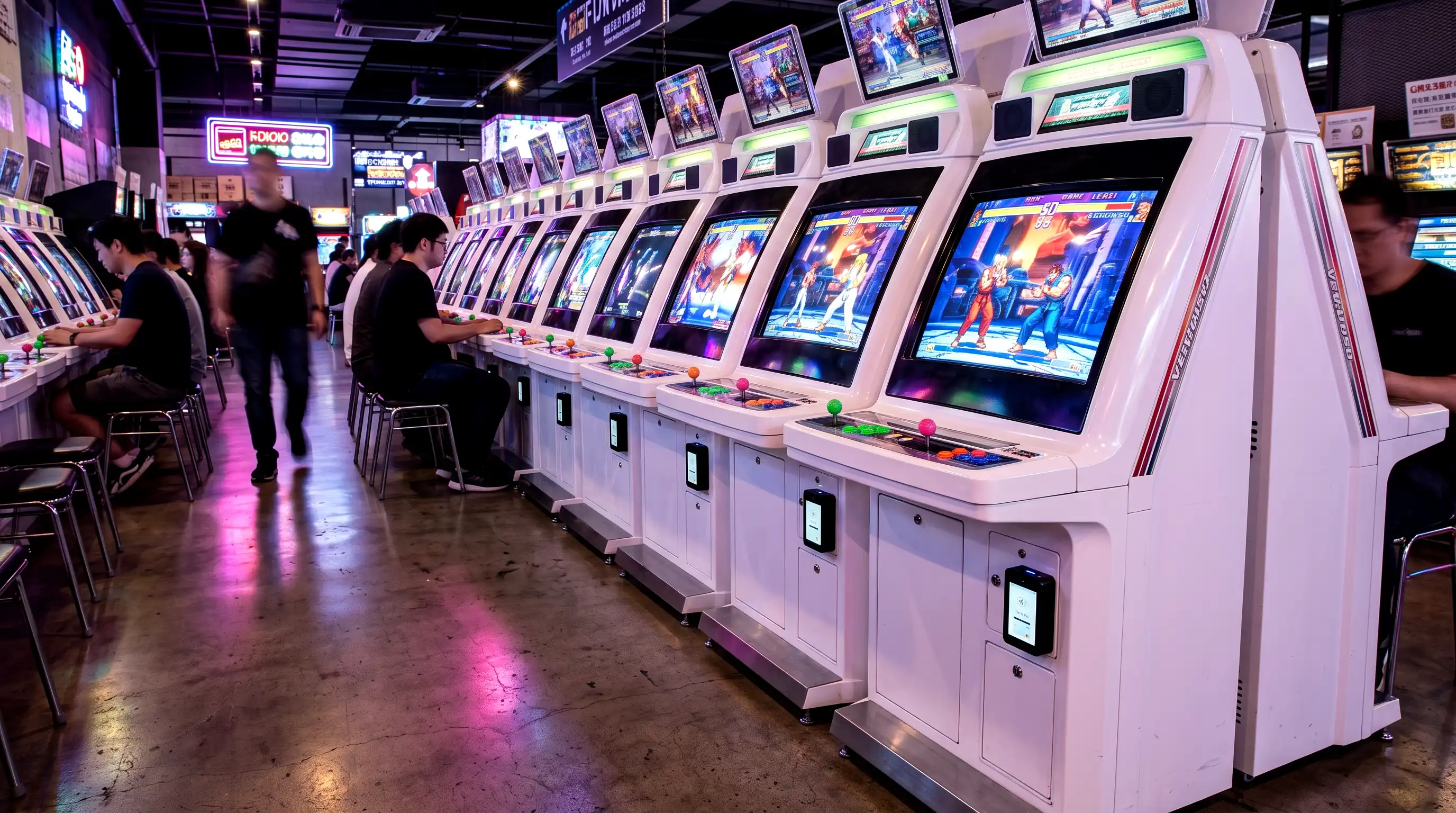

From bus gates to EV chargers, coffee kiosks to self check-in — CM25 adapts its payment logic, connectivity, and power management to each environment without hardware changes.
CM25 supports mainstream SoftPOS payment service providers, turning it into an agile contactless terminal.
Contact our sales team for supported providers and integration details.
Certifications & Compliance
European
US
Environmental
Google certified
Full-spectrum wireless communication and high-precision positioning for continuous unattended operations.

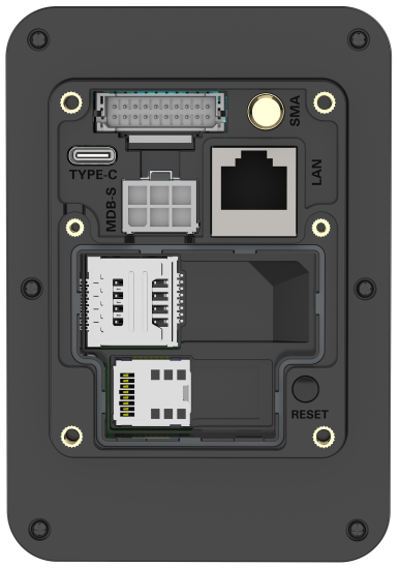

Comprehensive connectivity for seamless embedding into any self-service system.
① Multi-function interface that can be adapted via cable to 1×RS232, 1×MDB Master and 6×Digital IO.
② SIM and Micro SD have two configurations to choose from: 2 Pcs SIM, or 1 Pcs SIM + 1 Pcs Micro SD.
Product Dimensions
Height
107.77 mm
Width
74.57 mm
Depth
32.05 mm
Installation Dimensions
Cutout Height
73.40 mm
Cutout Width
57.30 mm
Mounting Depth
7.80 mm
OS
Safedroid OS (based on Android 16.0), GMS certified, SoftPOS ready
CPU
Octa-Core ARM Cortex-A75, 2.0 GHz
Memory
3 GB RAM LPDDR + 32 GB ROM EMMC (up to 4 GB + 64 GB)
Display
3.5-inch TFT LCD, 480×320 resolution, Multi-Point Capacitive touch
Dimensions
107.77 × 74.57 × 32.05 mm
NFC / Card Reader
On-screen NFC contactless, ISO 14443A/14443B
Camera
Front 2 MP (QR code payment)
Communication
Wi-Fi IEEE 802.11 a/b/g/n/ac (2.4 & 5 GHz) · Bluetooth 5.0 · 4G/3G/2G (European bands default)
SIM / Storage
2× SIM card slots or 1× SIM + 1× Micro SD
PSAM
2× PSAM (ISO 7816 standard)
Interfaces
1× USB Type-C (USB 2.0) · 1× MDB Slave · 1× LAN 100 Mbps · 1× Multi-port (RS232 + MDB Master + 6× Digital IO) · 1× SMA external 4G antenna
Audio
Speaker
Power
DC 9V – 48V
Protection
IP65 (dustproof & waterproof) · IK09 (impact resistance)
Environment
Operating -20°C to 60°C · Storage -30°C to 70°C · Humidity 5–95% RH (non-condensing)
Certifications
CE · RoHS · FCC · GMS
The CM25 combines on-screen NFC for contactless payments, a compact 107.77×74.57×32.05mm body for embedded installation, MDB Slave/Master interfaces for vending machines, and wide-range DC 9V–48V power — making it the ideal unattended payment module for vending, EV charging, transit, and kiosk applications.
Yes. CM25 runs Safedroid OS based on Android 16.0 with GMS certification and fully supports SoftPOS, enabling the device itself to act as a contactless card reader without additional hardware.
The default European version supports FDD-LTE B1/B3/B7/B8/B20/B28, TDD-LTE B38/B40/B41, WCDMA B1/B8, and GSM 900/1800 MHz. Wi-Fi covers dual-band 2.4 GHz and 5 GHz (802.11 a/b/g/n/ac) with Bluetooth 5.0. Custom band configurations are available — please contact our sales team.
Absolutely. The wide-voltage input of DC 9V–48V makes CM25 compatible with most vending machines, EV chargers, and kiosk power supplies without additional converters.
