SoftPOS + EMV/PCI Dual Version
Large Screen of 5.0 inch TFT IPS LCD
Resolution 1280×720
Pin on Glass NFC

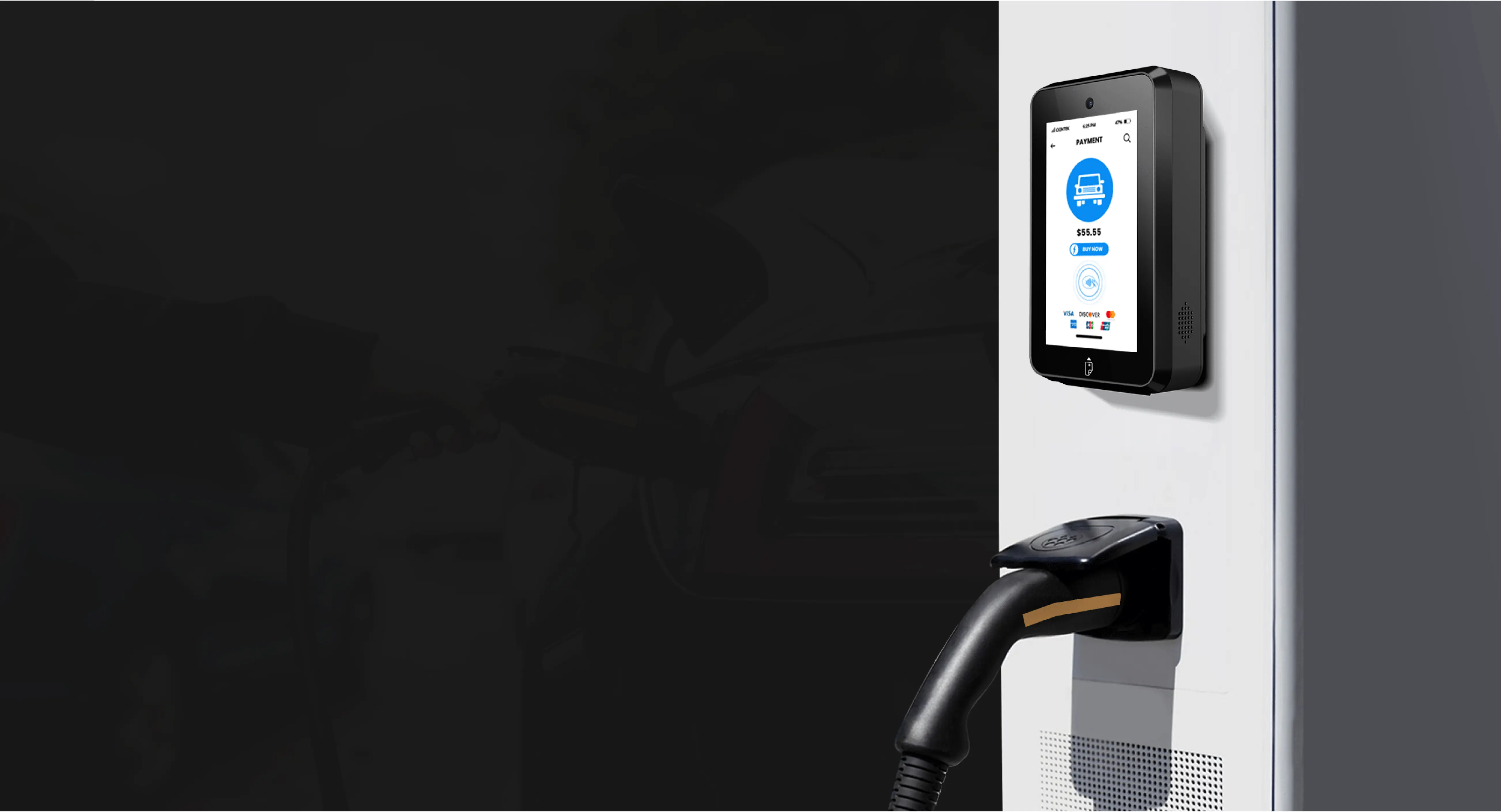

Designed to perform in the harshest of outdoor environments.
IP65
IK09
ATEX

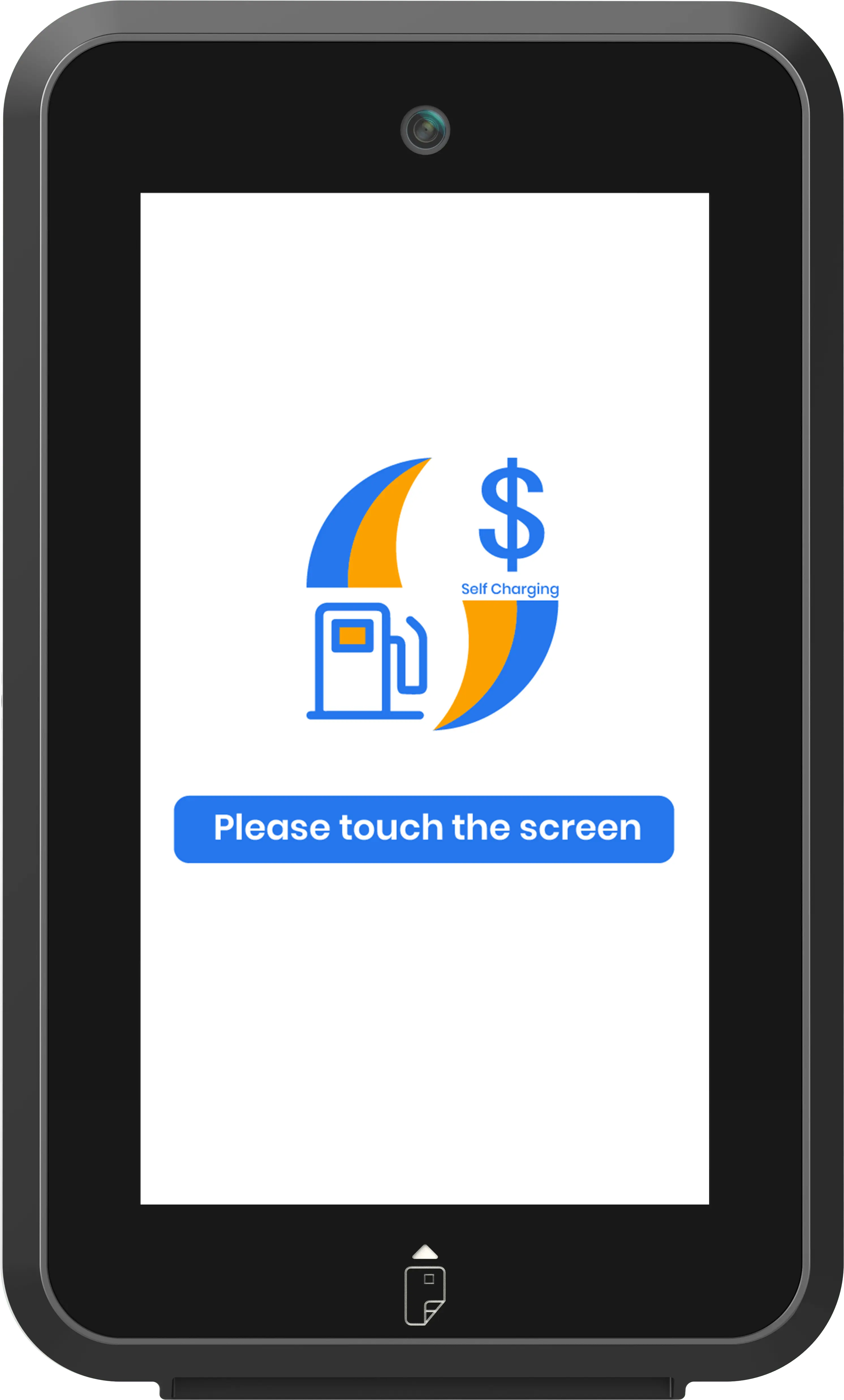

The Android-based platform sustains
endless possibilities
Android 14.0
Quad-Core ARM Cortex-A53 2.0GHz
2GB RAM + 32GB ROM
5" TFT IPS LCD, 1280×720

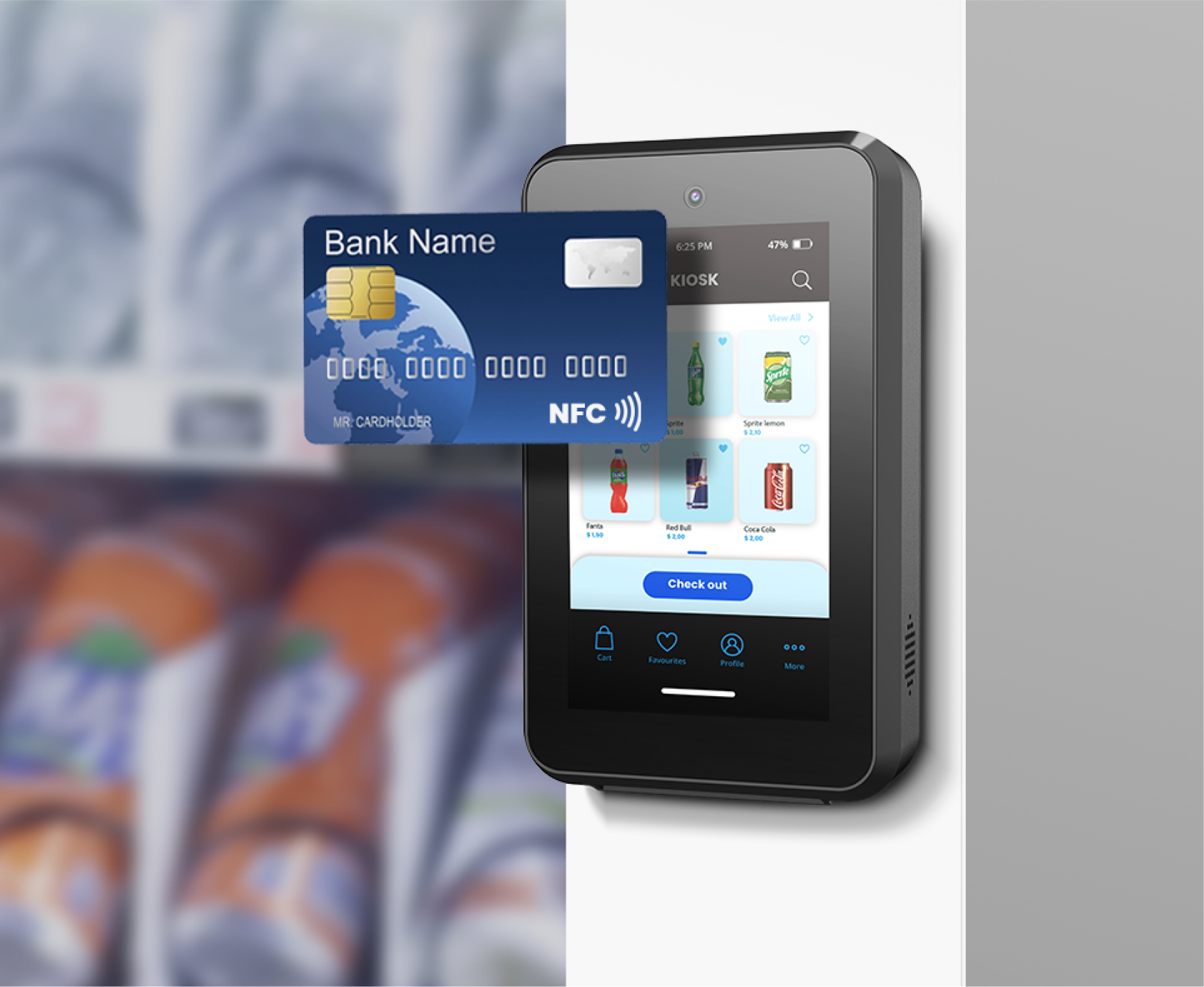

Chip/IC, NFC Contactless
5MP Front Camera
1× Reset Key, 1× Service Key
GPS (A-GPS), BeiDou, Glonass
Support
PCI PTS 6.X, EMV L1 & L2, EMV CL L1,
Paypass, Paywave, TQM
Optional: Amex, CUP qUICS, D-PAS
Wi-Fi IEEE 802.11 a/b/g/n (2.4GHz & 5GHz)
2G / 3G / 4G
Bluetooth

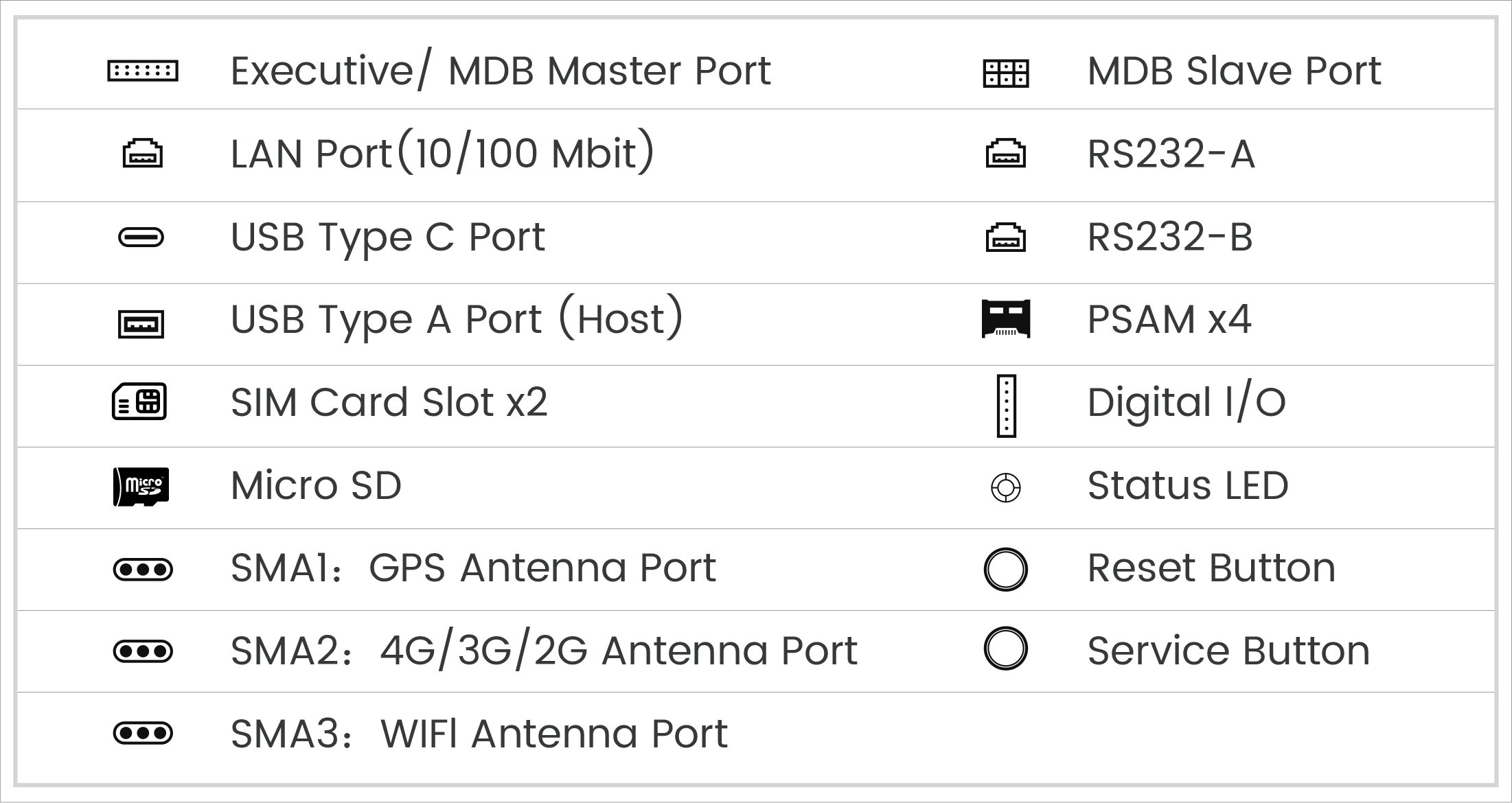

1× Micro SD slot
2× Micro SIM slots
4× PSAM slots (ISO7816)

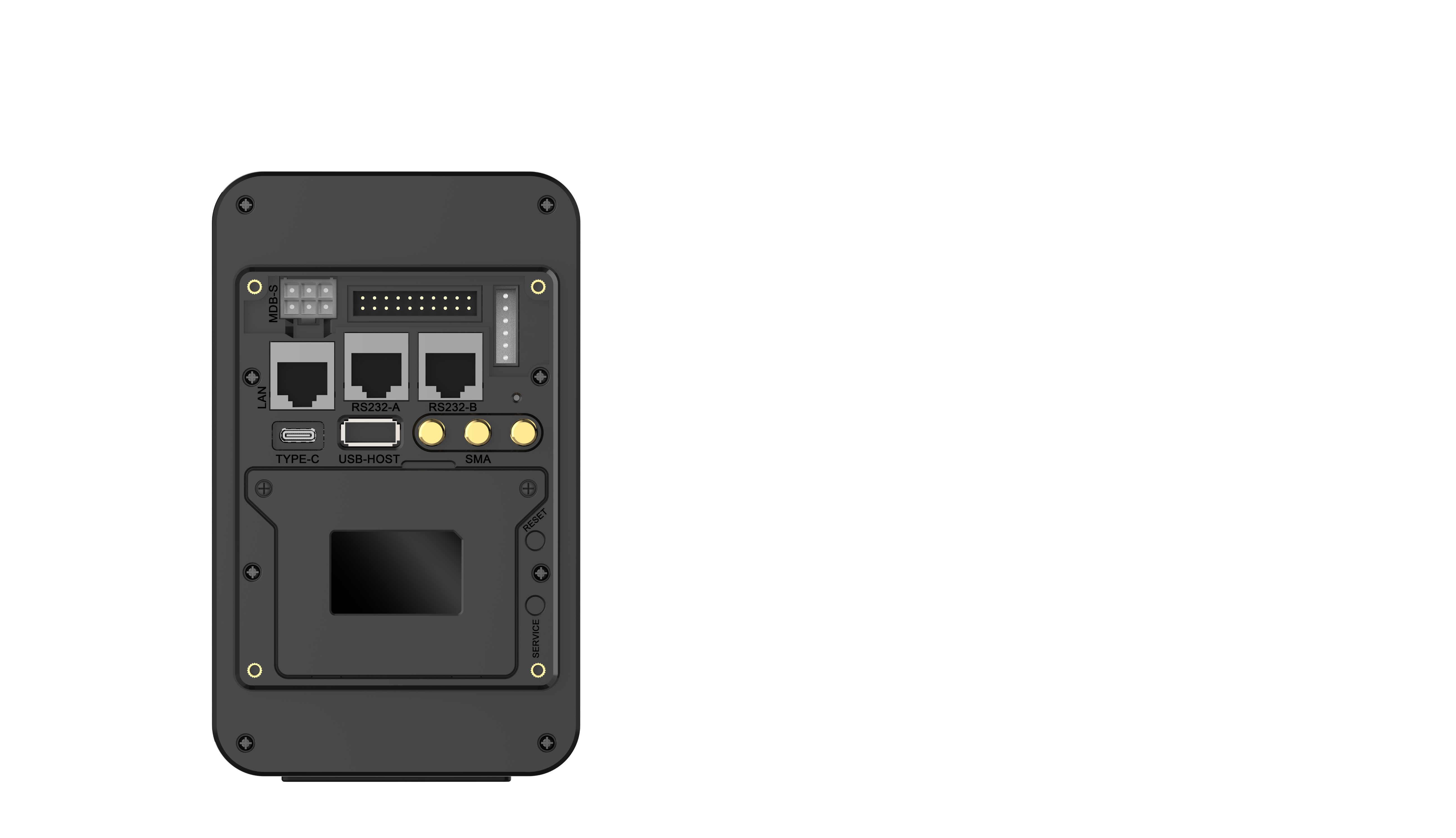

USB Type-C, 5V/2A
2× RS232
1× LAN (Ethernet 100Mbps)
1× USB 2.0 Type-C
1× USB 2.0 Type-A HOST
CE, RoHS, FCC, ATEX
IP54, IK09
Operating Temp: -10°C to 50°C
Storage Temp: -20°C to 70°C
Humidity: 5% to 95% (non-condensing)
Latest Android OS helps integrator to enjoy the futureproof ecosystem; Elegant design with sufficient functions bring users smooth experience; Dual modes of SoftPOS plus EMV/PCI offers flexibility for various merchants scale.

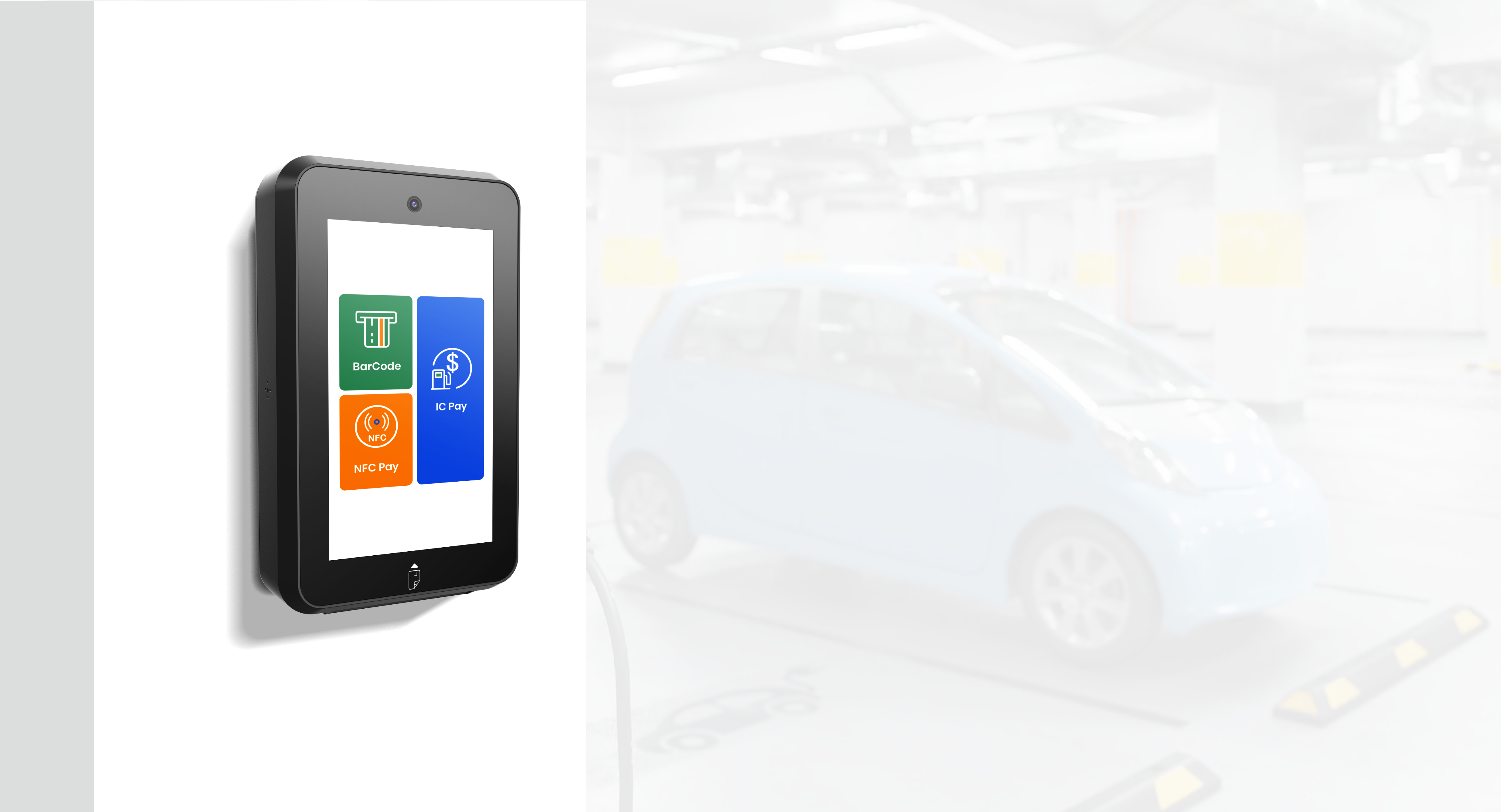

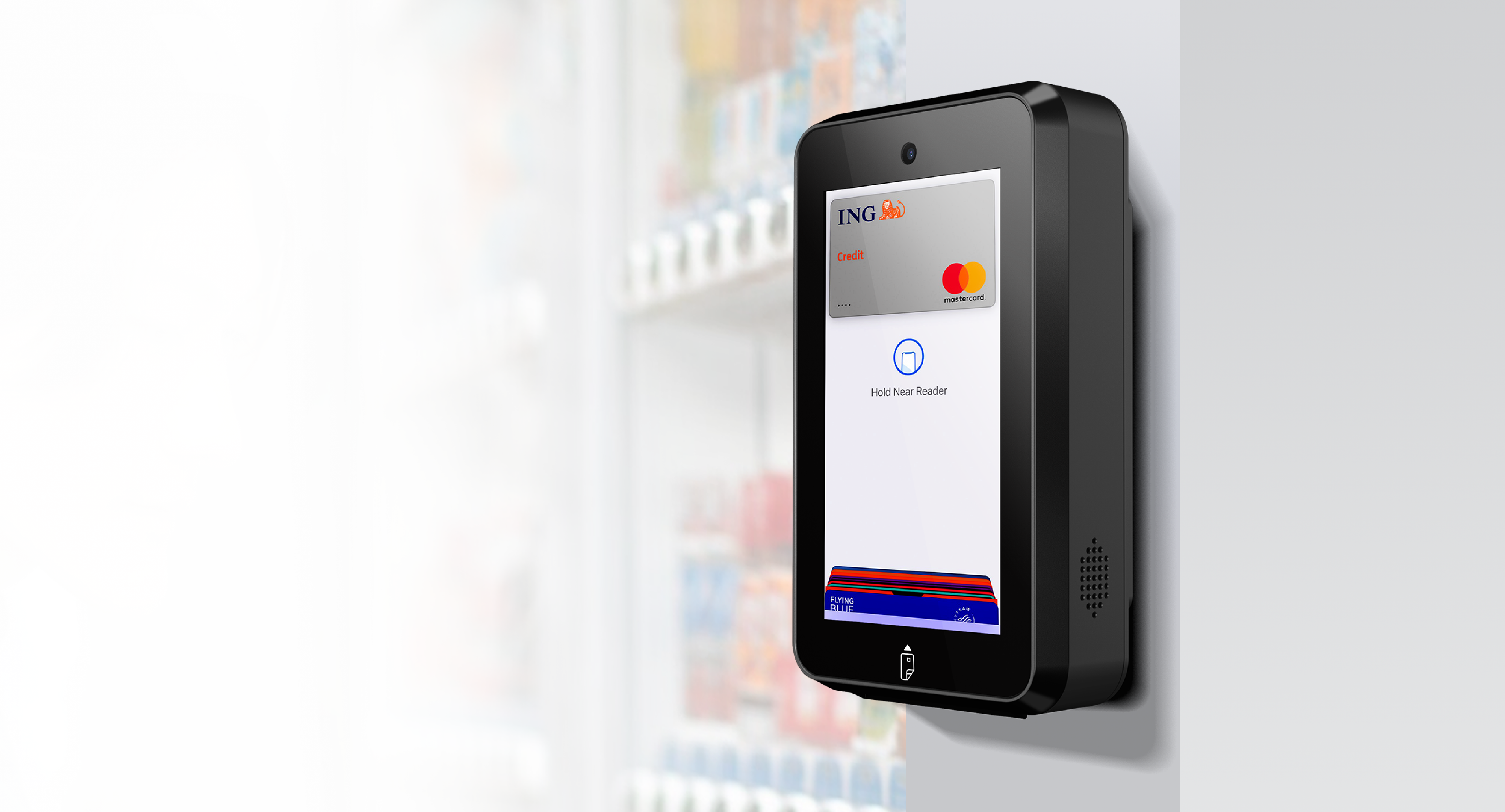

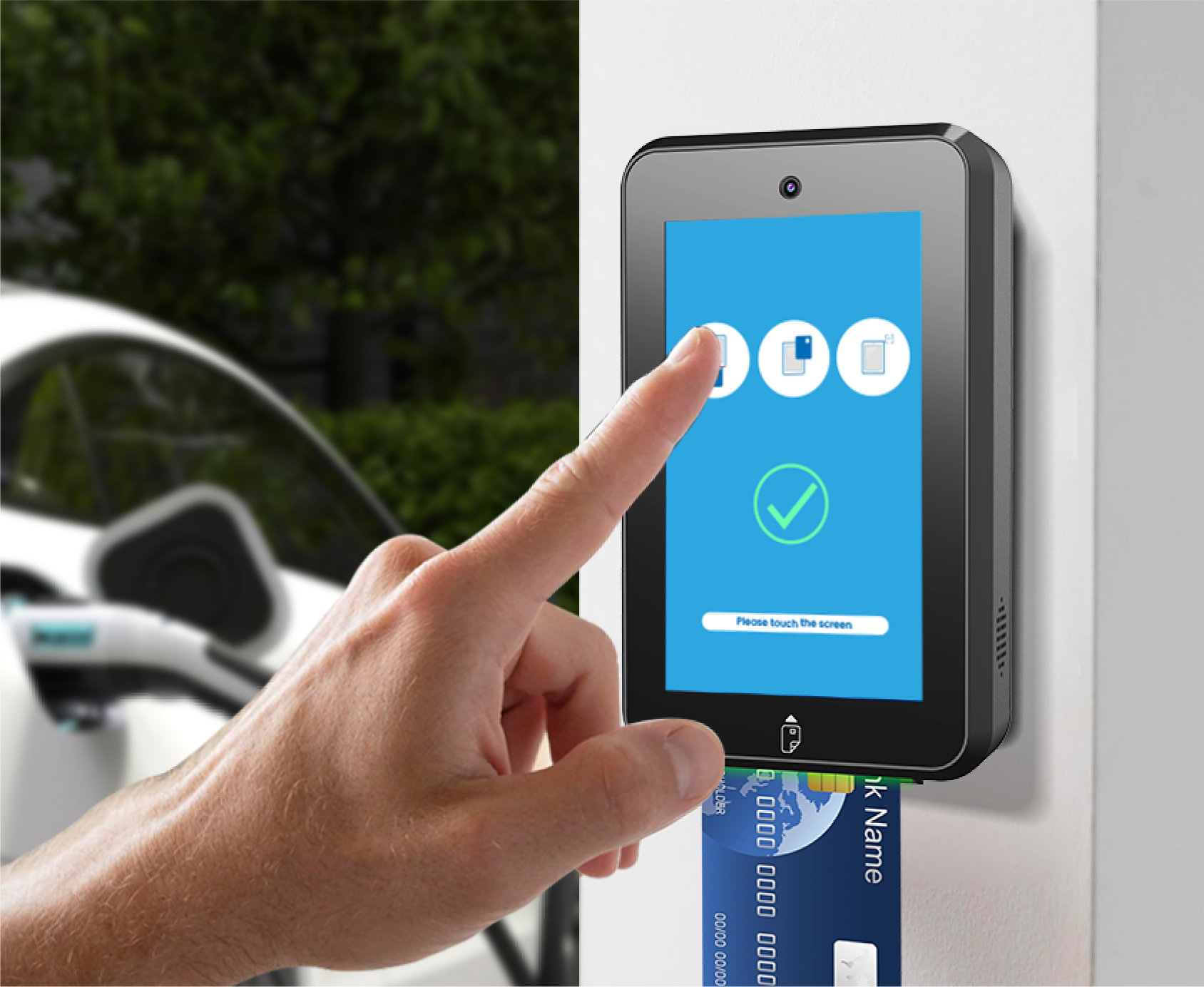

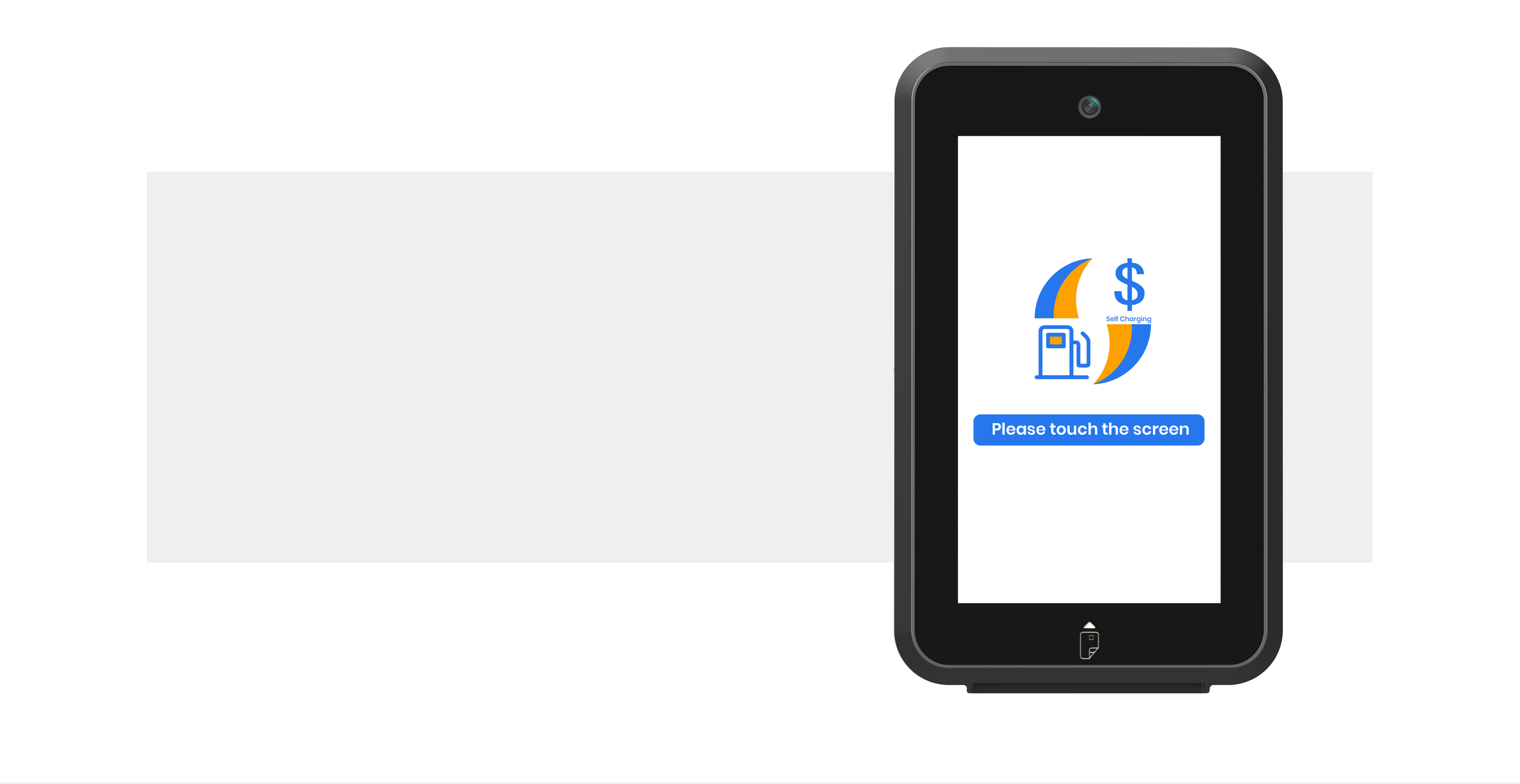

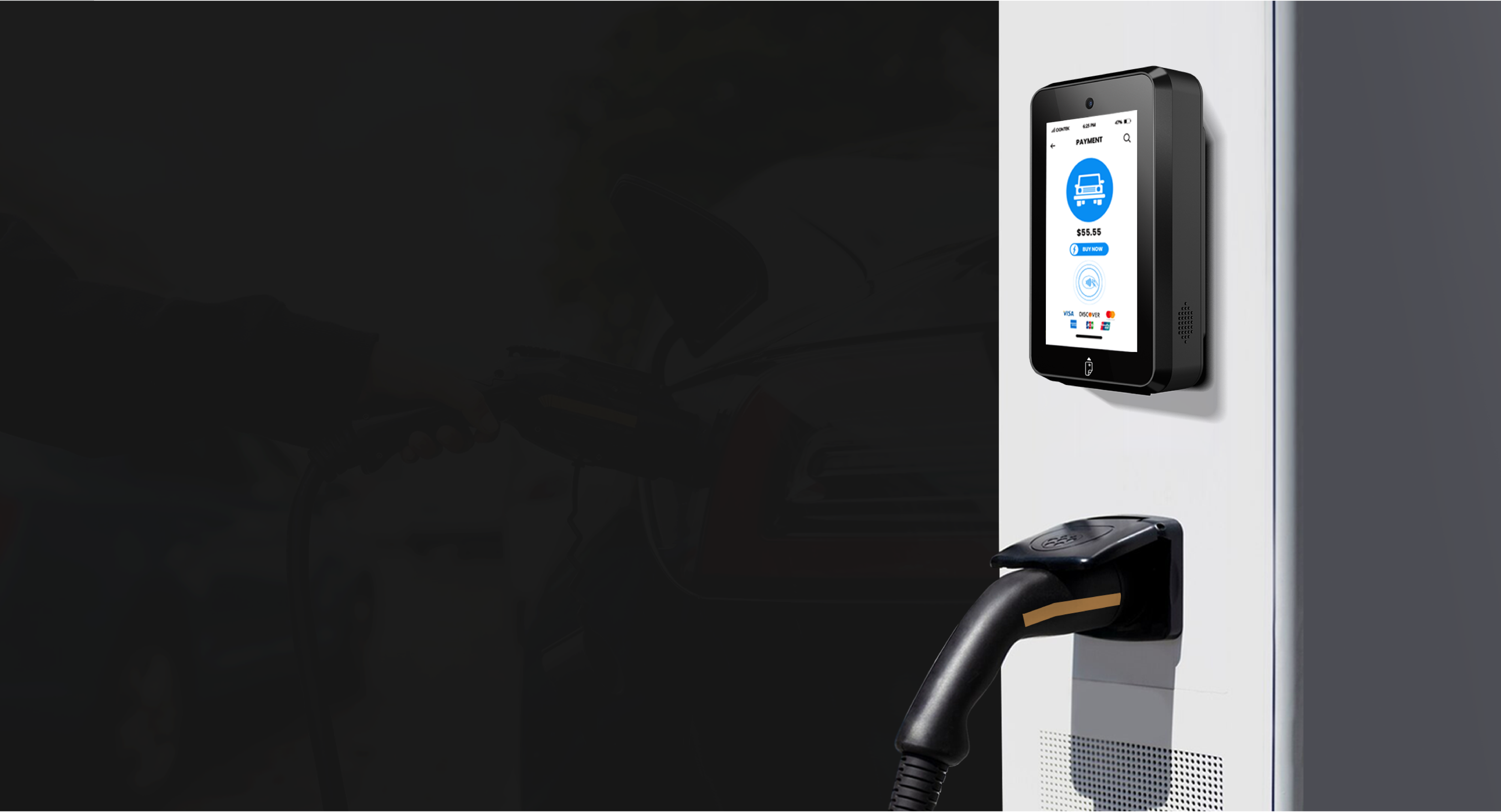

CM30 has both payment certified and non-certified model, it applies to all scenarios such as ticketing, retail vending kiosk, petrol station, access control and etc.

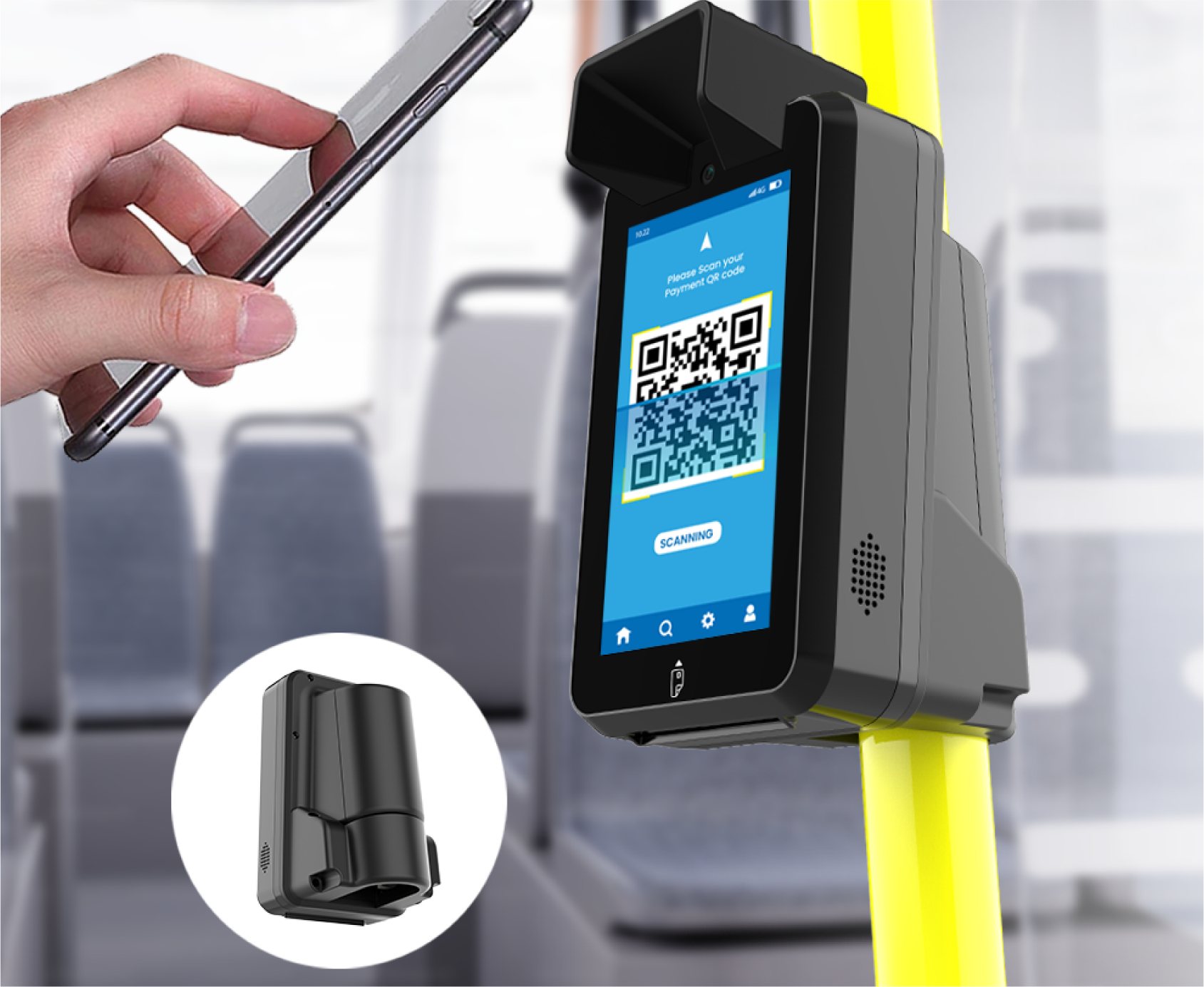

We have developed bus pole fixing kit specially for this model, please contact our sales for more information.
